Morningstar MeterHub HUB-1 — Link Multiple TS & TS‑MPPT Controllers

Morningstar MeterHub HUB-1 — Link Multiple TS & TS‑MPPT Controllers

4Boats

£137.35
£137.35
Sale Sold out
Shipping calculated at checkout.

Description

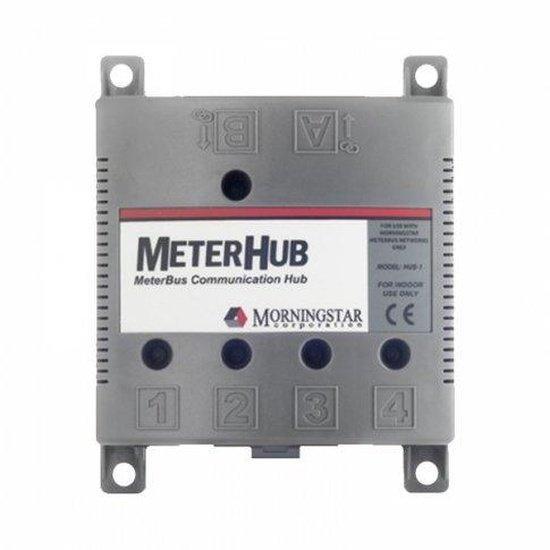

The MeterHub HUB-1 links up to four Morningstar controllers to a single remote meter while electrically isolating each controller to protect the network.

  • Links up to 4 controllers to one remote meter and electrically isolates each controller to prevent grounding faults
  • Including the following: TriStar 45 A, TriStar 60 A, TriStar MPPT 30 A, TriStar MPPT 45 A, TriStar MPPT 60 A
  • MeterHub specifications: Self-consumption (per port): 8 mA; Port connections: RJ-11, gold plated; Enclosure: Indoor rated; Minimum isolation (ports 1-4): 500 V
  • Operating temperature: -40°C to +60°C (-40°F to +140°F); Storage temperature: -55°C to +85°C (-67°F to +185°F)
  • Includes 5 x 1 m RJ-11 cables (each 1 m / 3.28 ft)
  • Dimensions: 135 x 108 x 37 mm (5.31 x 4.25 x 1.46 in); Weight: 190 g (0.42 lb)
  • Covered by a 5 year warranty; available documentation: Instruction manual for Morningstar MeterHub HUB-1 and product datasheet

Compatible with TriStar, TriStar MPPT, SunSaver MPPT and ProStar (Gen 3) controllers; TriStar TS-RM-2 remote meter sold separately.

The MeterHub HUB-1 links up to four Morningstar controllers to a single remote meter while electrically isolating each controller to protect the network.

  • Links up to 4 controllers to one remote meter and electrically isolates each controller to prevent grounding faults
  • Including the following: TriStar 45 A, TriStar 60 A, TriStar MPPT 30 A, TriStar MPPT 45 A, TriStar MPPT 60 A
  • MeterHub specifications: Self-consumption (per port): 8 mA; Port connections: RJ-11, gold plated; Enclosure: Indoor rated; Minimum isolation (ports 1-4): 500 V
  • Operating temperature: -40°C to +60°C (-40°F to +140°F); Storage temperature: -55°C to +85°C (-67°F to +185°F)
  • Includes 5 x 1 m RJ-11 cables (each 1 m / 3.28 ft)
  • Dimensions: 135 x 108 x 37 mm (5.31 x 4.25 x 1.46 in); Weight: 190 g (0.42 lb)
  • Covered by a 5 year warranty; available documentation: Instruction manual for Morningstar MeterHub HUB-1 and product datasheet

Compatible with TriStar, TriStar MPPT, SunSaver MPPT and ProStar (Gen 3) controllers; TriStar TS-RM-2 remote meter sold separately.
