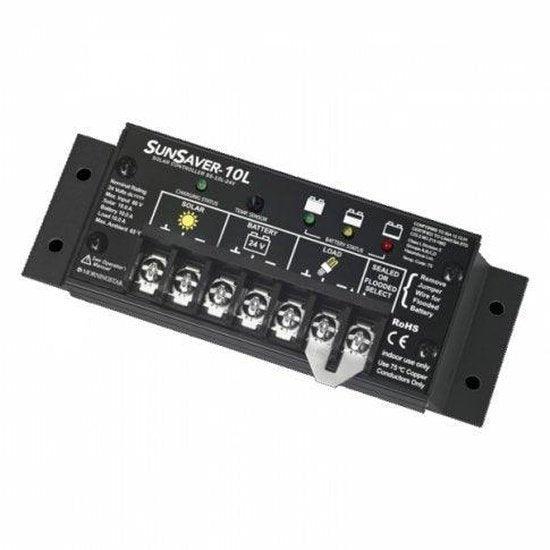

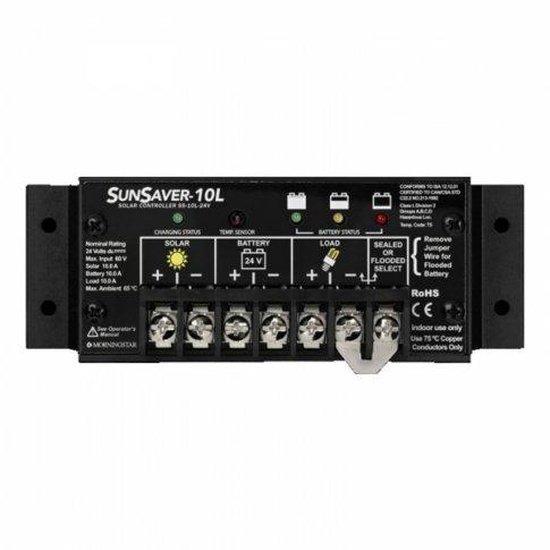

Morningstar SunSaver 10A 24V solar charge controller | 4Boats

Robust 10 A, 24 V solar charge controller designed for motorhomes, boats, telecom and hazardous-site installations.

• Nominal battery voltage: 24 V. Rated charging and load current: 10 A.
• Solar input voltage up to 60 V (PV open-circuit). Self-consumption < 8 mA.
• Full range of protection functions: overload, short circuit, high voltage, reverse polarity, high temperature, lightning and transient surges, reverse current at night.
• Certified for use in hazardous locations: Class 1, Division 2, Groups A, B, C, D.
• Dead battery recovery minimum voltage: 1 V. Automatic load control and slow-switching mode for sensitive instrumentation.
• Extremely high reliability with a failure rate < 0.1% and a long 5-year warranty.
• Working temperature: -40°C to +60°C. Humidity: 100% non-condensing. Enclosure: IP10 (indoor).
• Size: 152 x 55 x 32 mm (5.98 x 2.17 x 1.26 in). Weight: 230 g (8.1 oz). Mounting holes for easy installation.

Compatible with sealed and flooded lead-acid batteries. Data sheet for SS-10 L-24 V Morningstar SunSaver controller and instruction manual available for download.
