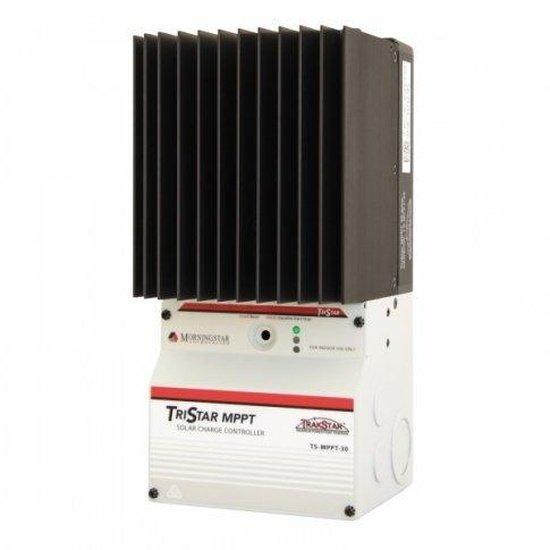

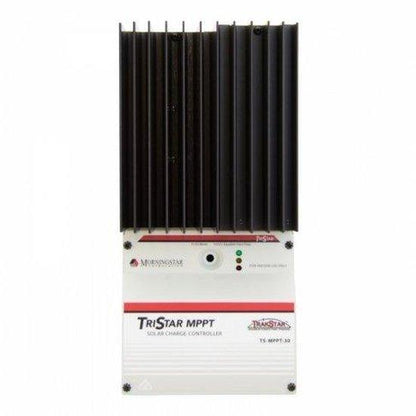

Morningstar TriStar 30A MPPT Solar Charge Controller 12–48V | 4Boats

High-performance 30 A MPPT solar charge controller for 12–48 V battery banks, ideal for caravans, motorhomes, boats and yachts.

• Nominal battery voltages: 12 V / 24 V / 36 V / 48 V. Maximum output current: 30 A.
• Maximum allowed input solar power: 400 W (12 V), 800 W (24 V), 1200 W (36 V) and 1600 W (48 V).
• Industry-leading TrakStar MPPT with up to 99% peak efficiency for faster I–V curve sweeping and improved energy harvest in low light or shading.
• Full range of protection functions: overload, short circuit, high voltage, reverse polarity, high temperature, lightning and transient surges, and reverse current at night.
• Extremely high reliability with large heat sink and fanless design for robust thermal performance at high operating temperatures.
• Controller specifications: Minimum voltage to operate 8 V; self-consumption < 2.7 W; working temperature -40°C to +45°C (-40°F to 113°F); humidity 100% non-condensing.
• Enclosure IP20 (indoor and vented). Size: 291 x 130 x 142 mm (11.46 x 5.12 x 5.59 in). Weight: 4.14 kg (9.13 lb).
• Extensive communications for custom settings, data logging and remote monitoring with up to 200 days of logged data; datasheet and instruction manual available to download.

Works with sealed, gel and flooded batteries; compatible with optional remote LCD digital meters for display and remote control.
