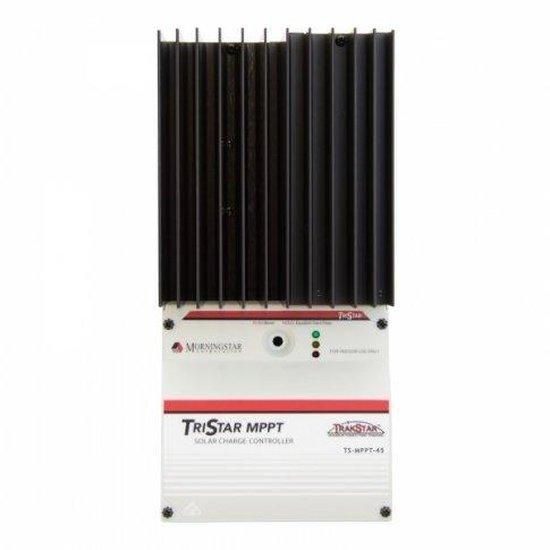

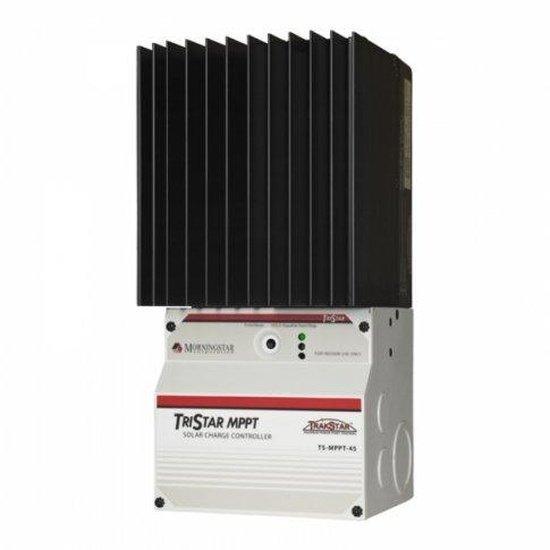

Morningstar TriStar 45A MPPT solar charge controller for caravans

High-performance Morningstar TriStar 45 A MPPT solar charge controller for 12–48 V battery banks, ideal for caravans, motorhomes, boats and yachts.

• TrakStar MPPT technology for fast maximum power point tracking and industry‑record 99% peak efficiency to maximise solar harvest.
• Nominal battery voltage: 12 V / 24 V / 36 V / 48 V; maximum output current: 45 A; minimum operating voltage: 8 V.
• Maximum PV input power: 600 W (12 V), 1200 W (24 V), 1800 W (36 V), 2400 W (48 V).
• Full range of protection functions: overload, short circuit, high voltage, reverse polarity, high temperature, lightning and transient surge protection and reverse current protection at night.
• Extremely high reliability with large heatsink, fan‑less design and robust thermal layout for high operating temperatures.
• Low self‑consumption:
• Environmental & mechanical: operating temperature -40°C to +45°C (-40°F to +113°F); humidity 100% non‑condensing; enclosure IP20 (indoor, vented); size 291 x 130 x 142 mm (11.5 x 5.1 x 5.6 in); weight 4.14 kg (9.13 lb).
• Works with sealed, gel and flooded batteries; easy to install with fully automatic charging, fault recovery and compatibility with Morningstar remote LCD meters. Data sheet and instruction manual available to download.

Mount in a ventilated indoor location (IP20); refer to the datasheet and instruction manual for wiring, mounting and compatibility notes.
