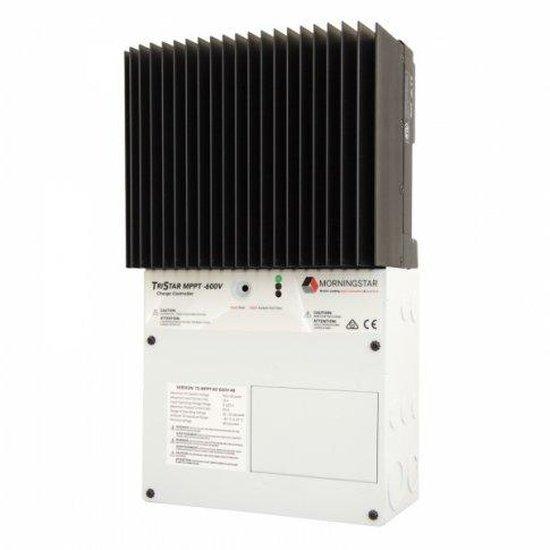

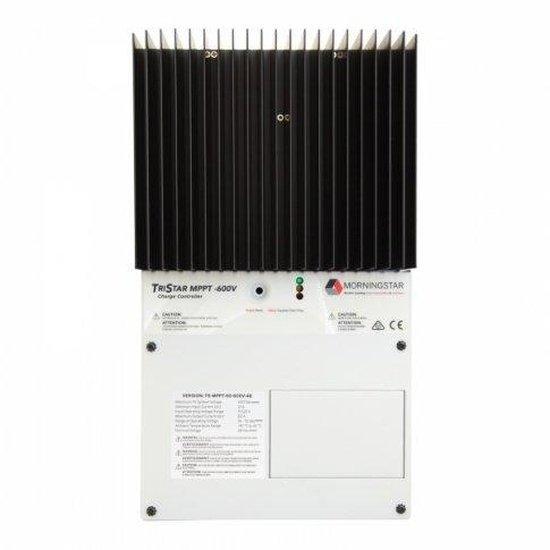

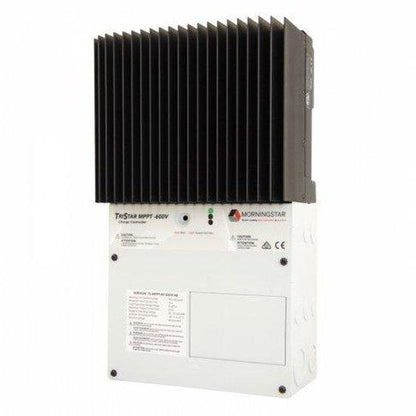

Morningstar TriStar 60A MPPT 600VDC Solar Controller (48V) | 4Boats

High-voltage MPPT charge controller for large off-grid solar systems, designed to maximise battery life and energy harvest.

• Model: TS-MPPT-60-600 V-48
• Maximum input voltage 600 V DC (reduces voltage drop and wiring costs); accepts PV Voc up to 525 V
• Peak efficiency 97.9% with low self-consumption < 3.5 W
• Solar input power 3,200 W at 48 V; nominal system voltage 48 V; maximum output current 60 A; battery operating voltage range 16–72 V
• TrakStar MPPT technology rapidly sweeps the I–V curve to maximise energy harvest and suit large arrays
• Range of electronic protection functions: overload, short circuit, high voltage, reverse polarity, high temperature, lightning and transient surges, reverse current at night
• Extensive communications and remote monitoring, internet access, up to 200 days data logging; compatible with TriStar Remote Meter
• Robust thermal design with no cooling fans for high reliability; operating temperature −40 °C to +45 °C (−40 °F to 113 °F); humidity non‑condensing; enclosure IP20 (indoor, vented)
• Dimensions 392 x 221 x 149 mm (15.4 x 8.7 x 5.9 in); weight 8.98 kg (19.8 lb); mounting hardware included; data sheet TS-MPPT-60-600 V-48 available to download

Suitable for indoor vented installation — ensure correct DC isolators and earthing when installing.
