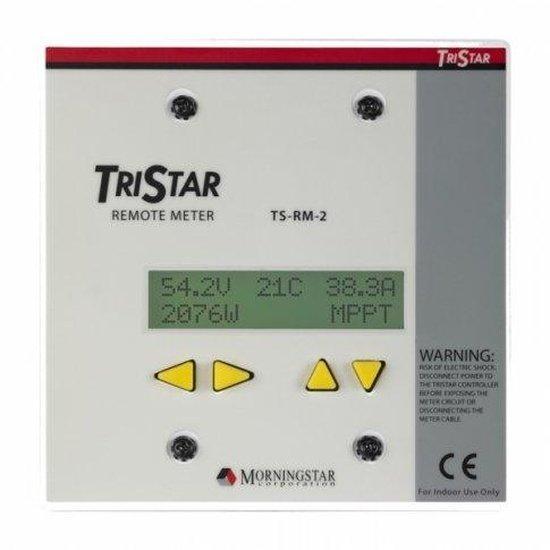

Morningstar TriStar TS-RM-2 remote LCD meter | 4Boats

The TS-RM-2 remote backlit LCD meter for Morningstar TriStar controllers provides a clear, easy-to-use remote display for caravans, motorhomes and boats where batteries are hard to access.

• Extremely high reliability with a long 5 year warranty.
• Easy to install and use; four directional pushbuttons and a clear backlit LCD for smooth navigation.
• Suitable for all TriStar controllers: TS-series (TS-45, TS-60), TS-MPPT series and TS-MPPT-60-600 V series.
• Displays battery voltages, charge priority and state of charge; can show individual controller data or aggregate up to 15 TriStar controllers via a Morningstar MeterHub (sold separately).
• Includes 30 m (98.4 ft) cable that plugs into the controller RJ-11 (6-position) connector for simple remote installation.
• Self-consumption: < 0.5 W (42.5 mA with backlight on). Operating temperature: -40°C to +60°C (-40°F to +140°F).
• Plate with mounting holes included. Size: 116 x 116 mm (4.6 x 4.6 in). Weight: 180 g (without cable) (6.35 oz).
• Documentation available to download: Data sheet for TS-RM-2 Morningstar TriStar LCD remote meter and Instruction manual.

Can be purchased with any TriStar controller or added later; MeterHub required to link multiple controllers for aggregated display.
