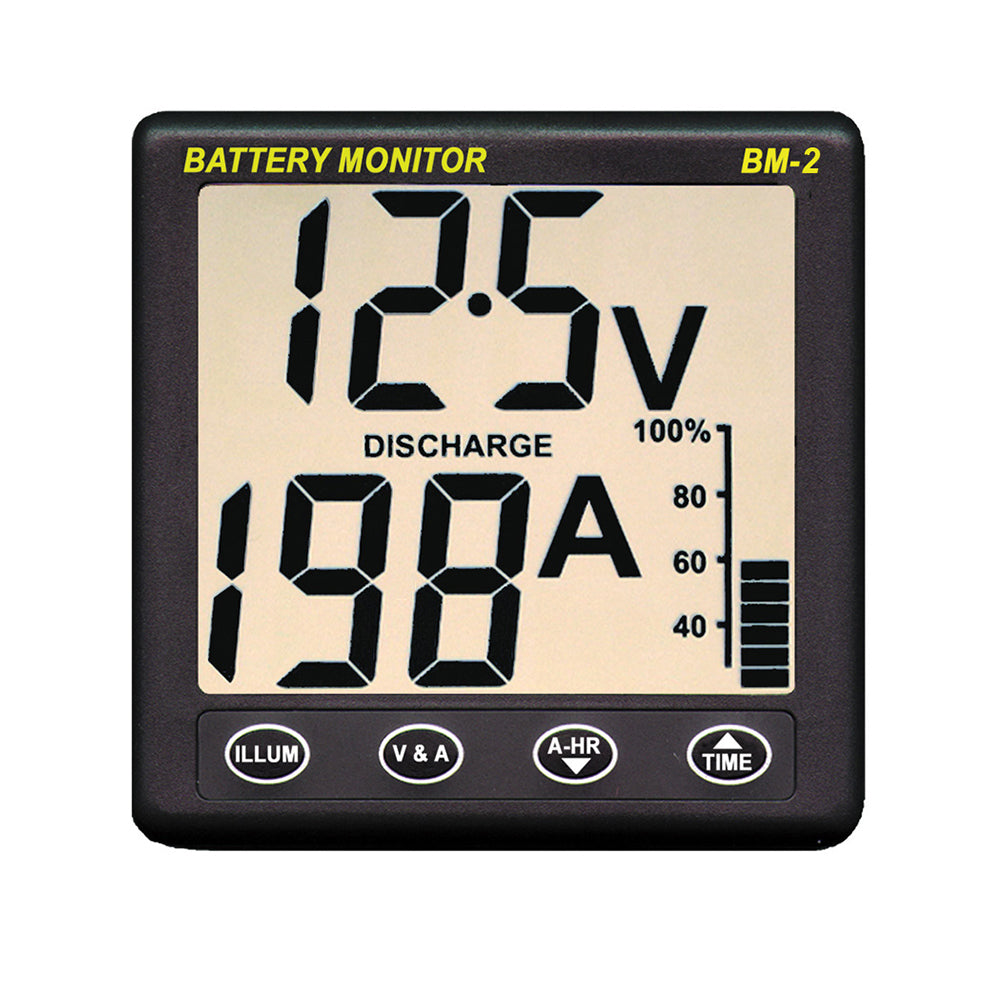

NASA Battery Clipper BM-2 12VDC Battery Monit | 4Boats

Compact 12 V DC battery monitor that measures voltage, current and temperature in real time, calculates state of charge and remaining capacity, warns at low voltage and includes a resettable amp‑hour counter plus a second input for starter battery monitoring.

• Supply voltage 8–16 V DC
• Supply current 1.5 mA
• Battery capacity range 5–999 Ah
• Load current 199 A maximum
• Charge current 199 A maximum
• Shunt standard 50 mV @ 200 A
• AMP Cables supplied: 200 A shunt link to M8 ring terminal; 5 m (16.4 ft) fused cable from display to battery, fitted with ring terminals for shunt fuse holder and M8 ring terminal
• Display: 110 mm square case (4.3 in), high‑contrast backlit LCD for night viewing
• Minimum‑voltage visual alarm, 4‑key operation, amp‑hour or time‑to‑run readouts
