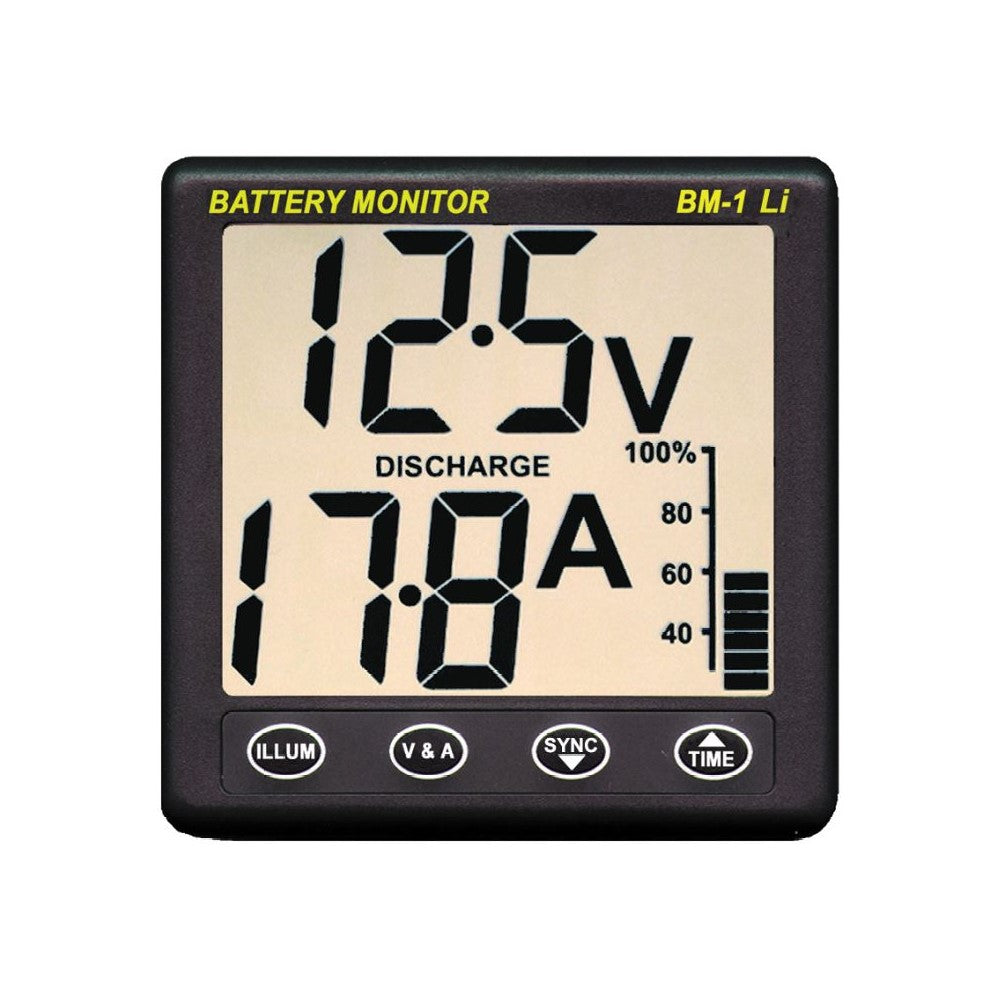

Nasa Clipper BM-1 LiFePO4 Battery Monitor | 4Boats

The Nasa Clipper BM-1 Lithium (LiFePO4) Battery Monitor is a compact, reliable display for 12 Volt lithium iron phosphate systems, delivering real‑time voltage, current, state of charge and time‑to‑full or remaining runtime to help extend battery life.

• Voltage range: 8–16 Volts DC
• Supply current: 1.5 milliamps (mA)
• Battery capacities supported: 20–600 Amp‑hours (Ah)
• Continuous load current: 100 Amps maximum
• Continuous charge current: 100 Amps maximum
• Shunt standard: 50 millivolt @ 100 Amps
• Displays voltage, charge/discharge current, state of charge and time to full/remaining
• Includes BM1‑Li display, 100 A shunt, 5 m (16.4 ft) fused battery cable and Clipper display cover
