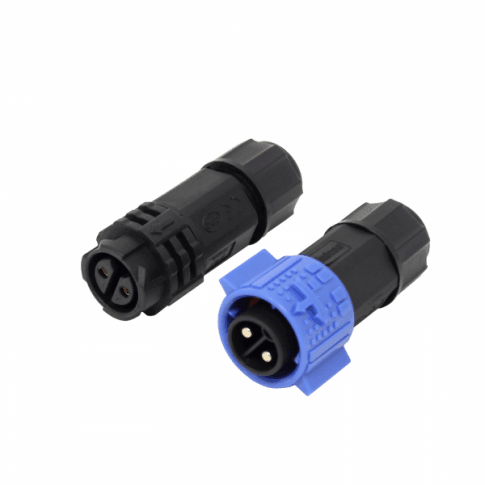

PAIR OF 2-Pin IP67 Waterproof Locking Connectors 300V 20A | 4Boats

Durable pair of 2‑pin IP67 waterproof locking connectors designed for harsh environments including marine and outdoor solar applications.

• Number of contacts/pins: 2; rated for 300 V, 20 A continuous.
• Withstanding voltage: 1500 V.
• Protection level: IP67 — dust tight and water immersion resistant.
• Flame‑resistant rating: UL94‑V0.
• Cable gauge: 1.0–4.0 mm² (≈ 18–11 AWG); suitable for dual‑core round cables only.
• Cable outer diameter: Φ4.5–Φ11 mm (0.18–0.43 in).
• Internal connector pin ends are designed for soldering to the cable for the best performance.
• Operating temperature: −40°C to 105°C (−40°F to 221°F).

Ideal for outdoor lighting, marine equipment, PV systems and CCTV. Ensure correct wire preparation and soldering; not suitable for single‑core conductors.
