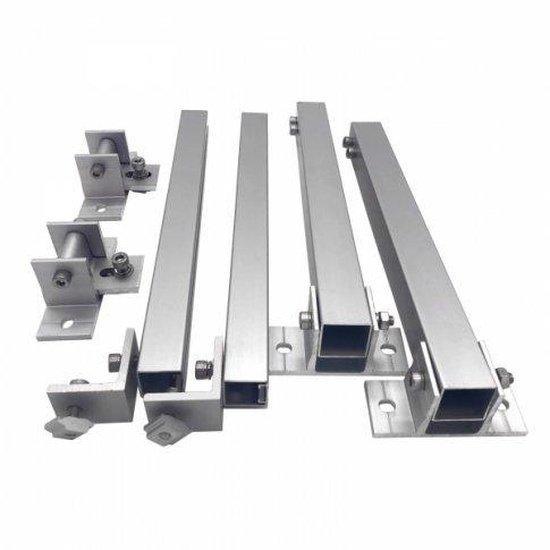

Pair Photonic Universe Adjustable Solar Panel Tilt Brackets 390–670 mm

Adjustable metal brackets (also called tilt legs or tilt mounts) for tilting a solar panel; variable length 390–670 mm (15.4–26.4 in) for seasonal optimisation and fixed installations on roofs and flat surfaces.

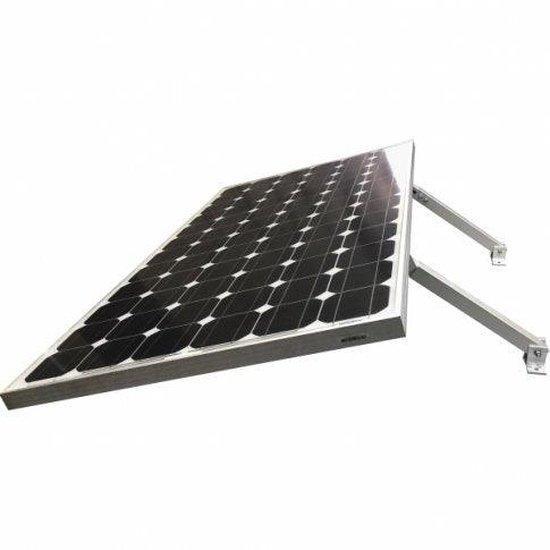

• Suitable for mounting a solar panel at a 10–60° angle to the surface.
• Adjustable length 390–670 mm (15.4–26.4 in) to choose the best tilt for each season and location.

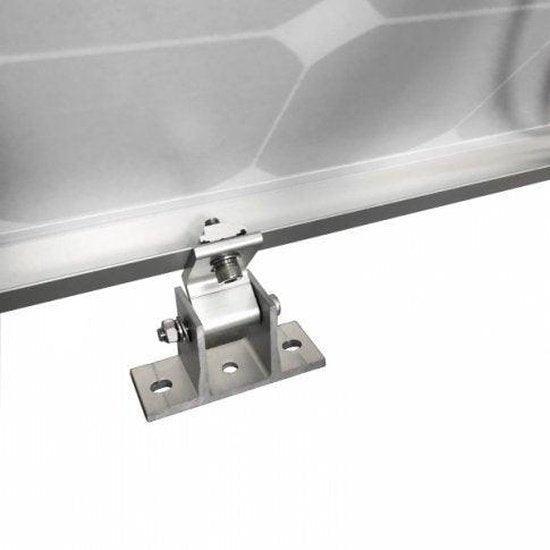

• Rubber pads and stainless screws included for secure, waterproof fixing to the mounting surface.
• Designed for fixed installations on roofs and flat surfaces; ideal for marine and land-based use.
• Unsuitable for solar panels with a frame depth of less than 30 mm (1.18 in).
• For windy areas and large solar panels, an additional pair of brackets is recommended to increase strength and reduce pressure on the panel frame.
• The stated 10–60° range is the maximum possible; actual adjustability depends on the brackets' fixing position relative to the panel frame (fixing outside the panel area yields narrower angles; fixing within the panel area yields wider angles).

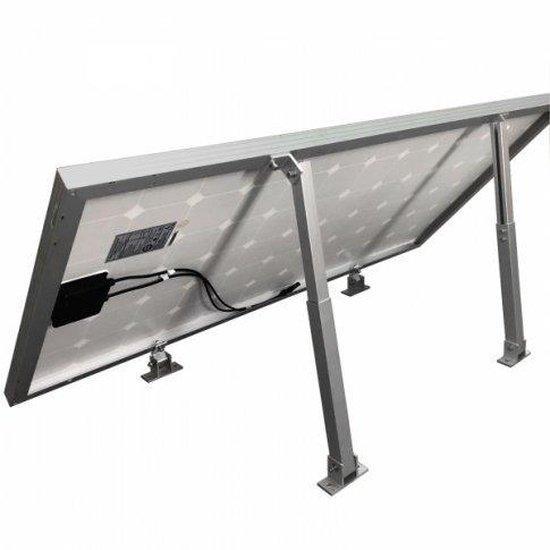

Installation is straightforward: fix the short and long supports to the panel frame, mount the short supports to the surface with the supplied rubber pads and screws, adjust the long supports to the chosen angle and secure. User manual for Photonic Universe adjustable tilting metal brackets (MBRTILT01) and tilt angle calculator are available to download for guidance.
