0.5m 4.0mm cable with 50A battery plug for folding solar kits | 4Boats

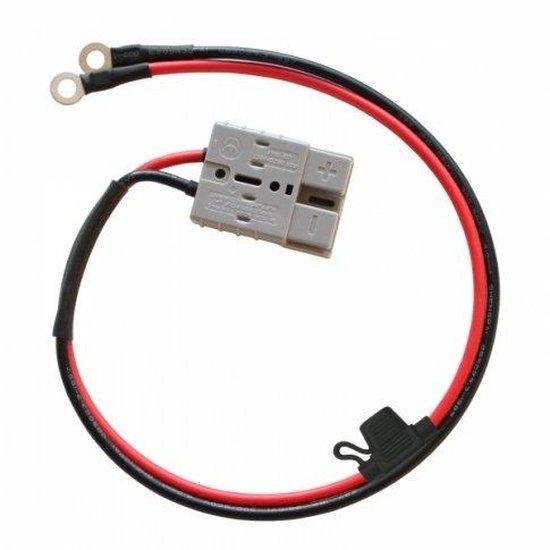

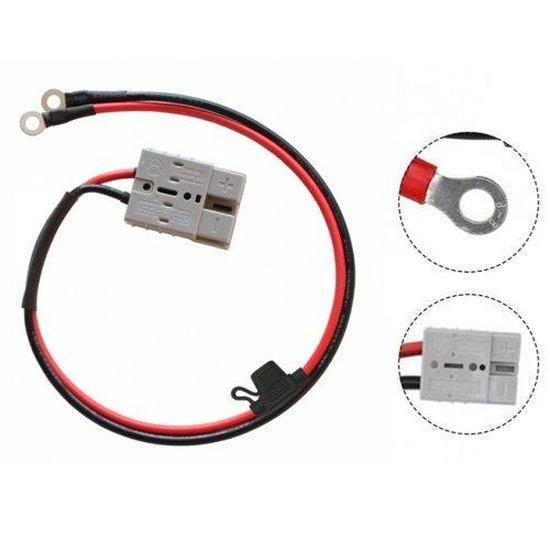

0.5 m tail lead for 12 V folding solar kits with a 4.0 mm² conductor, fitted with a 50 A SB50/Anderson-compatible half plug (grey), a 10 A inline fuse and 8 mm (M8) ring terminals.

• Length: 0.5 m (1.6 ft)
• Cable: 4.0 mm² conductor

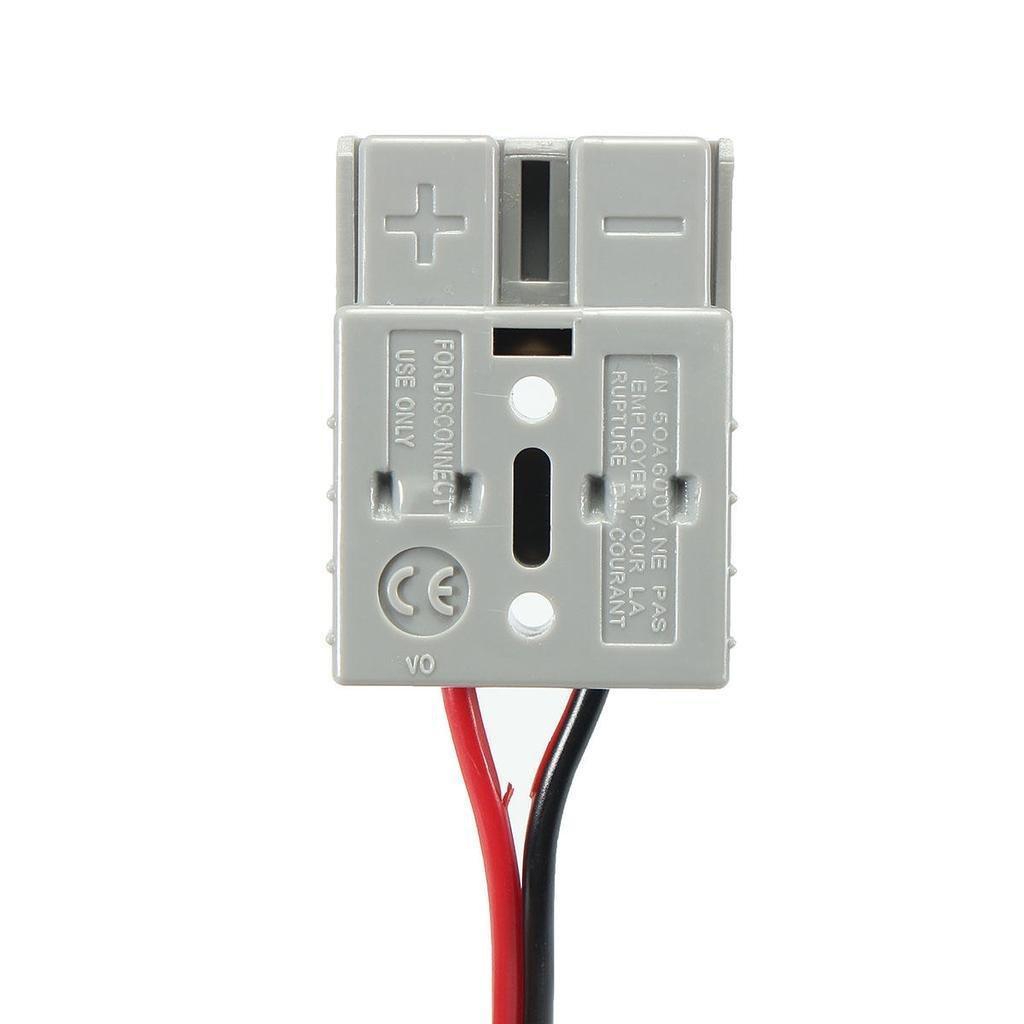

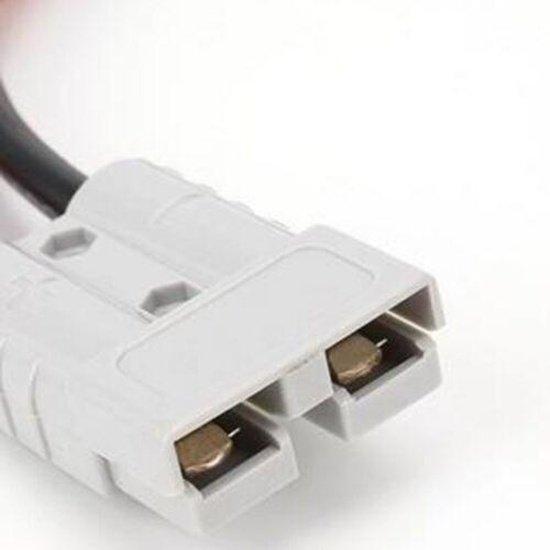

• Plug: 50 A battery plug — SB50/Anderson-compatible (one half supplied, grey)
• Inline fuse: 10 A (replaceable)
• Ring terminals: 8 mm (M8) bore ring terminals for permanent battery connection
• Suitable for 12 V folding solar charging kits rated 40–150 W (note: with a 10 A inline fuse the usable power at 12 V is limited to about 120 W; ensure controller/fuse selection matches your system)
• Designed as a compact replacement for 0.5 m tail leads with crocodile clips when space is limited
• Use the ring terminals for permanent wiring in a battery box and connect/disconnect the solar kit with the 50 A plug

Ensure correct polarity when fitting and replace the inline fuse with the same rating. Keywords: Anderson SB50, fused tail lead, M8 ring terminals, battery box cable, solar panel lead, ring lugs.
