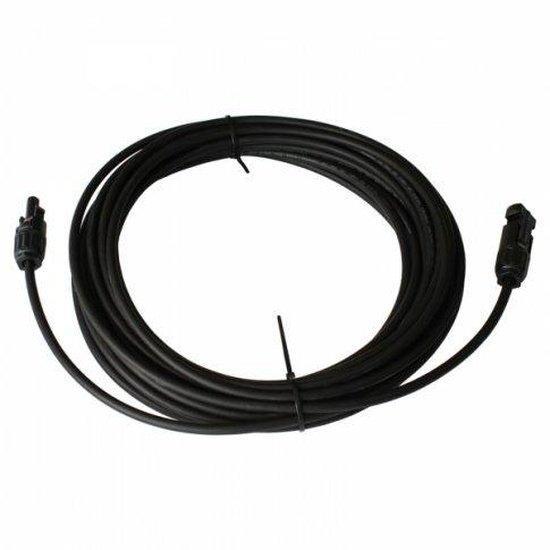

10 m (32.8 ft) single-core solar extension cable, 2.5 mm², fitted with waterproof MC4 connectors (male one end, female the other).

• Length: 10 m (32.8 ft) — can be cut into two 5 m (16.4 ft) tails.
• Conductor: tinned copper; cross section: 2.5 mm² (approx. 13 AWG).
• Conductor resistance: 8.21 Ω/km (20 °C).
• Insulation and jacket: XLPE, 120 °C; outer diameter: 5.5 mm (0.22 in).
• Working temperature range: -40 °C to +120 °C (-40 °F to 248 °F).
• Connectors: waterproof MC4; male on one end, female on the other — compatible with most MC4-type panel connectors.
• Certification: TÜV. Suitable for all weather conditions, for off-grid 12 V systems and standard PV panels.

If you have any questions about this item or need our free advice, please contact us via email or phone.
