100W (2×50W) 12V Monocrystalline Solar Kit | 4Boats

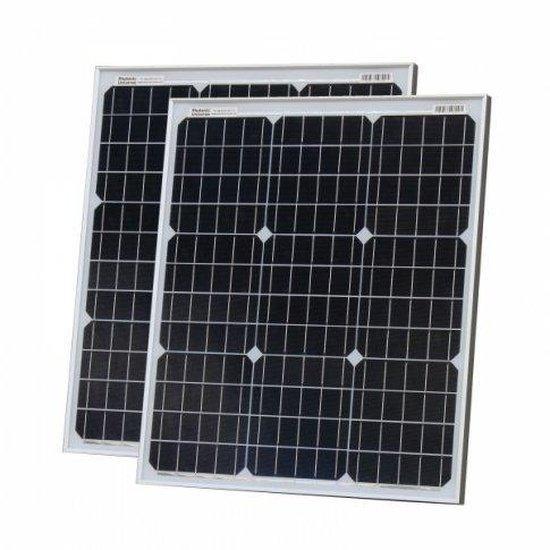

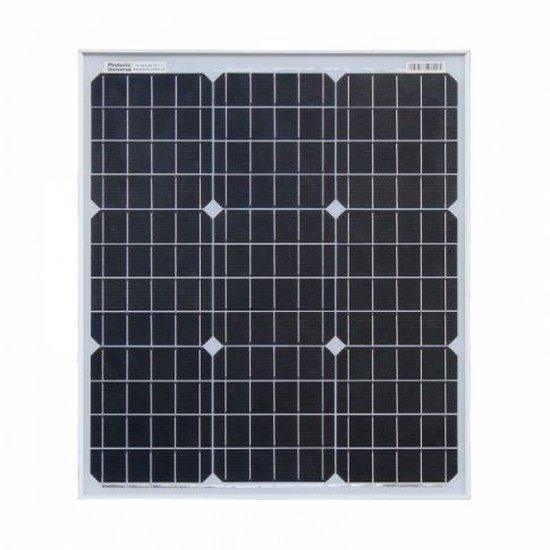

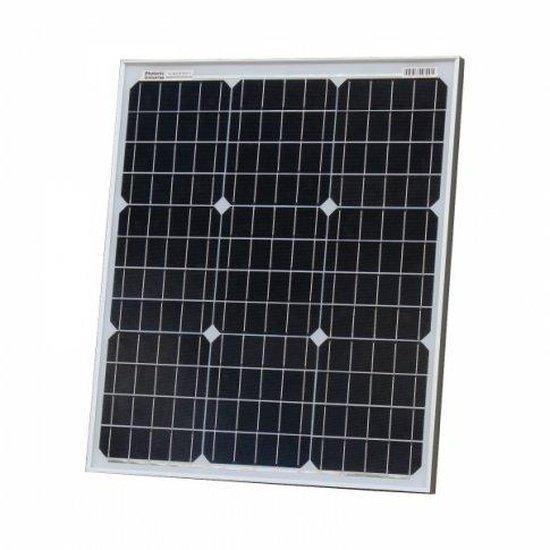

100W kit consisting of two 50W high-efficiency monocrystalline panels with 2x5 m cables and MC4 connectors — ideal for charging 12 V batteries in boats, campervans, sheds or remote sites.

• Per panel electrical specs: Peak power 50W; Vmp 20.2 V; Imp 2.48 A; Voc 23.9 V; Isc 2.63 A; power tolerance ±3%.
• High-efficiency 5-busbar monocrystalline cells and sealed aluminium frame for long life and better performance at higher temperatures.
• Waterproof design for permanent outdoor use in all weather conditions.

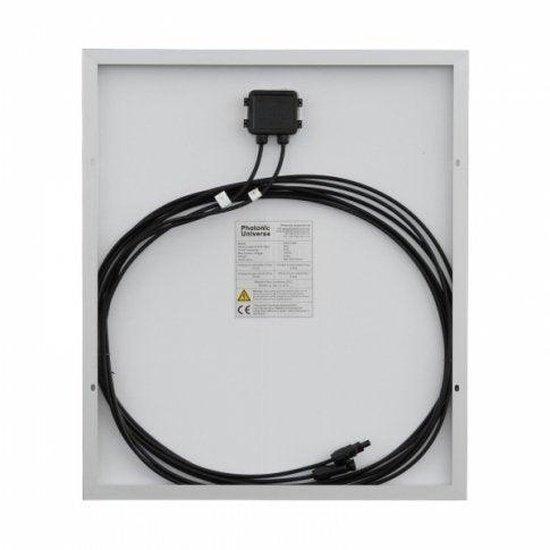

• Cable and connectors: 2x5 m (16.4 ft) high-temperature single-core solar cables with MC4 connectors (can be cut for direct wiring to a charge controller).
• Installation: these 2x50W solar panels can be wired in parallel ("+" to "+", "-" to "-") to increase charging current for a 12 V system.

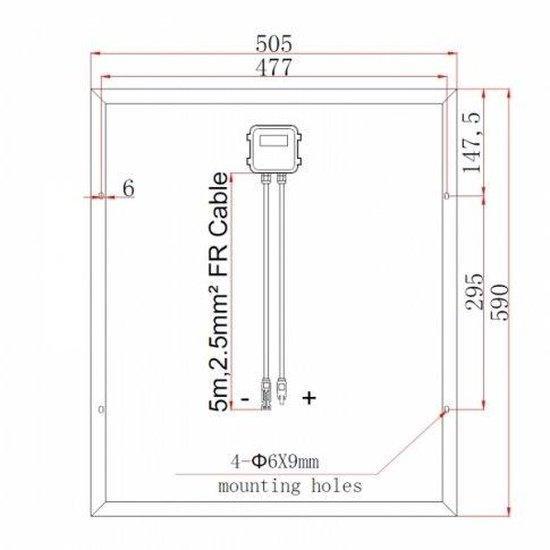

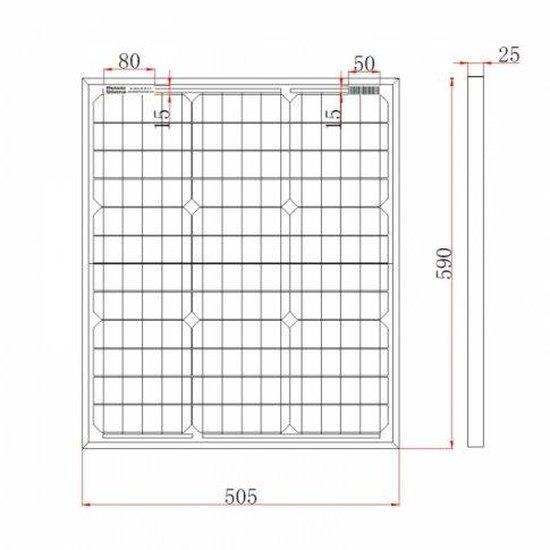

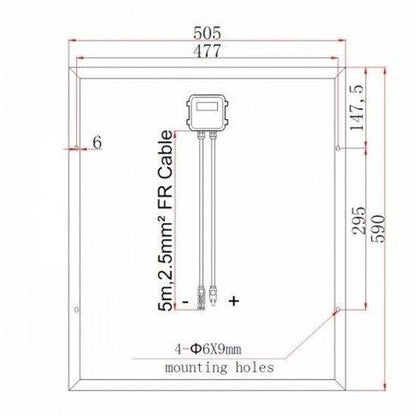

• Mechanical specs (per panel): 590 x 505 x 25 mm (23.2 x 19.9 x 1.0 in); weight 4.2 kg (9.3 lb); 4 mounting holes (6 x 9 mm).
• Suitable applications: charging 12 V batteries for marine, caravan, motorhome, farm, shed, telecoms and monitoring equipment; can power loads tolerant of input variation (e.g. pumps, motors).
• Important: to charge a 12 V battery or battery bank these panels require a solar charge controller / regulator; a 10 A controller is suitable for this kit, upgrade to 20 A if adding more panels.

Care & compatibility: keep panels clean and unshaded for best output; use an appropriate MPPT or PWM solar charge controller and ensure correct cable connections and fusing per installation instructions.
