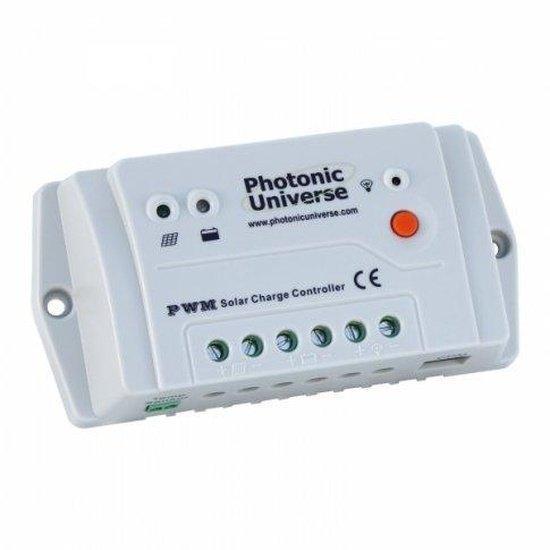

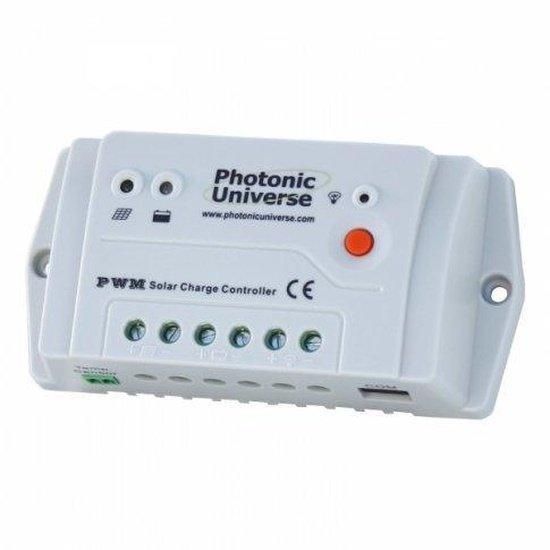

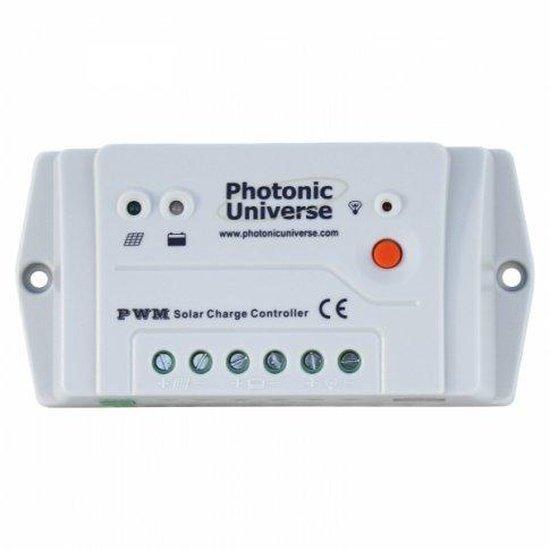

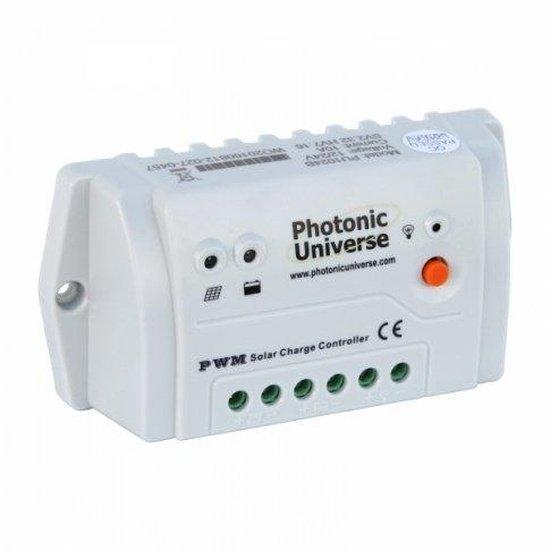

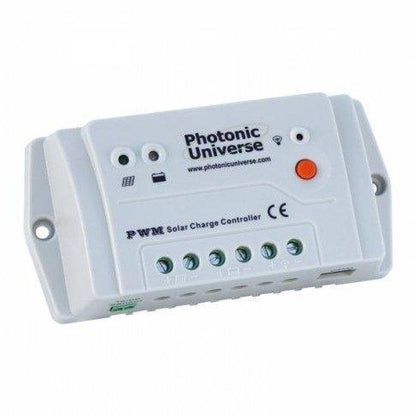

10A PWM solar charge controller 12/24V for camper, caravan, boat

Compact 10 A PWM solar charge controller for 12 V or 24 V systems — designed for campers, caravans and small boats.

• Charge controller can be monitored and programmed through various methods: 1) connect to a remote meter MT50 with an LCD screen, 2) connect a Wi‑Fi module and use the free Android/iOS app, 3) use an RJ45‑to‑USB cable to link to a PC.
• Rated current: 10 A. Fully automated operation with auto 12/24 V selection; PWM charging to improve battery acceptance and life.
• Accepts solar input up to 160 W (12 V) / 320 W (24 V), suitable for small to medium PV setups.
• Protection features: reverse‑current cut‑off, overcharge/over‑discharge protection, overload, short circuit and overheating protection; LED indicators, temperature sensor and load on/off button.
• Battery compatibility: sealed, gel and flooded batteries (default = sealed). Battery type can be changed via the communication methods above.
• Self‑consumption: ≈8.4 mA (12 V) / ≈7.8 mA (24 V). Working temperature: -35°C to +50°C (-31°F to +122°F).
• Terminals accept wires up to 4 mm² (approx. 12 AWG). Size: 13.8 x 6.9 x 3.7 cm (5.43 x 2.72 x 1.46 in). Weight: 130 g (4.59 oz).
• Multiple mounting holes for easy installation and space‑saving compact design.

Installation: supplied with an instruction manual that explains connections and operation; ensure correct battery selection and cabling for safe, reliable performance.
