120W 12V Solar Charging Kit with 10A PWM (12/24V) Controller | 4Boats

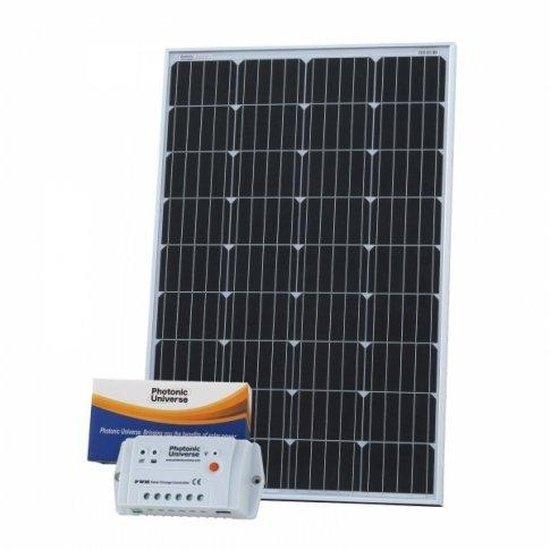

120W monocrystalline 12 V solar charging kit with a 10 A 12 V/24 V PWM charge controller (Photonic Universe) and 2x5 m cables — designed for permanent outdoor use on vans, boats, sheds and remote sites.

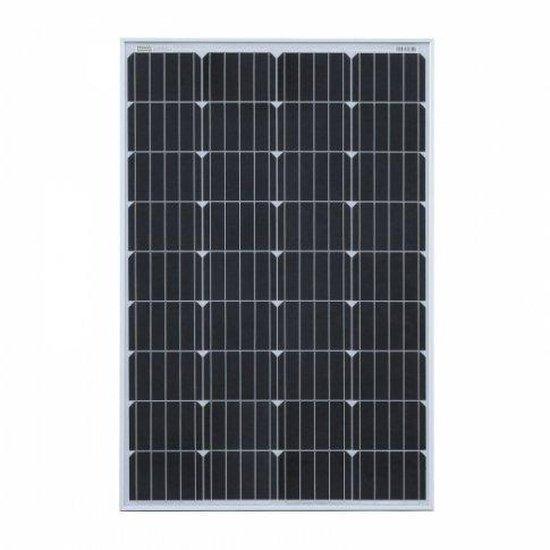

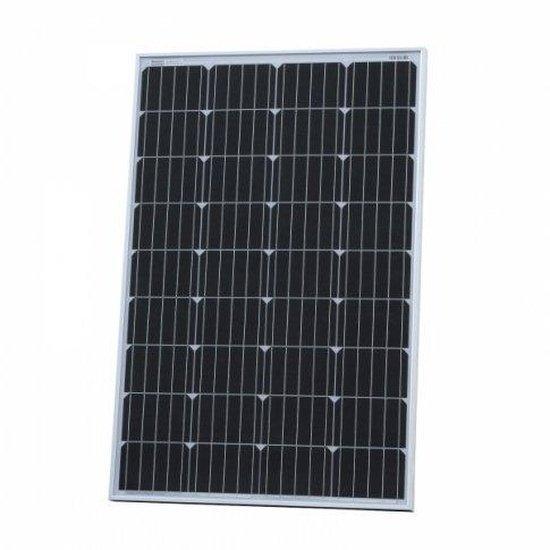

• Solar panel: Peak power 120W; maximum power voltage 20.2 V; maximum power current 5.94 A; open circuit voltage 23.9 V; short circuit current 6.31 A; power tolerance ±3%.

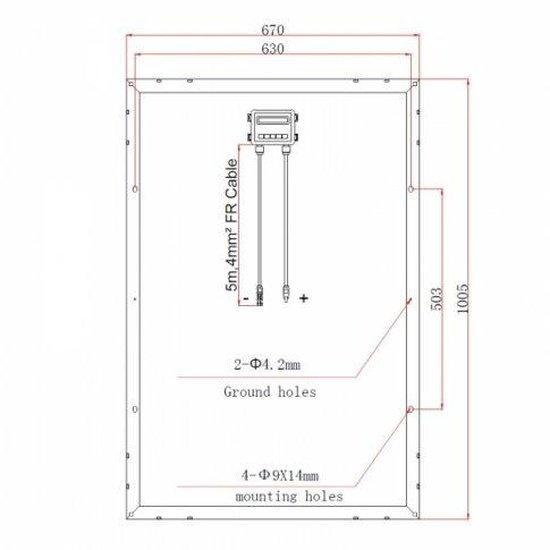

• Panel construction: high-efficiency monocrystalline cells with 5-busbar design, sealed aluminium rigid frame and waterproof construction; 4 mounting holes 9 x 14 mm; weight 8.3 kg (18.3 lb).
• Solar panel dimensions: 1160 x 350 x 35 mm.

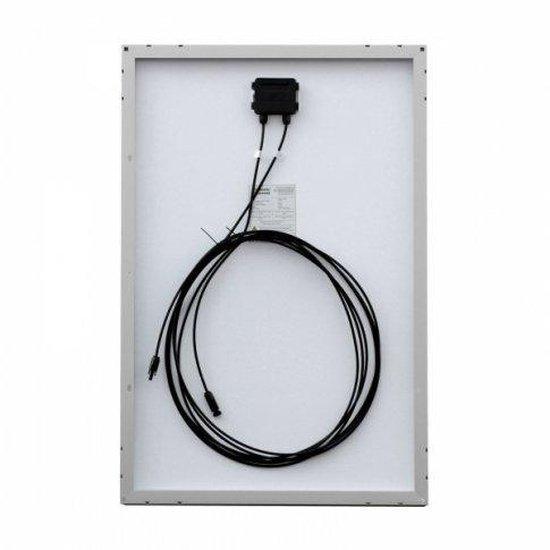

• Cabling & connectors: supplied with 2 x 5 m (16.4 ft) high-temperature single-core solar cables with male/female MC4 connectors for easy linking or to cut for direct controller terminal connection.

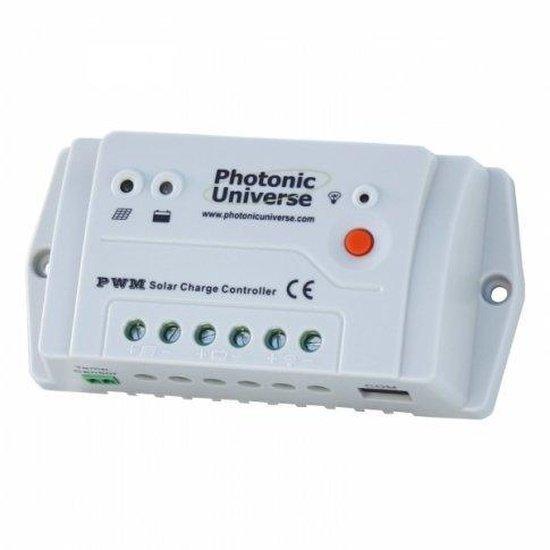

• 10 A solar charge controller: includes a 10 A 12 V/24 V Photonic Universe PWM charge controller; 10 A rated current, fully automated operation with auto 12/24 V selection and PWM charging to optimise battery acceptance and life; prevents reverse current at night.
• Controller specifications & protections: over-charge / over-discharge / overload / short circuit / overheating protection; self-consumption ≈ 8.4 mA (12 V) / 7.8 mA (24 V); working temperature −35°C to +50°C (−31°F to +122°F); terminals for wire up to 4 mm²; size 13.8 x 6.9 x 3.7 cm (5.4 x 2.7 x 1.5 in); weight 130 g (4.6 oz); multiple mounting holes for ease of installation.
• Remote metering & installation: controller can be connected to a remote MT50 meter with LCD for monitoring and to optimise the charging process; supplied with detailed user manual and wiring/installation instructions. Please note: due to our warehouse arrangements, the solar charge controller may be shipped separately.
• Use & fitting: ideal for camper vans, motorhomes, boats, sheds, farms and remote monitoring/telecommunications; panel can be fixed to a flat roof using metal brackets (mounting hardware not included).
• Notes: this is an essentials kit — it does not include mounting accessories or batteries.

Care: keep the panel clear of shade and dirt for best output; use appropriate fuse/circuit protection when wiring to batteries and follow the supplied installation instructions for safe, long-term operation.
