150W 12V Dual-Battery Solar Kit with 10A Controller | 4Boats

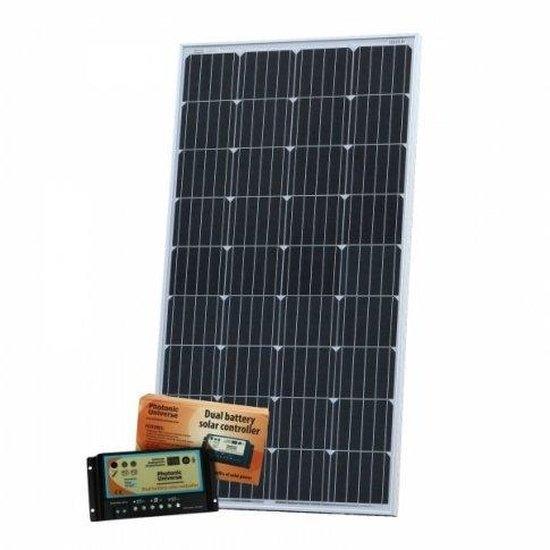

150W 12 V dual-battery solar kit for campervans, motorhomes and boats — includes a waterproof monocrystalline panel, 10 A dual-battery controller and cables.

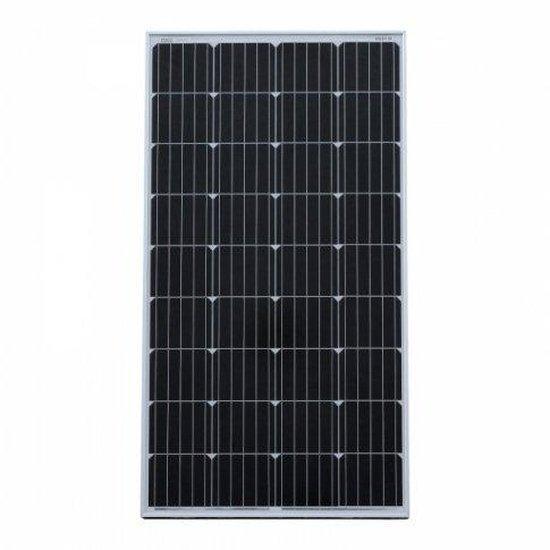

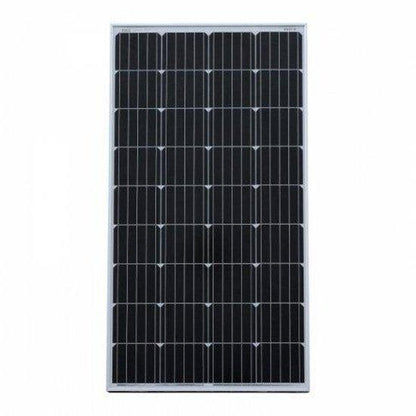

• Solar panel: Peak power 150 W; maximum power voltage 20.2 V; maximum power current 7.43 A; open circuit voltage 23.9 V; short circuit current 7.89 A; power allowance ±3%.

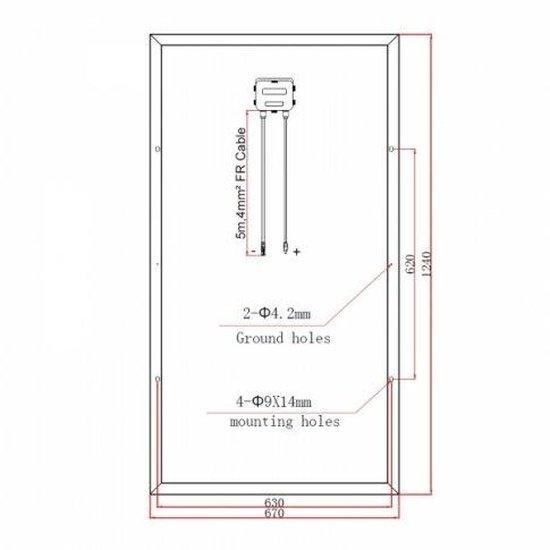

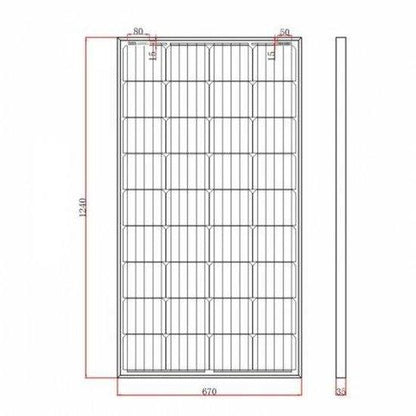

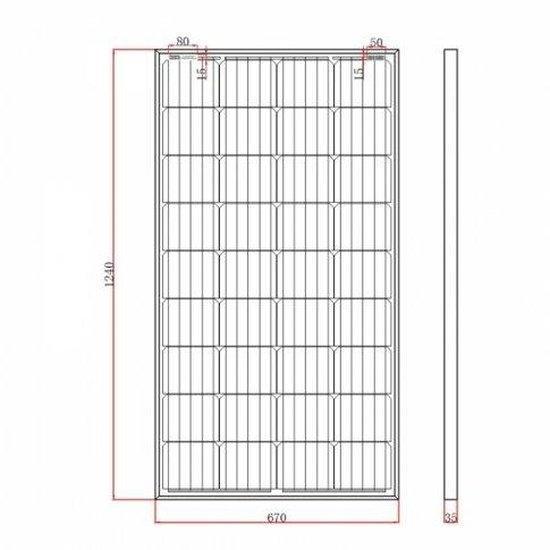

• Dimensions: 124 x 3.5 cm; weight: 9.9 kg (21.8 lb); 4 mounting holes 9 x 14 mm.

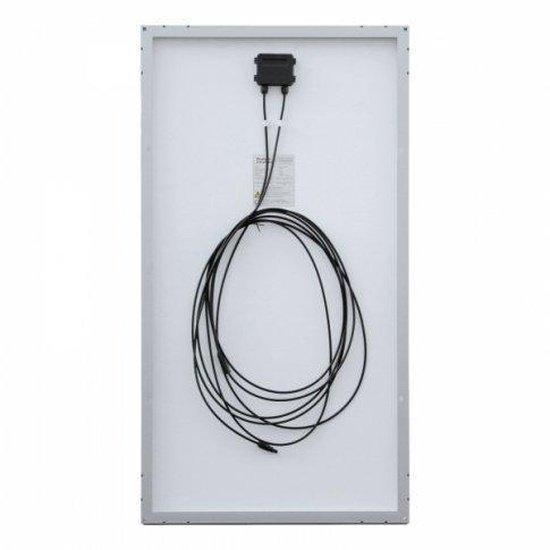

• Cables & connectors: 2 x 5 m of high-quality single-core solar cable rated for high roof temperatures; MC4 male/female connectors fitted (can be cut off when wiring to a charge controller).

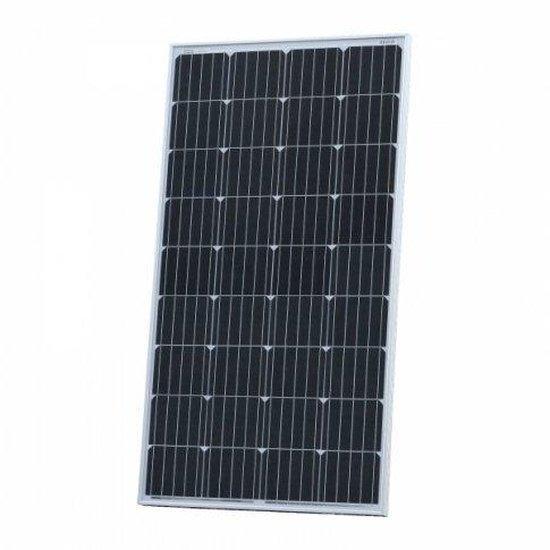

• Cells & build: High-efficiency monocrystalline cells with 5 busbars; sealed aluminium frame and waterproof construction for permanent outdoor use; performs well in high ambient temperatures.

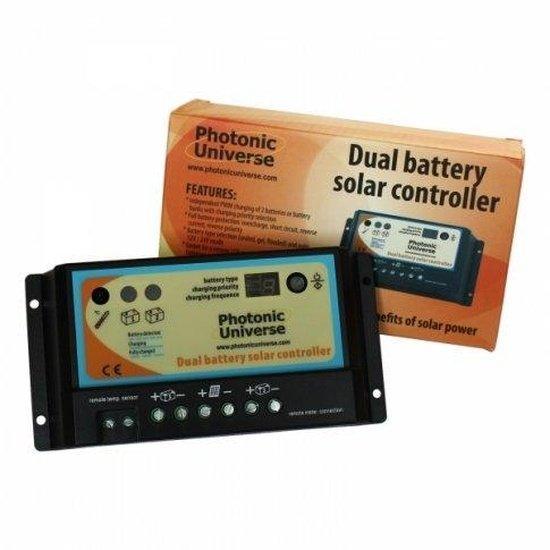

• 10 A solar charge controller: Kit includes a 10 A 12 V/24 V dual-battery PWM solar charge controller designed to charge and protect two batteries independently with automatic cut-off to prevent overcharge.
• Charge controller features: Fully automated operation with auto 12/24 V selection; 3 pairs of terminals (input, battery, load); protections including over-charge, over-discharge and reverse polarity; self-consumption 4 mA at night, 10 mA when charging.
• Controller physical & electrical: Terminals accept wire up to 4.0 mm²; size 15.5 x 7.6 x 4.0 cm (6.1 x 3.0 x 1.6 in); weight 185 g (0.41 lb); working temperature −35 °C to +55 °C (−31 °F to +131 °F).
• Please note: this is an essentials kit — mounting accessories and batteries are not included. Due to warehouse arrangements the solar charge controller may be shipped separately.

Installation & care: the kit includes a detailed user guide; MC4 connectors can be cut off for direct wiring to screw terminals on the controller. The panel can be fitted to a flat roof using metal brackets; suitable for charging two batteries (eg engine and leisure) or providing direct power to non-sensitive loads.
