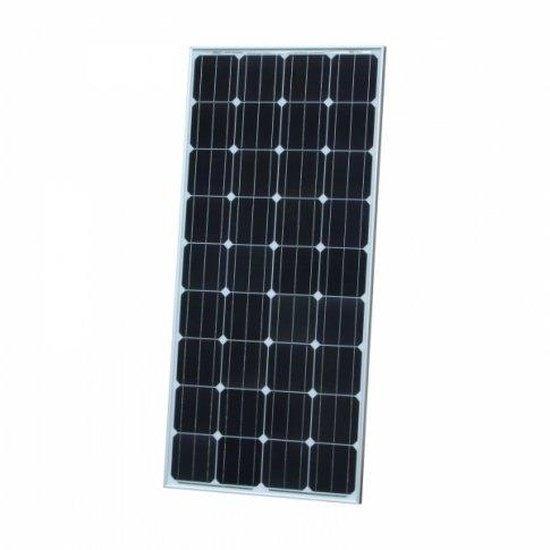

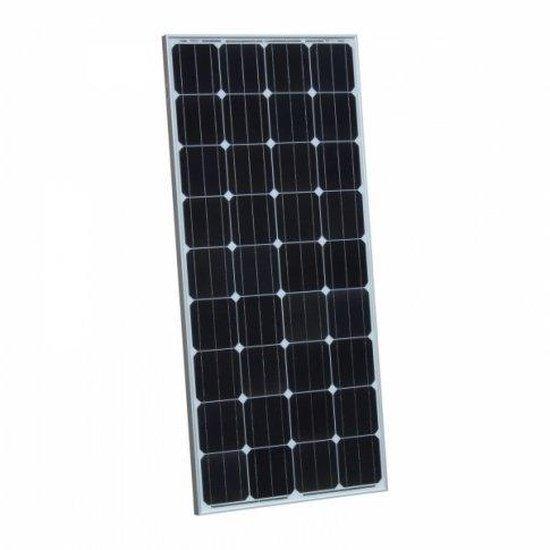

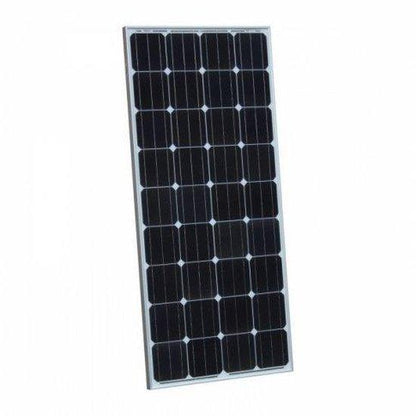

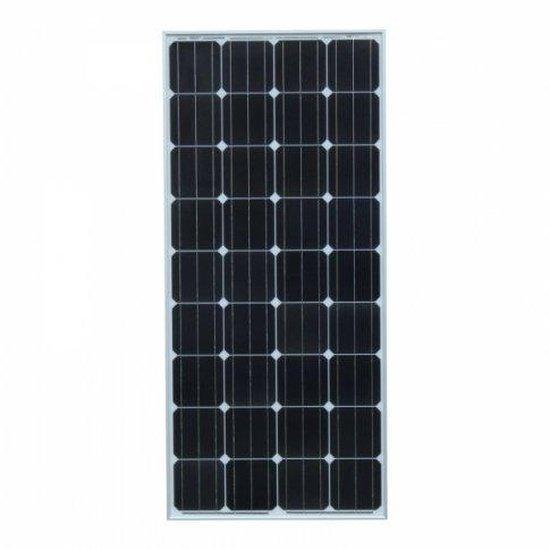

160W Monocrystalline Solar Panel with 5 m Cable | 4Boats

High-efficiency 160W monocrystalline solar panel with a 5 m cable and MC4 connectors — durable, waterproof and suitable for permanent outdoor 12 V systems.

• If you are planning to use this solar panel to charge a 12 V battery or battery bank: please note this panel requires a solar charge controller / regulator to charge.
• Solar panel specifications: Peak power: 160W; Maximum power voltage: 18.8 V; Maximum power current: 8.48 A; Open circuit voltage: 22.9 V; Short circuit current: 9.02 A; Power allowance range: 0~+3%.
• Dimensions: 1480 x 670 x 35 mm (58.3 x 26.4 x 1.4 in); Weight: 12 kg (26.5 lb).
• Robust anodised aluminium frame with 4 mounting holes for secure installation; waterproof construction for all-weather use.

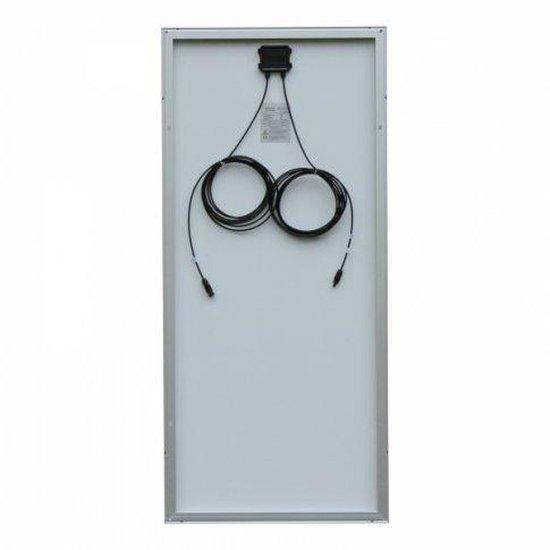

• Includes 5 m (16.4 ft) of high-temperature solar cable with male and female MC4 connectors attached for easy linking to panels or extension leads.
• Can be wired in series or parallel to increase system voltage or current as required.
• Warranty & performance: 1 year workmanship warranty; cells guaranteed ≥90% nominal power at 10 years and ≥80% at 25 years.

MC4 connectors can be cut off if you need screw-terminal connections for a solar charge controller; use an appropriate MPPT or PWM regulator sized for the panel and battery bank.
