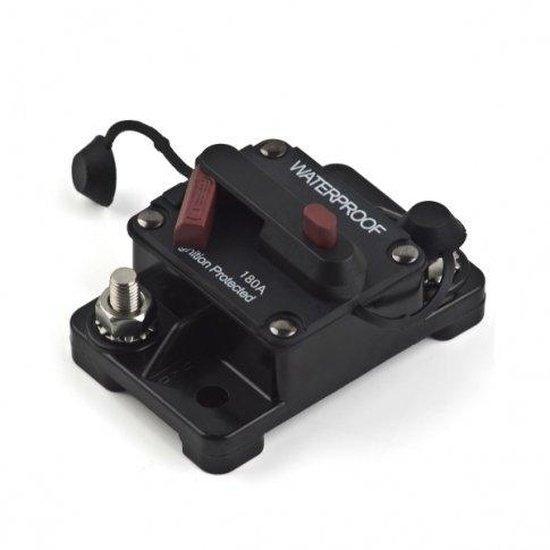

180A DC Breaker 12/24/48V, Resettable, IP67 | 4Boats

Resettable 180 A DC circuit breaker with a manual-break On/Off function for 12 V, 24 V and 48 V systems — ideal for battery protection and DC distribution.

• Combines a resettable 180 A circuit breaker and a manual isolator in one unit for over-current protection and simple circuit disconnection.
• Suitable for a wide range of DC applications, including connecting solar or wind charge controllers to batteries.
• Circuit breaker specifications: Rating: 180 A; Type: Thermal overcurrent protection device; Material: Thermal plastic (UL 94 V-0).
• Operating temperature: -32°C to 82°C (-26°F to 180°F); Storage temperature: -34°C to 149°C (-29°F to 300°F).
• Terminal size: M6; suitable for surface mounting; enclosure: IP67 (water‑resistant/immersion protected).
• Size: 74 x 48 x 37 mm (2.91 x 1.89 x 1.46 in); Weight: 110 g (0.11 kg, 3.9 oz).
• Ignition protected and meets international standards S.A.E. J1625, J1171, UL1500.
• Ideal between charge controllers, off‑grid inverter DC inputs and batteries, DC power distribution or other automotive and marine DC circuits.

Please ensure correct cable sizing and secure M6 terminal torque during installation; check system voltage compatibility and follow local electrical regulations.
