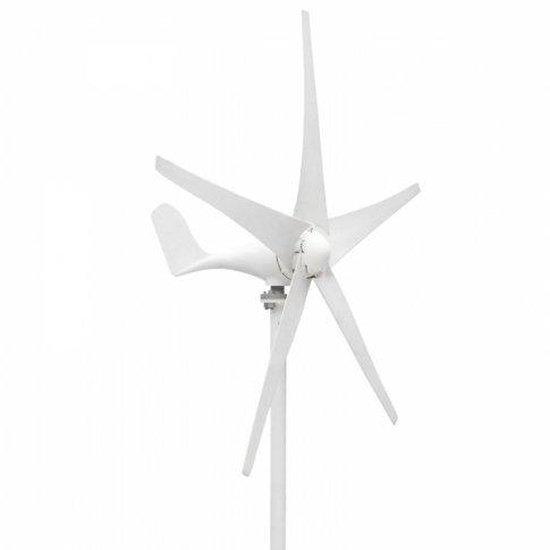

200W 12V 5-Blade Wind Turbine - 3-Phase AC | 4Boats

Compact 200W 12 V 5-blade wind turbine supplying reliable off-grid and marine power.

• Robust design: casing made of cast aluminium alloy for long-lasting use and rapid response to incoming wind.
• 5-blade construction: maximises output in poor wind conditions and reduces start-up wind speed to 2 m/s (4.5 mph).
• Aerodynamic optimisation: nylon-fibre blades shaped for maximum efficiency and protection from strong winds.
• Blade diameter: [value]
• Automatic wind detection: tail vane automatically seeks the best wind direction and re-orients the turbine.
• Proprietary permanent magnet AC generator: three-phase permanent magnet synchronous generator with a special stator for minimal blade resistance; magnet material Neodymium Iron Boron; generator case cast aluminium alloy.
• Adjustable tube connector: 54 mm diameter (adjustable) suitable for a wide range of mounting poles, including scaffolding; cable: 3 single core cables with bare ends, length approx. 10 cm, cross section 1.5 mm².
• Easy installation: Assembly of the turbine is straightforward and requires minimal effort.
• Performance specifications: Number of blades: 5; Rated power: 200 W; Maximum power: 230 W; Rated voltage: 12 V; Rated wind speed: 10 m/s (22.4 mph); Survival wind speed: 45 m/s (101 mph); Start-up wind speed: 2 m/s (4.5 mph); Working temperature: -40°C to +80°C (-40°F to +176°F); Net weight: 7.5 kg (16.5 lb).
• Compliance and extras: CE, ISO 14001, ISO 9001, TUV; screws included; three-phase AC output; electromagnet / wind wheel yaw control system; 1 year warranty supplied.
• Additional considerations: In optimal conditions brief output spikes can exceed the rated power; size charge controllers and battery systems accordingly and follow the user manual for safe installation.

Suitable for off-grid, backup and mobile use (including boats) and pairs well with solar charging kits; use a compatible charge controller.
