250W 12V Solar Kit, 20A PWM + 2×5m Cables | 4Boats

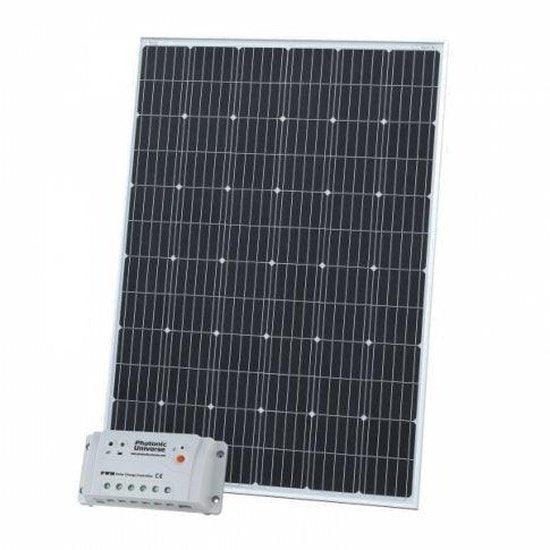

High-efficiency, waterproof 250 W 12 V monocrystalline solar panel kit with PU2024B 20 A 12 V/24 V PWM controller and 2 x 5 m cables for vans, campervan/RV, boats, sheds and remote off‑grid use.

• Solar panel: Peak power 250 W; maximum power voltage 20.2 V; maximum power current 12.38 A; open circuit voltage 23.9 V; short circuit current 13.12 A; power allowance range +/- 3%.

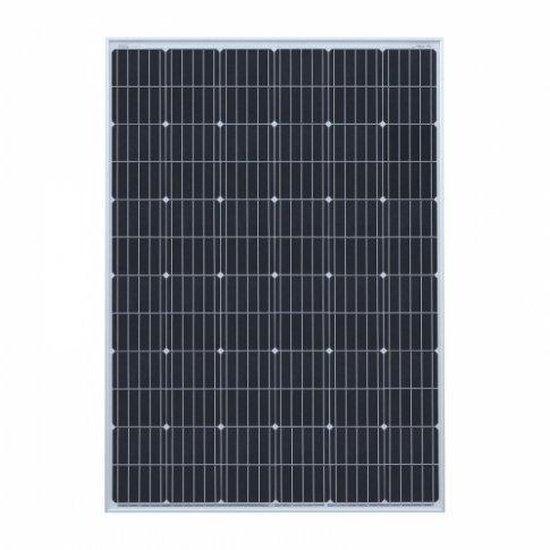

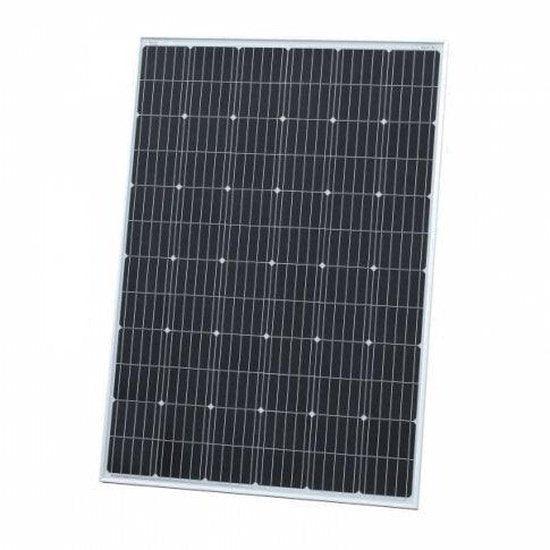

• Panel construction: long‑life monocrystalline cells with 5‑busbar design, sealed aluminium frame, waterproof for all‑weather outdoor use.
• Physical: dimensions 165 x 99.2 x 3.5 cm; panel weight 15.3 kg (33.7 lb); 8 mounting holes 9 x 14 mm; panel can be fitted to a flat roof using metal brackets, pole mounts or lamination (mounting accessories not included).

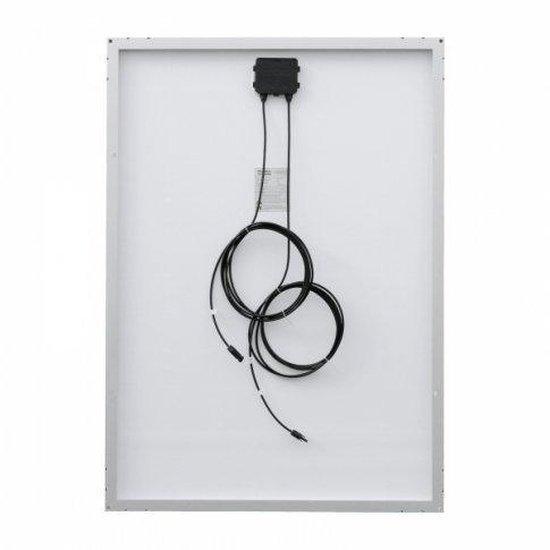

• Cabling & connectors: supplied with 2 x 5 m of high‑quality single‑core solar cable (suitable for high roof temperatures) and fitted MC4 male/female connectors; MC4s may be cut off to wire to the controller terminals.

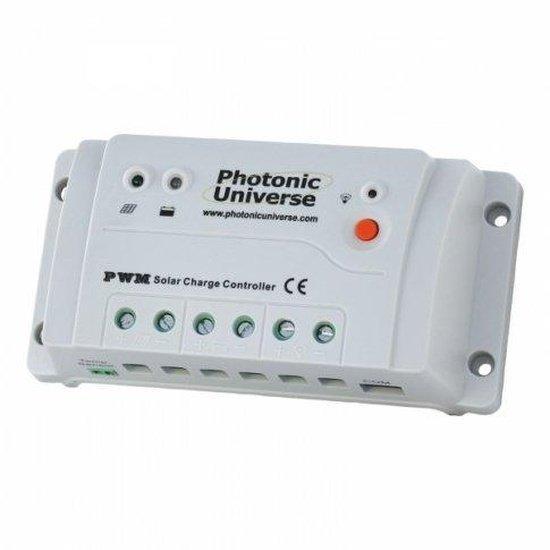

• 20 A solar charge controller: this kit includes a PU2024B 20 A 12 V/24 V automatic PWM controller to protect batteries, increase charge acceptance and prolong battery life; rated current 20 A.
• Charge controller specs: fully automated operation with auto 12 V/24 V selection; self‑consumption 8.4 mA (12 V) / 7.8 mA (24 V); working temperature -35 °C to +50 °C (-31 °F to +122 °F); terminals for wire up to 10 mm²; size 15.9 x 8.1 x 4.8 cm; weight approx. 300 g; multiple mounting holes for ease of installation.
• Protections & features: prevents reverse current at night, and provides over‑charge / over‑discharge, overload, short‑circuit and overheating protection; LED status indicators and temperature sensor included.
• Connectivity & documentation: the controller can be connected to a remote MT50 meter with LCD; electrical connection and installation instructions supplied; user manual for PU2024B 20 A 12 V/24 V automatic solar charge controller available to download.

Please note: this essentials kit does not include mounting accessories or batteries. The charge controller may be shipped separately due to warehouse arrangements. Follow the supplied installation documentation and local electrical regulations when wiring and fitting.
