250W 12V Solar Panel, 2×5 m MC4 Leads | 4Boats

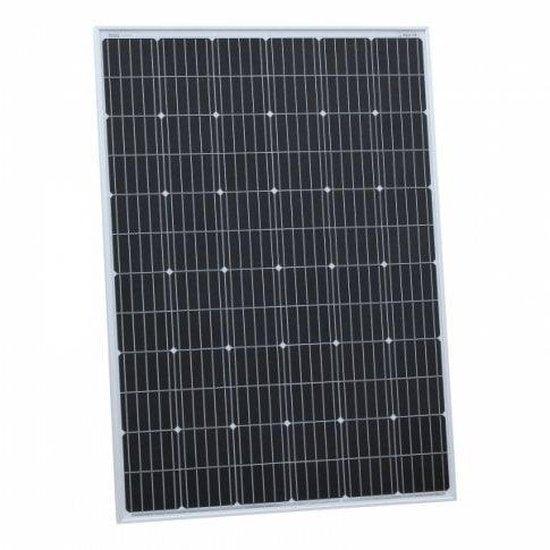

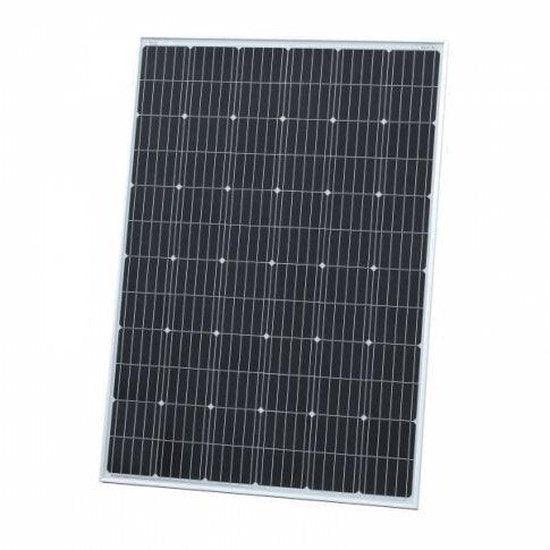

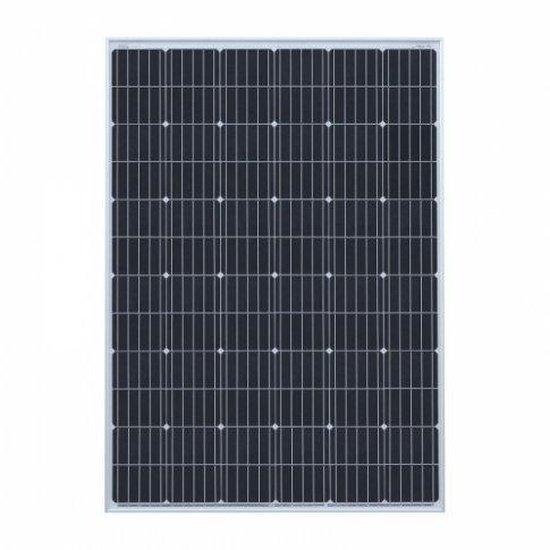

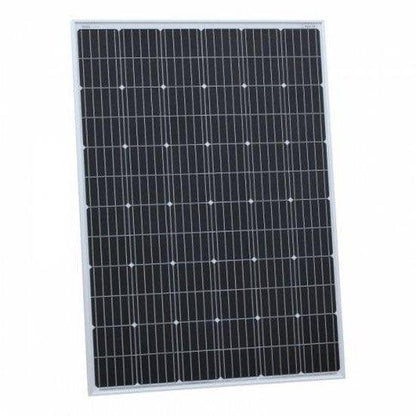

High-efficiency, waterproof 250W monocrystalline solar panel for 12 V systems — ideal for camper vans, motorhomes, boats, sheds and remote installations. Model: Photonic Universe SWD-250M.

• To charge a 12 V battery or battery bank, use a compatible solar charge controller/regulator; this panel requires a charge controller to charge batteries.
• Solar panel specifications: Peak power (Pmax): 250W; Maximum power voltage (Vmp): 20.2 V; Maximum power current (Imp): 12.38 A; Open circuit voltage (Voc): 23.9 V; Short circuit current (Isc): 13.12 A; Power allowance range: +/- 3%.
• Dimensions: 13 cm; Weight: 15.3 kg (33.7 lb).

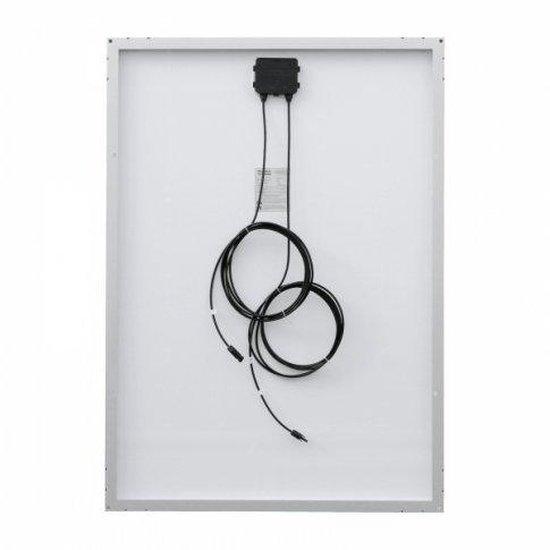

• Fitted with 2x5 m (16.4 ft) of high-quality single-core solar cable rated for high roof temperatures; MC4 male/female connectors pre-crimped (can be cut for direct wiring to a charge controller or used with 6 mm extension cable).

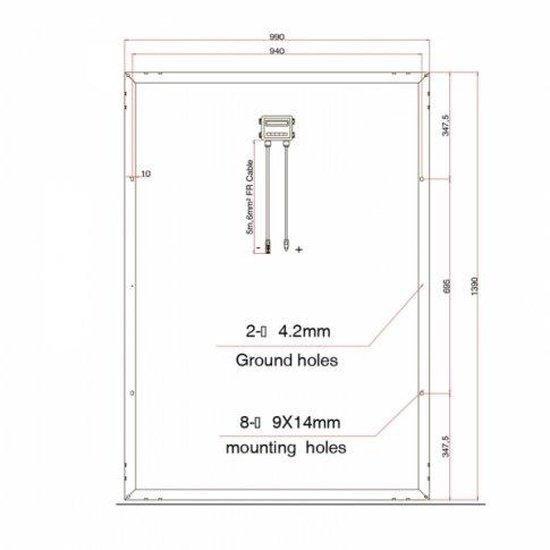

• Tough sealed aluminium frame with 8 mounting holes, each 9 x 14 mm (0.35 x 0.55 in); fully waterproof for outdoor use.
• Innovative 5-busbar monocrystalline cells for higher efficiency and improved performance in warm ambient temperatures.
• Suitable for direct powering of non-voltage-sensitive loads (e.g. pumps, motors) and for charging 12 V battery banks when used with an appropriate regulator.

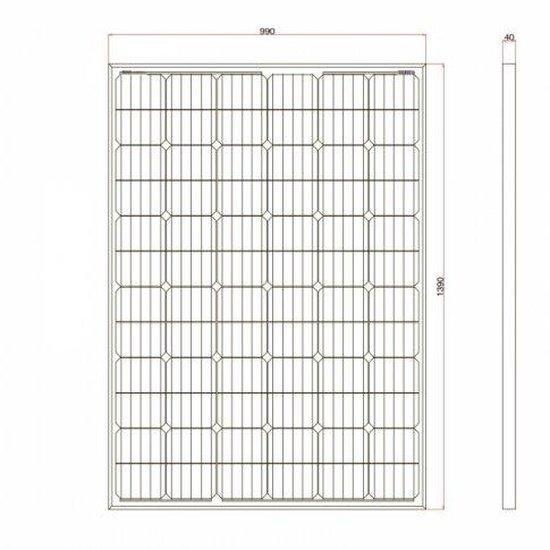

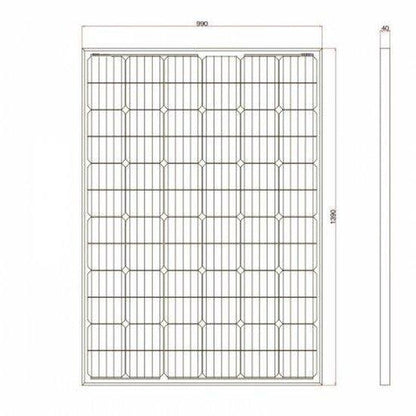

• Supporting documents available to download: Technical drawing of Photonic Universe 250W 12 V solar panel SWD-250M.

Care & compatibility: keep cells clear of dirt and shading for best output, mount on a sturdy surface using the provided holes, and always use a compatible solar charge controller when charging batteries.
