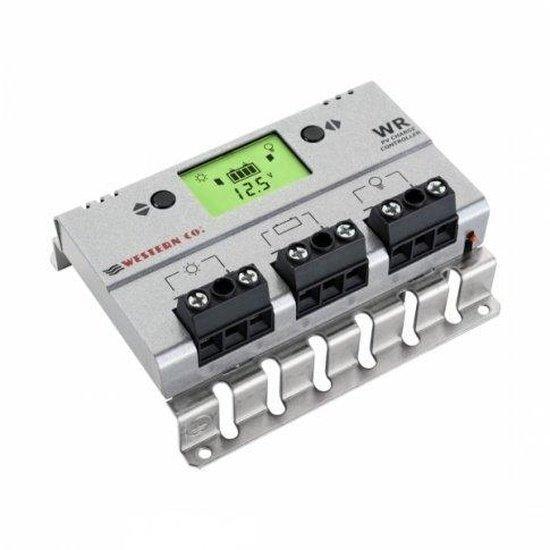

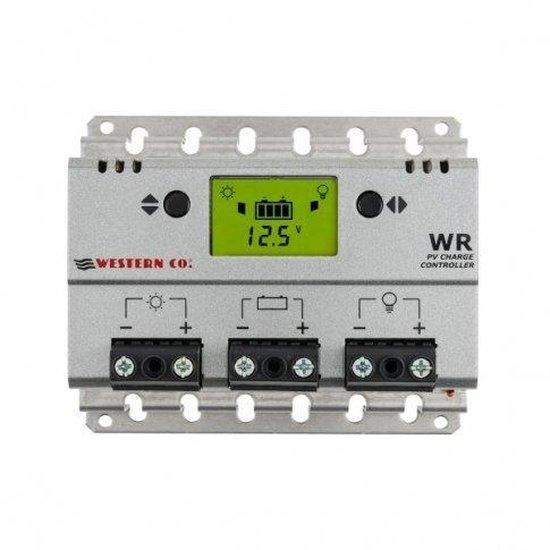

30 A 12/24 V PWM Solar Charge Controller | 4Boats

30 A PWM solar charge controller with LCD for 12 V and 24 V motorhome, boat, lighting and off-grid systems. Fully automatic operation with built-in temperature sensing and programmable load control.

• Charge/load rating: 30 A (automatic 12 V / 24 V selection)
• Maximum PV input voltage: 55 V; compatible PV power: up to 480 W (12 V) / 960 W (24 V)
• Typical panel operating voltage: 17–20 V (12 V systems) or 34–40 V (24 V systems)
• LCD display: shows power, voltage and current for panels and battery, energy counter and temperature readout
• Protection functions: full electronic protection including prevention of overcharge, over-discharge, reverse polarity, short circuit and overload; can help recover some lost battery capacity
• Terminals: 3 pairs (PV input, battery, load); accepts cable up to 10 mm²
• Temperature sensor: built-in; self-consumption: 8 mA
• Programmable load modes and low-voltage disconnect (LVD) for lighting, fans or pumps
• Operating temperature: −10 °C to +60 °C (14 °F to 140 °F)
• Dimensions: 15 x 12 x 5 cm (5.9 x 4.7 x 2.0 in); weight: 500 g (1.10 lb); multiple mounting holes for easy installation
• Includes detailed instruction manual explaining wiring and settings
• 5-year manufacturer warranty

Compatible with sealed, gel and flooded lead-acid batteries.
