400W 12V Hybrid Wind MPPT Charge Controller with 200W Solar | 4Boats

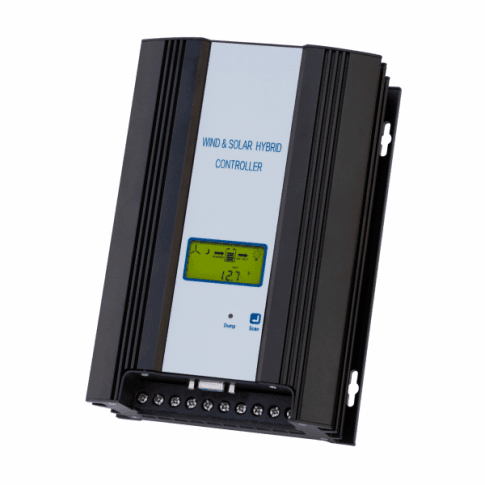

Compact 12 V hybrid charge controller for wind and solar systems, offering MPPT wind charging and PWM solar input with an LCD for system monitoring.

• Low Wind Boost Charging: raises turbine voltage to charge a 12 V battery from as low as 2 V, improving performance in light wind.
• Hybrid Capability: built‑in PWM solar charger and MPPT wind charger that operate together or independently for flexible system design.
• High Efficiency MPPT Charging: optimises wind turbine output with advanced MPPT boost charging technology.
• Comprehensive Safety: protects against reverse current backflow, overvoltage, overload, short‑circuit and excessive wind; overload protection 120% rated current for 1 min, 150% for 10 s.
• User‑Friendly Interface & Software: digital LCD display for status and alerts; advanced parameter configuration and monitoring via dedicated Windows software.
• Load Control: two DC outputs (10.8–16 V) with programmable timer functions and multiple modes; rated 10 A per output.
• Electrical Specifications: battery 12 V; maximum wind input 400W (MPPT); wind input voltage 2–16 V; maximum wind input current 34 A; maximum solar input 200W (PWM); maximum solar open‑circuit voltage 24 V; maximum solar input current 17 A; no‑load self‑consumption <0.6 W.
• Environment & Physical: ambient −20 to +40 °C (−4 to 104 °F); humidity 0–90% non‑condensing; dimensions 150 x 220 x 83 mm (5.9 x 8.7 x 3.3 in); weight 2.3 kg (5.1 lb); 1‑year manufacturer warranty.

User manual supplied. Note: a suitable mounting pole for the wind turbine is not included; configuration software is Windows only.
