40W 12V Folding Solar Kit (SWD-FWP-40M) | 4Boats

Compact 40W folding solar charging kit for 12 V systems by Photonic Universe — includes an IP67-rated 10 A controller, 2x20W monocrystalline panels, cables and protective case. Model: SWD-FWP-40M.

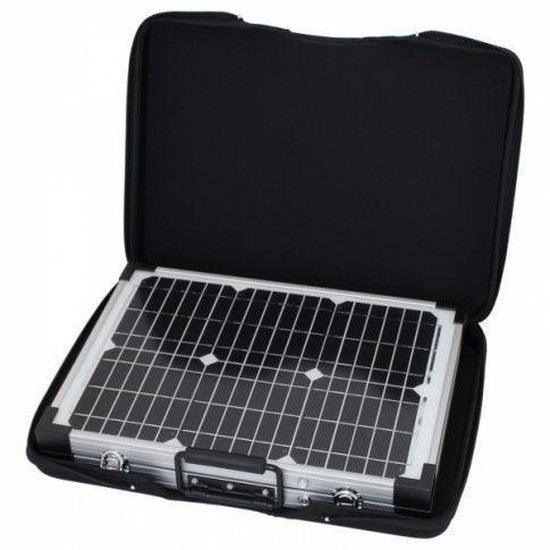

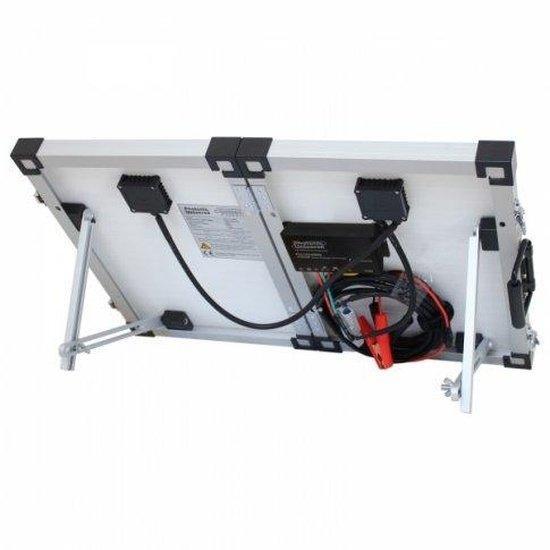

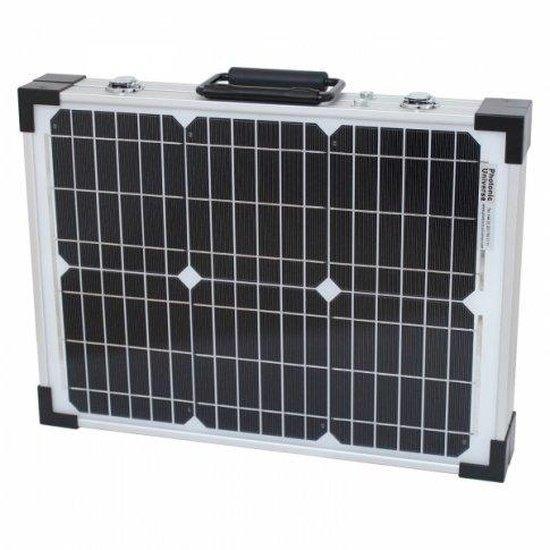

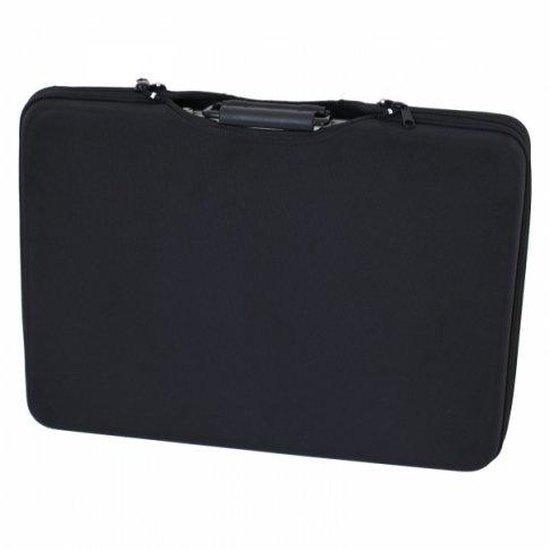

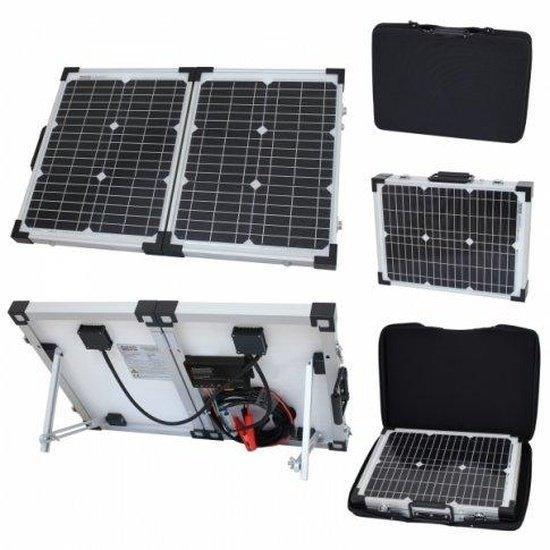

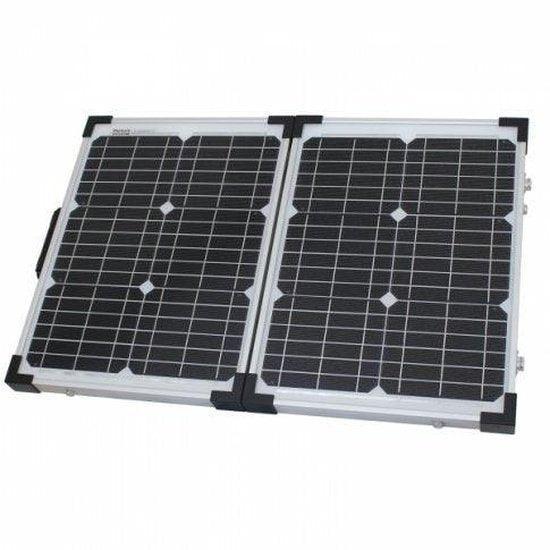

• Complete kit: high-efficiency 2x20W folding monocrystalline solar panels, adjustable aluminium stand, handle, latches, protective storage case and installation manual.
• Advanced fully automated 10 A 12 V solar charge controller (IP67 waterproof) with overcharge protection and selectable battery types: sealed, gel and flooded. Controller can be connected to the MT-50 remote meter with LCD for monitoring.
• Cables & connectors included: 5 m cable with battery plug and inline fuse, plus battery crocodile clips for easy connection.
• Solar panel specifications: Peak power 40W; maximum power voltage 17.5 V; maximum power current 2.2 A (2 x 1.1 A); open-circuit voltage 21.6 V; short-circuit current 2.4 A (2 x 1.2 A); ±3% power tolerance.
• Dimensions & weight: 51 x 47 x 6 cm (folded); weight 5.4 kg (11.9 lb).
• Suitable for 12 V systems including motorhome, caravan, camper, narrowboat, yacht and other 12 V battery banks.
• Warranty & installation: 1 year workmanship warranty. Product comes with a clear instruction manual explaining connections and operation.
• Care & compatibility: store panels in the protective case when not in use, position panels in a well-lit area when charging and follow the manual for safe, all-weather use.
