50W 12V Solar Kit with 10A PWM Controller & 2 × 5 m Cables | 4Boats

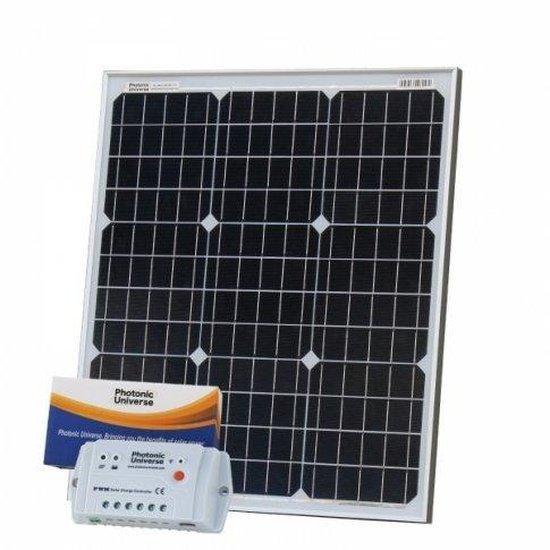

Compact 50W 12 V monocrystalline solar charging kit with a 10 A PWM controller and 2 x 5 m cable — ideal for campervans, boats, sheds and remote equipment.

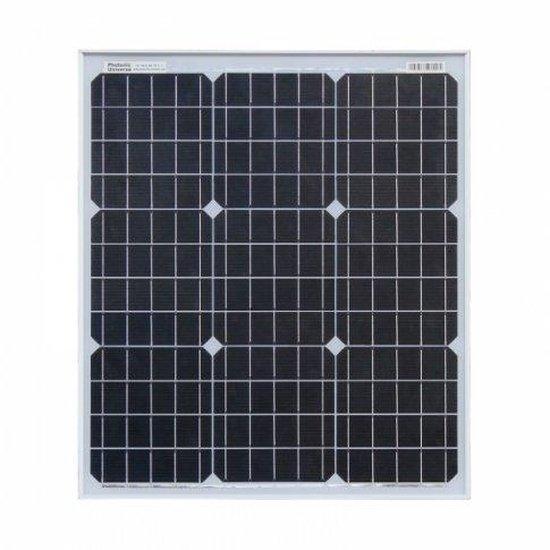

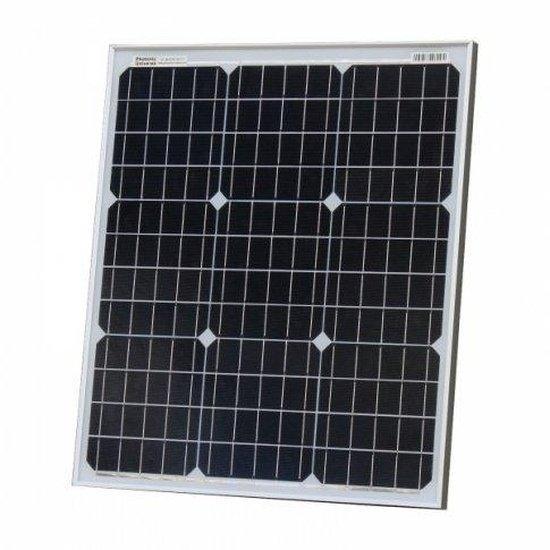

• 50W solar panel: This high efficiency, waterproof 50W 12 V monocrystalline solar panel is perfect for permanent outdoor use to charge 12 V batteries or supply direct power to non-sensitive loads.

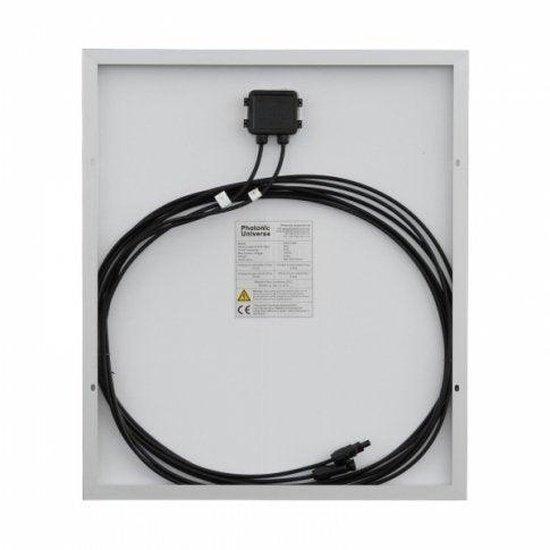

• Durable cable & connectors: Supplied with 2 x 5 m high‑temperature single‑core solar cables with male/female MC4 connectors; MC4s can be cut off for direct wiring to charge controller terminals.
• Advanced cells: Innovative 5‑busbar solar cells for higher efficiency and better performance in warm climates, allowing more power from a smaller surface area.

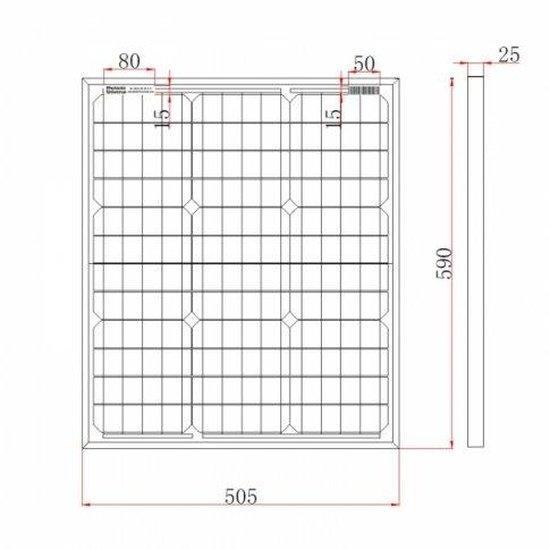

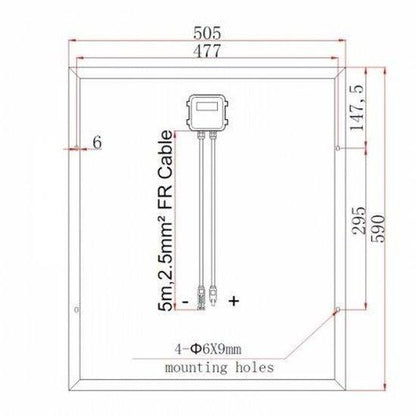

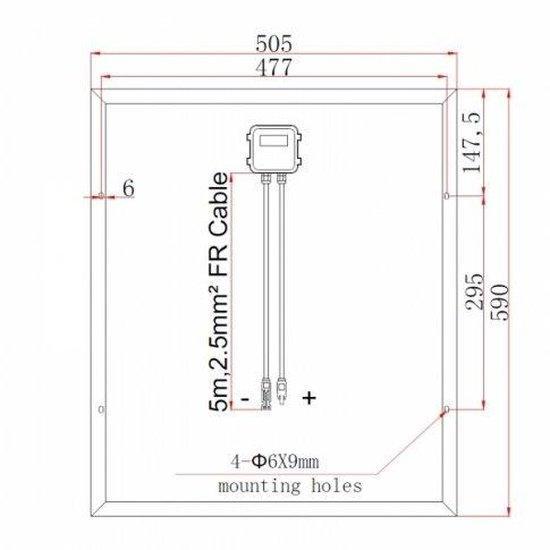

• Solar panel specifications: Peak power 50W; Maximum power voltage (Vmp) 20.2 V; Maximum power current (Imp) 2.48 A; Open‑circuit voltage (Voc) 23.9 V; Short‑circuit current (Isc) 2.63 A; Power tolerance ±3%; Dimensions: 590 mm; Weight: 4.2 kg; 4 mounting holes 9 x 11 mm.

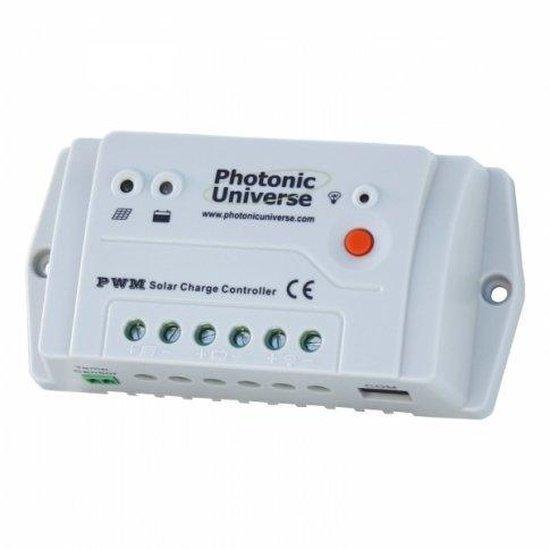

• 10 A solar charge controller: The kit includes a 10 A 12 V/24 V Photonic Universe solar charge controller designed to protect batteries with automatic cut‑off, reverse current prevention at night and multiple protections (overcharge/discharge, overload, short circuit, overheating). Uses PWM technology to optimise charge acceptance and prolong battery life.
• Charge controller specifications: Rated current 10 A; fully automated operation with auto 12/24 V selection; self‑consumption 8.4 mA (12 V) / 7.8 mA (24 V); working temperature -35°C to +50°C (−31°F to +122°F); terminals for wire up to 4 mm²; size 13.8 x 6.9 x 3.7 cm (5.4 x 2.7 x 1.5 in); weight 130 g; multiple mounting holes for ease of installation.
• Remote monitoring & installation: The controller can be connected to a remote MT50 meter with an LCD screen to monitor and optimise the charging process; wiring may be to screw terminals or via MC4/cable as required.
• Please note: This is an essentials kit and does not include mounting accessories or batteries. Due to warehouse arrangements, the solar charge controller may be shipped separately; see the Installation tab for electrical connection guidance.

Fitting: the solar panel can be fixed to a flat roof using metal brackets, pole mounts or other suitable hardware (not included). Ensure correct battery type and safe, qualified installation for best performance and longevity.
