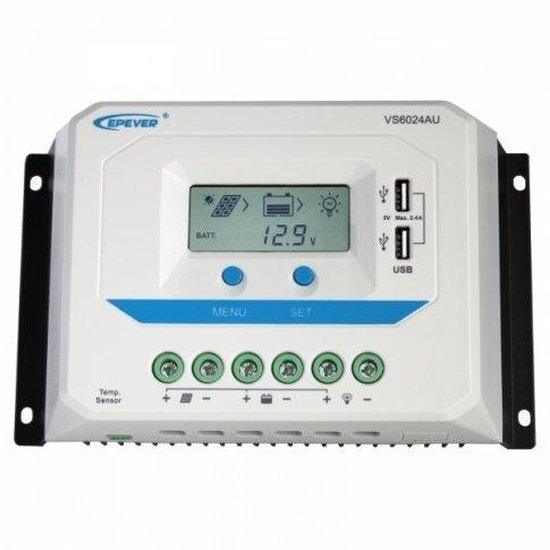

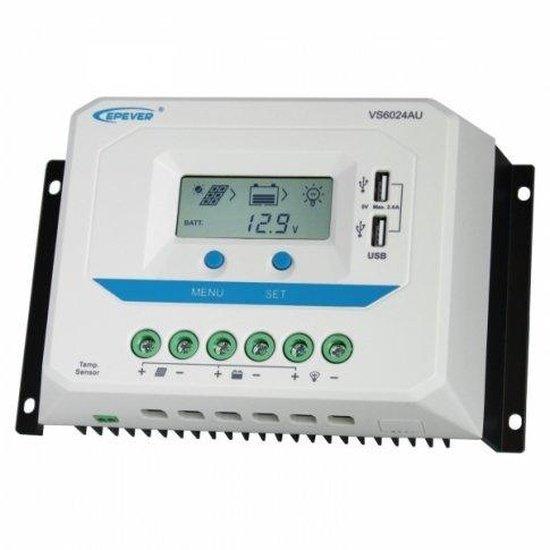

60A 12/24V Solar Charge Controller with LCD & Dual USB 2.4A | 4Boats

60 A PWM solar charge controller for 12 V/24 V systems with an LCD display, advanced monitoring and dual USB charging for devices.

• Battery capacity: compatible with a wide range of 12 V and 24 V battery banks; charging programs selectable by the user.
• Full system protection: this charge controller features a full range of electronic safety functions including reverse-current protection, automatic cut-off to prevent over-charge, deep-discharge protection, overheating, overload, short circuit and reverse polarity protection.
• Advanced programming and monitoring features: LCD display with multilevel menu operation and two multifunction buttons; displays live voltage, current, battery state of charge and battery temperature. An energy statistics counter shows accumulated daily and monthly charge values.
• Load & charging options: optional 12 V load output for lighting/fans with night-time settings; multiple charging programmes for different battery types can be selected by the user.
• Rapid USB charging: dual 5 V USB outputs with a combined 2.4 A output for fast charging of mobile phones, tablets, MP3 players and other USB devices.
• Controller specifications: fully automated operation with auto 12/24 V selection. Rated charge/discharge current: 60 A. Maximum solar panel input power: 960W (12 V) / 1920W (24 V). Maximum solar panel input voltage: 50 V.
• Temperature & consumption: temperature sensor for automatic compensation -3 mV/°C/2 V (25°C). Working temperature: -25°C to +55°C (-13°F to 131°F). Self-consumption: max. 9.2 mA (12 V).
• Installation & warranty: mounting holes for ease of installation. Size: 21.4 x 12.8 x 7.2 cm (8.43 x 5.04 x 2.83 in). Weight: 1.02 kg (2.25 lb). This product is covered by a 1 year manufacturer warranty.

Compatible with solar arrays up to 960W (12 V) / 1920W (24 V). For optimal performance use suitable cable sizes, fit the temperature sensor as instructed and consult the manual for safe installation.
