60W 12V Dual-Battery Kit Campervan & Boat | 4Boats

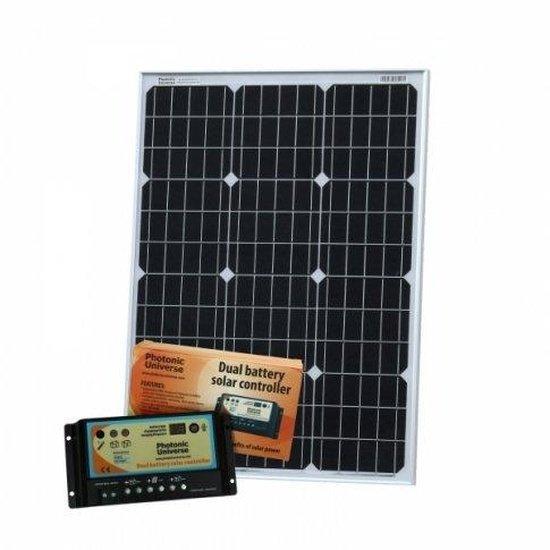

Photonic Universe essentials solar kit with a waterproof 60W 12 V monocrystalline panel, 10 A dual-battery PWM controller (DB1024) and cabling — ideal for campervans, motorhomes and boats.

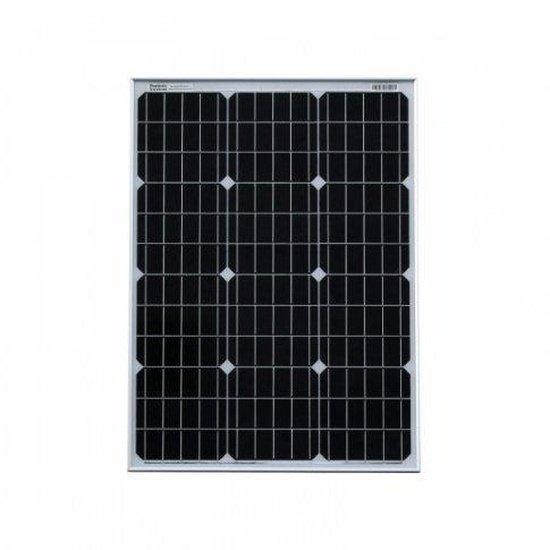

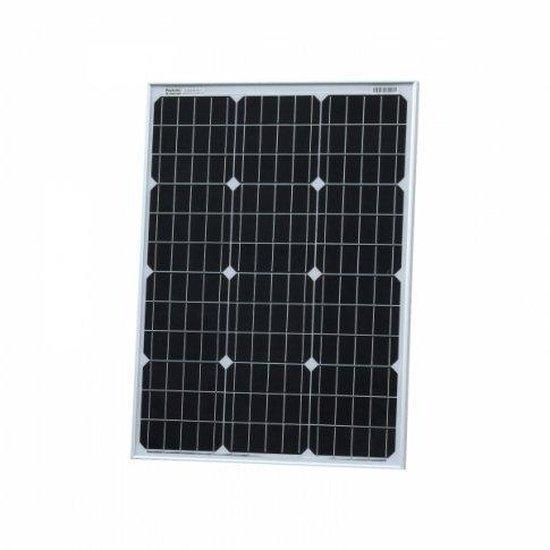

• 60W solar panel: high-efficiency, waterproof 60W 12 V monocrystalline panel for permanent outdoor use.

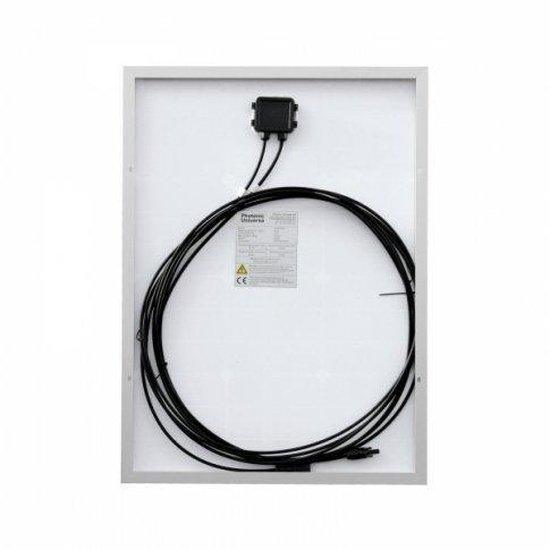

• Cable & connectors: 2 x 5 m high-quality single-core solar cables rated for high roof temperatures with MC4 male/female connectors (connectors can be cut for direct controller wiring).
• Solar panel specifications: Peak power 60W; Maximum power voltage (Vmp) 20.2 V; Maximum power current (Imp) 2.97 A; Open-circuit voltage (Voc) 23.9 V; Short-circuit current (Isc) 3.16 A; Power tolerance ±3%.

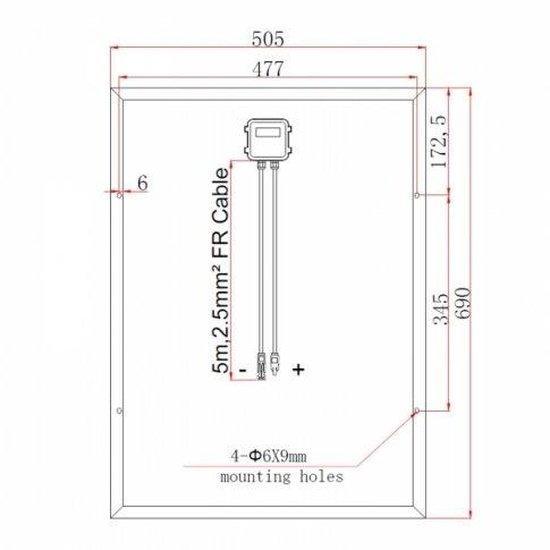

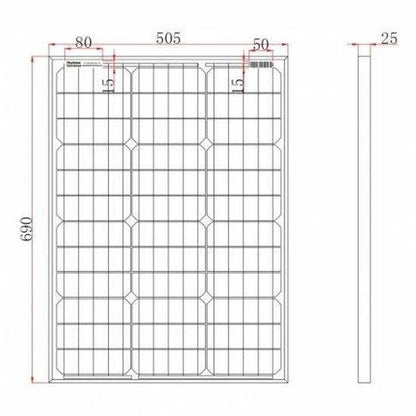

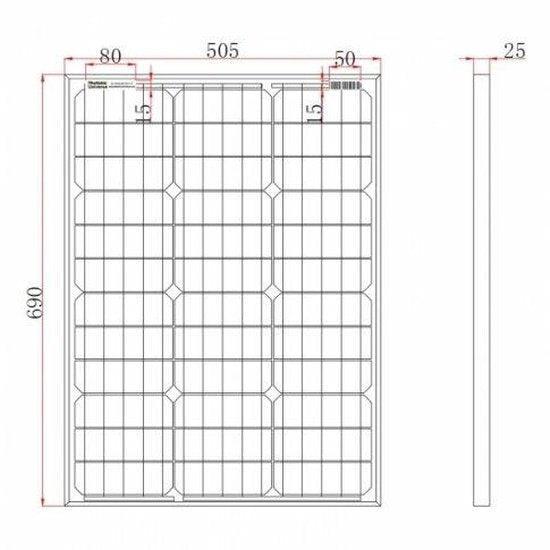

• Panel dimensions & mounting: Dimensions approx. 690 mm (27.2 in) length; Weight 4.9 kg (10.8 lb); 4 mounting holes (9 x 11 mm). Full LxWxH available in the product datasheet.

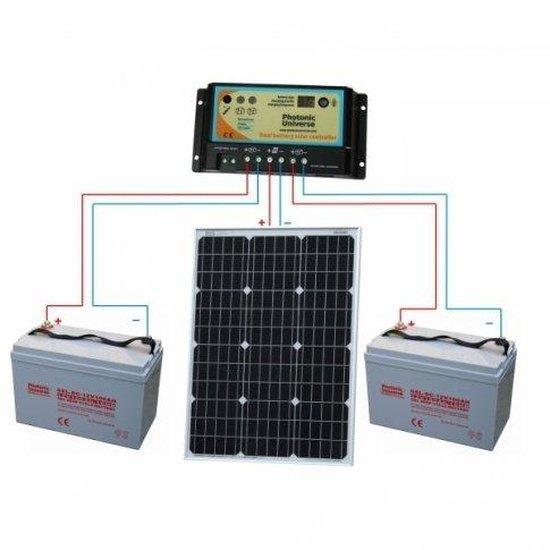

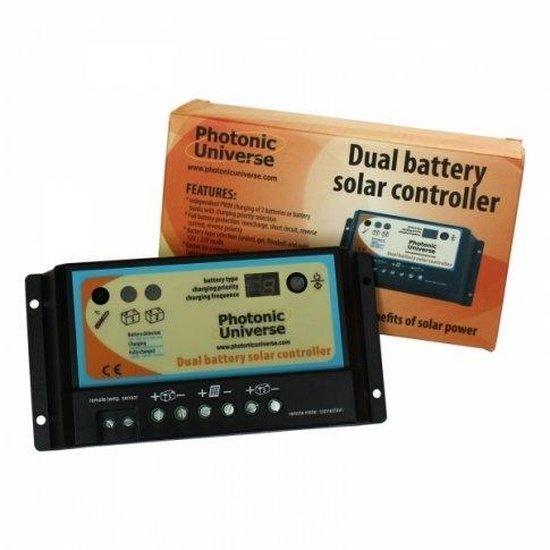

• 10 A solar charge controller: 10 A 12 V/24 V dual-battery PWM controller (model DB1024) designed to charge and protect two batteries independently with configurable charge priority and automatic cut-off to prevent overcharging; built-in protections include reverse polarity, short circuit and overcharge/overload.
• Charge controller specifications: Fully automated operation with auto 12 V/24 V selection; 3 pairs of terminals (PV, battery, load); self-consumption 4 mA at night, 10 mA when charging; accepts wire up to 4.0 mm²; working temperature -35 °C to +55 °C; size 155 x 76 x 40 mm (6.1 x 3.0 x 1.6 in); weight 185 g (0.41 lb).
• Installation & notes: Essentials-only kit — no mounting accessories or batteries supplied. The panel can be fitted to a flat roof using suitable metal brackets or mounting corners. The solar charge controller may be shipped separately. Supplied with a detailed user manual/wiring diagram (DB1024 10 A 12 V/24 V controller) available to download. Use correct fuse protection and follow the supplied wiring diagram during installation.

Care/compatibility: Designed for 12 V systems and suitable for engine and leisure battery arrangements.
