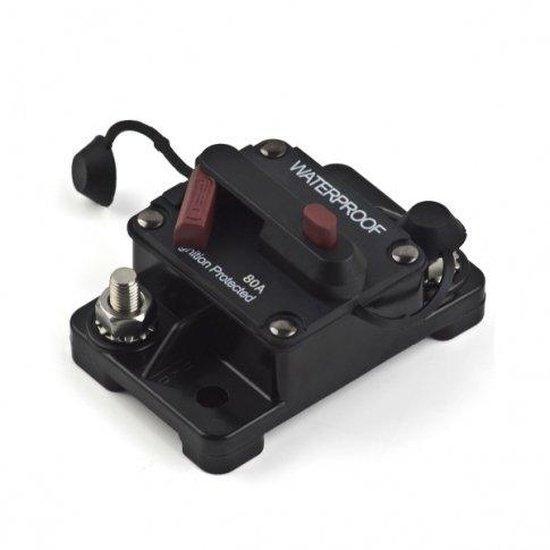

Resettable 80 A DC circuit breaker for 12/24/48 V systems combining automatic overcurrent protection with a manual On/Off isolator for a wide range of DC applications.

  • Rated 80 A for DC systems: 12/24/48 V.
  • Thermal overcurrent protection device — acts as a resettable 80 A fuse and a manual isolator in one unit.
  • Material: thermoplastic (UL 94 V-0); ignition protected to S.A.E. J1625, J1171 and UL1500.
  • Operating temperature: -32°C to 82°C (-25.6°F to 179.6°F). Storage temperature: -34°C to 149°C (-29.2°F to 300.2°F).
  • Terminals: M6.
  • Waterproof rating: IP67.
  • Size: 74 x 48 x 37 mm (2.91 x 1.89 x 1.46 in). Weight: 110 g (3.88 oz).
  • Suitable for a wide range of DC applications including connecting solar or wind charge controllers to batteries; between off-grid inverter DC input and batteries; DC power distribution, charging circuits and other DC automotive and marine applications.

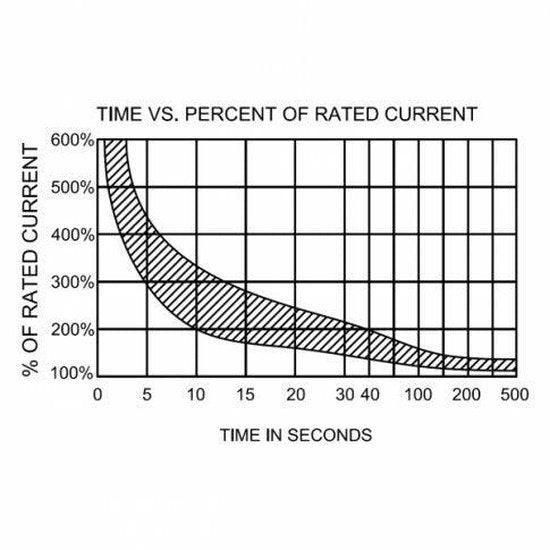

  • Download available: Time vs Rated Current graph for Photonic Universe 80 A Circuit breaker (CB80).
  • Surface mount only.

For surface mounting only; check compatibility with your system and follow safe wiring and isolation practices before installation.

Resettable 80 A DC circuit breaker for 12/24/48 V systems combining automatic overcurrent protection with a manual On/Off isolator for a wide range of DC applications.

  • Rated 80 A for DC systems: 12/24/48 V.
  • Thermal overcurrent protection device — acts as a resettable 80 A fuse and a manual isolator in one unit.
  • Material: thermoplastic (UL 94 V-0); ignition protected to S.A.E. J1625, J1171 and UL1500.
  • Operating temperature: -32°C to 82°C (-25.6°F to 179.6°F). Storage temperature: -34°C to 149°C (-29.2°F to 300.2°F).
  • Terminals: M6.
  • Waterproof rating: IP67.
  • Size: 74 x 48 x 37 mm (2.91 x 1.89 x 1.46 in). Weight: 110 g (3.88 oz).
  • Suitable for a wide range of DC applications including connecting solar or wind charge controllers to batteries; between off-grid inverter DC input and batteries; DC power distribution, charging circuits and other DC automotive and marine applications.
  • Download available: Time vs Rated Current graph for Photonic Universe 80 A Circuit breaker (CB80).
  • Surface mount only.

For surface mounting only; check compatibility with your system and follow safe wiring and isolation practices before installation.
