80W 12V Solar Kit - 10A PWM Controller & 2×5 m Cables | 4Boats

High-efficiency 80W 12 V monocrystalline solar panel with a 10 A 12/24 V PWM charge controller (Photonic Universe) and 2x5 m heat-resistant cables — essentials kit for vans, boats and outbuildings.

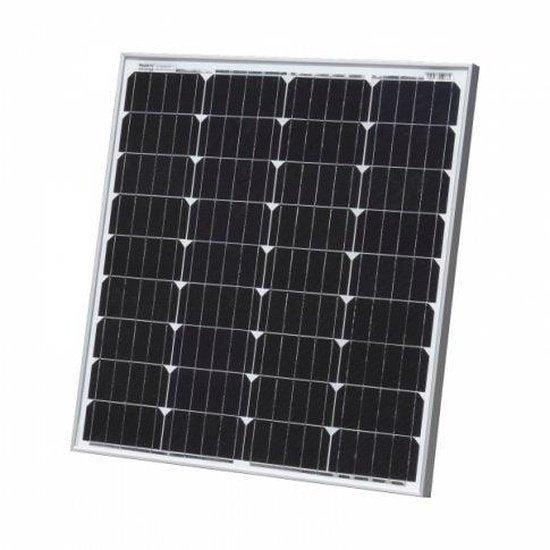

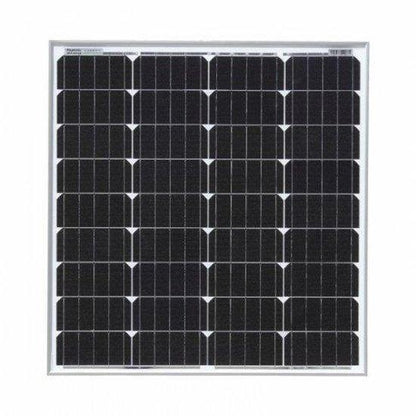

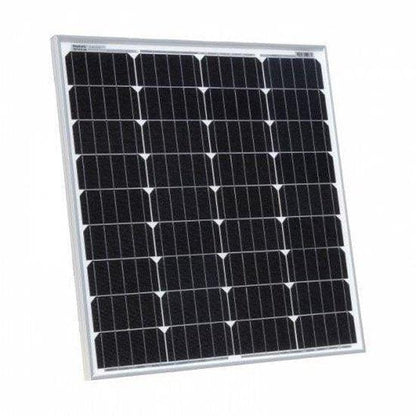

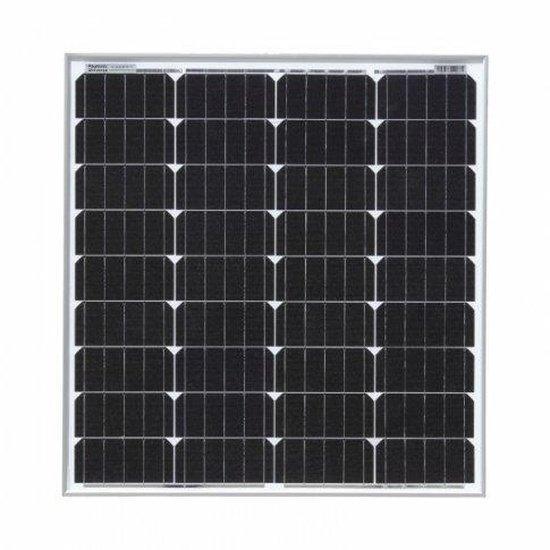

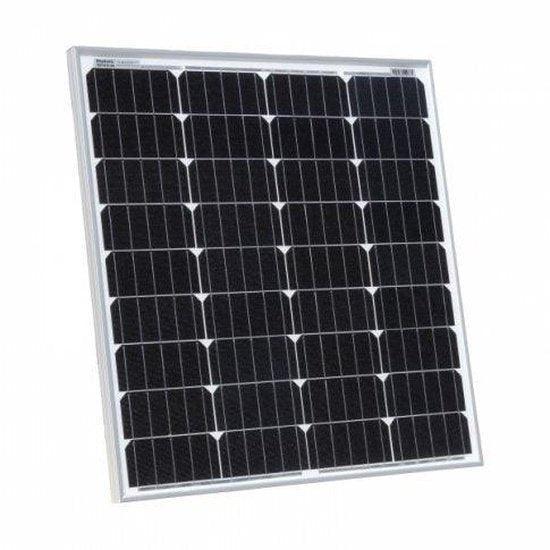

• 80W solar panel: high-efficiency, waterproof 80 W 12 V monocrystalline panel suitable for permanent outdoor use (campers, motorhomes, boats, sheds, farms and remote telemetry/monitoring).
• Solar panel electrical specs: Peak power 80 W; maximum power voltage (Vmp) 20.2 V; maximum power current (Imp) 3.96 A; open-circuit voltage (Voc) 23.9 V; short-circuit current (Isc) 4.21 A; power tolerance ±3%.

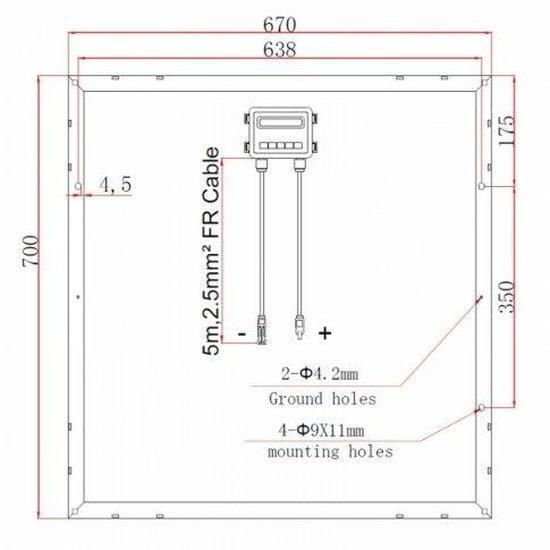

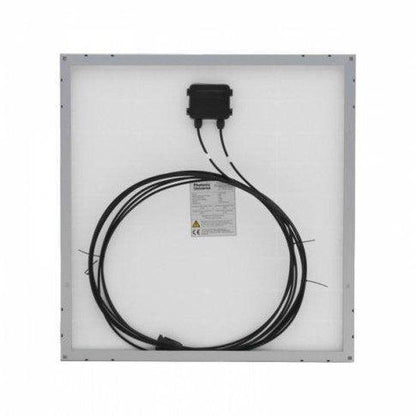

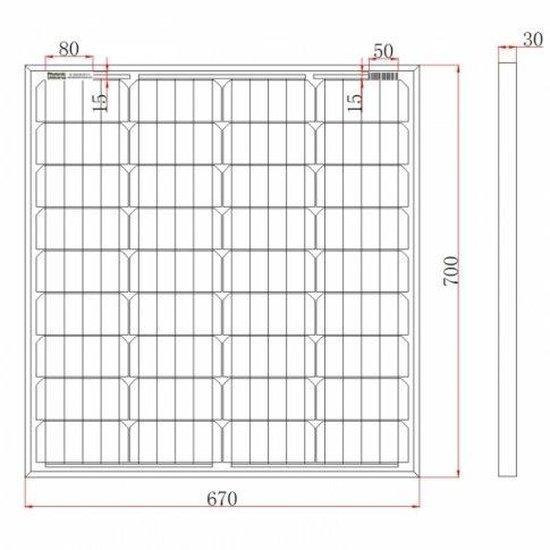

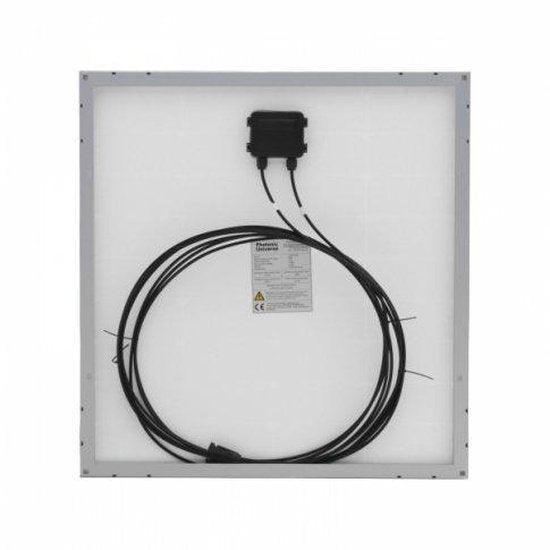

• Solar panel physical specs: Dimensions 700 x 530 mm; weight ≈6 kg (≈13.2 lb); 4 mounting holes 9 x 11 mm; fitted with 2x5 m high-quality single-core solar cables with MC4 connectors (heat-resistant, low-loss).

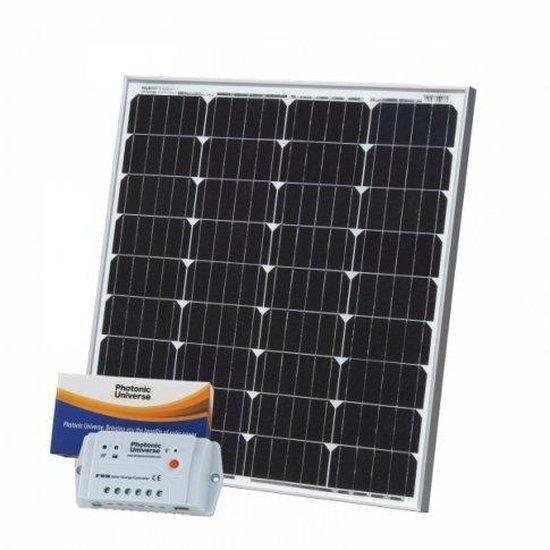

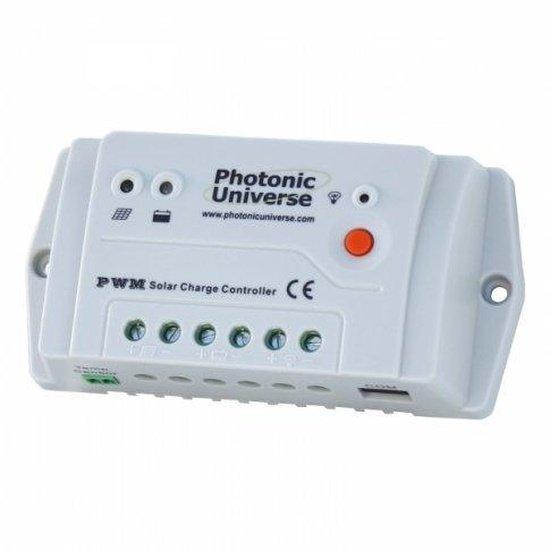

• 10 A solar charge controller: kit includes a 10 A 12/24 V Photonic Universe PWM solar charge controller designed to protect and prolong battery life — automatic cut-off, reverse-current protection and multiple safety functions (over-charge, over-discharge, overload, short circuit, overheating).
• Charge controller specifications: rated current 10 A; fully automated operation with auto 12/24 V selection; wide solar input range; self-consumption 8.4 mA (12 V) / 7.8 mA (24 V); working temperature -35°C to +50°C; terminals for wire up to 4 mm²; size 13.8 x 6.9 x 3.7 cm; weight 130 g; multiple mounting holes for ease of installation.
• Remote monitoring: the controller can be connected to a remote meter (MT50) with an LCD screen for monitoring and to optimise the charging process.
• Please note: this is an essentials kit and does not include mounting accessories or battery. Due to warehouse arrangements the solar charge controller may be shipped separately; see the Installation tab for electrical connection guidance.
• Applications and direct use: ideal for charging 12 V batteries to run lighting, instruments and accessories; can also supply direct power to equipment tolerant of input variation (e.g. pumps or motors) where appropriate.

Care & compatibility: the panel is waterproof for all-weather use. Use appropriate fusing and cable routes, check battery compatibility with a 10 A controller, and follow the Installation tab or a qualified installer for safe fitting. Fitting guidance: the panel can be fitted to flat roofs using metal brackets, rails or pole mounts; mounting brackets/rails are not included — choose fittings rated for marine or vehicle roofs where applicable.
