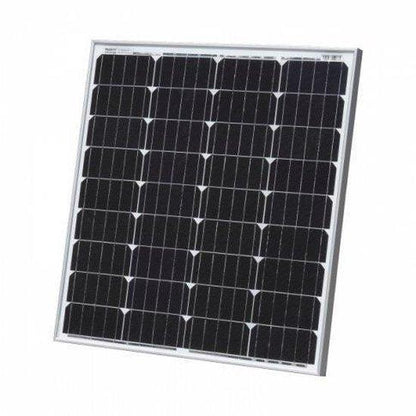

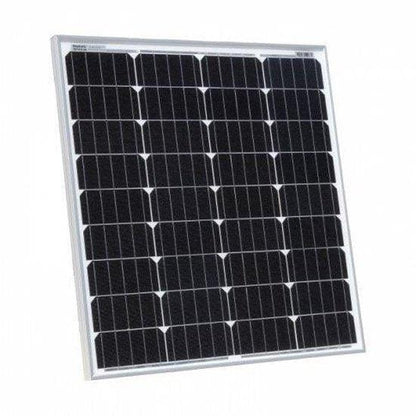

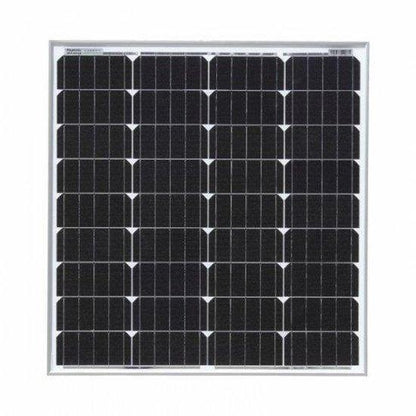

80W 12V solar panel with 2×5 m MC4 cables | 4Boats

High-efficiency waterproof 80 W 12 V monocrystalline solar panel with 5-busbar cells and a sealed aluminium frame, ideal for boats, camper vans, sheds and remote installations.

• Peak power: 80 W; Maximum power voltage (Vmp): 20.2 V; Maximum power current (Imp): 3.96 A.
• Open-circuit voltage (Voc): 23.9 V; Short-circuit current (Isc): 4.21 A; Power allowance range: ±3%.

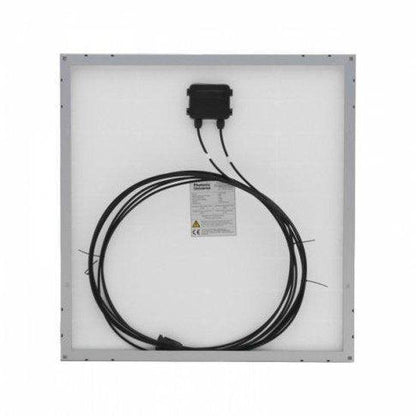

• 2 x 5 m (2 x 16.4 ft) high-quality single-core solar cable rated for high rooftop temperatures; male/female MC4 connectors fitted (can be cut for direct wiring).

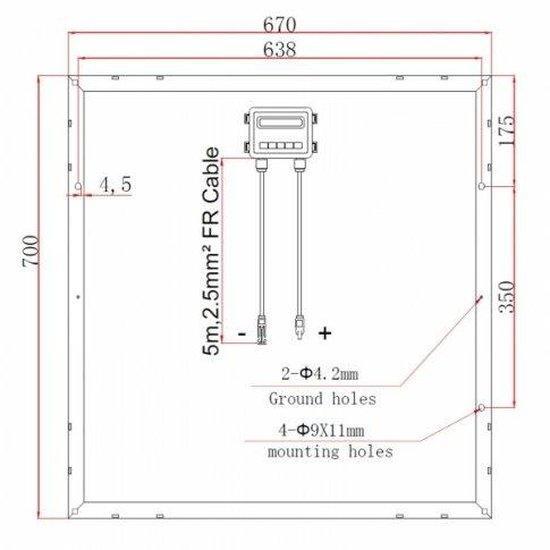

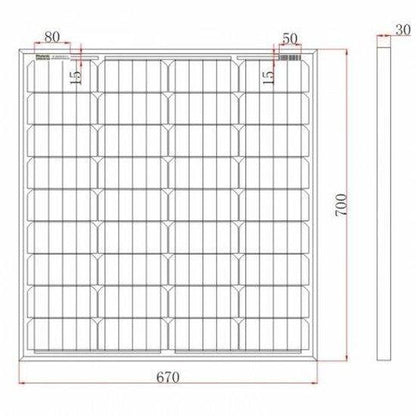

• Dimensions: 700 x 30 mm (27.6 x 1.2 in) — see downloadable technical drawing for full dimensions and mounting pattern.
• Weight: approx. 6 kg (13.2 lb).
• 4 mounting holes, size 9 x 11 mm.
• Innovative 5-busbar monocrystalline solar cells for improved efficiency and better performance in higher ambient temperatures.
• Waterproof, long-lasting sealed construction with a tough aluminium frame for permanent outdoor use in all weather.
• Requires a solar charge controller/regulator to charge 12 V batteries or battery banks.
• Installation: this panel is not supplied with an installation manual; installation should be carried out by a competent person or installer. See downloadable documents for cell manufacturer and installation details.
• Compatible with standard solar charge controllers; technical drawing and other documents available to download for more information.
