80W Reinforced Semi-Flexible ETFE Solar Panel | 4Boats

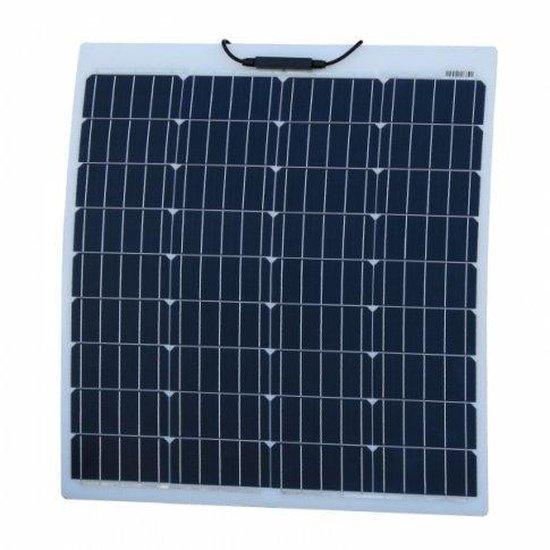

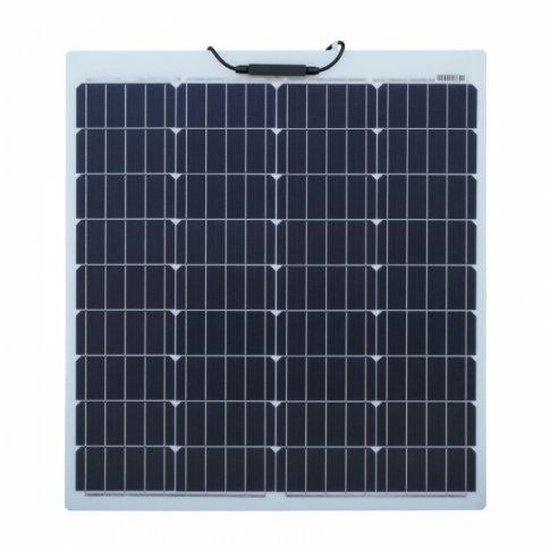

Durable 80W semi-flexible solar panel with reinforced anodised-aluminium core and a hard-wearing ETFE surface, ideal for slightly curved roofs and marine or caravan use.

• Strong ETFE coating and 7-layer construction: this reinforced semi-flexible solar panel has a unique 7-layer construction, featuring a fully encapsulated sheet of anodised-aluminium for extra strength and resilience.
• High quality 5-busbar solar cells: this panel features innovative 5-busbar monocrystalline cells, which are more efficient than typical 2/3/4-busbar designs to extract more power per area.
• Semi-flexible benefits: the design makes it ideal for slightly curved roofs and surfaces where a rigid panel is impractical.
• Electrical specifications: Peak power 80W, Maximum power voltage (Vmp) 20.2 V, Maximum power current (Imp) 3.96 A.
• Additional electrical data: Open-circuit voltage (Voc) 23.9 V, Short-circuit current (Isc) 4.2 A, Power allowance range: ±5%.

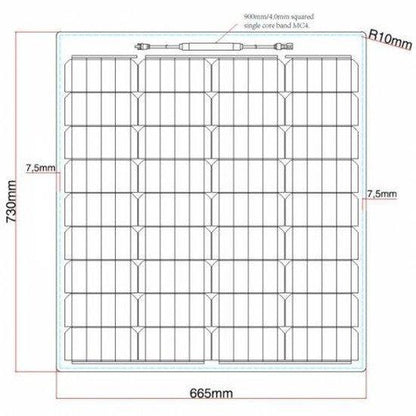

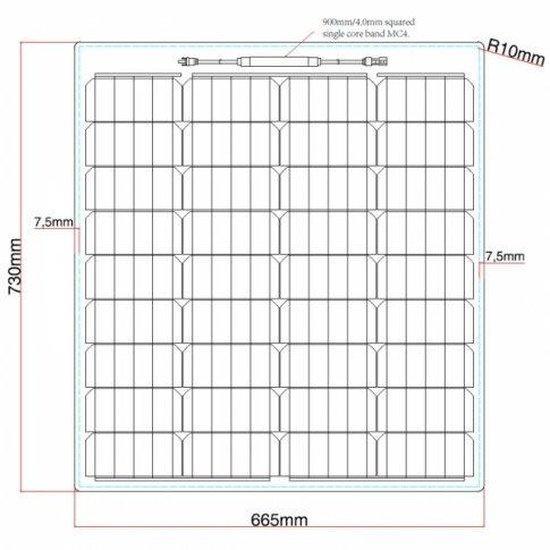

• Dimensions & weight: Solar Panel Dimensions: 730 x 665 x 4 mm (28.7 x 26.2 x 0.16 in); Junction box 90 x 16 x 16 mm (3.54 x 0.63 x 0.63 in); Weight 3.10 kg (6.83 lb).
• Charging a 12 V battery: requires a solar charge controller / regulator — do not connect directly to the battery.
• Supplied with a manual; before installing this solar panel, please read the handling and fitting guide. Downloadable documents available: Technical Drawing of 80W Reinforced Semi-flexible Solar Panel ARFLX-80M and Handling guide.

Care & compatibility: suitable for permanent outdoor use on motorhomes, caravans, campers and boats; ensure correct mounting and use of a compatible charge controller for 12 V systems.
