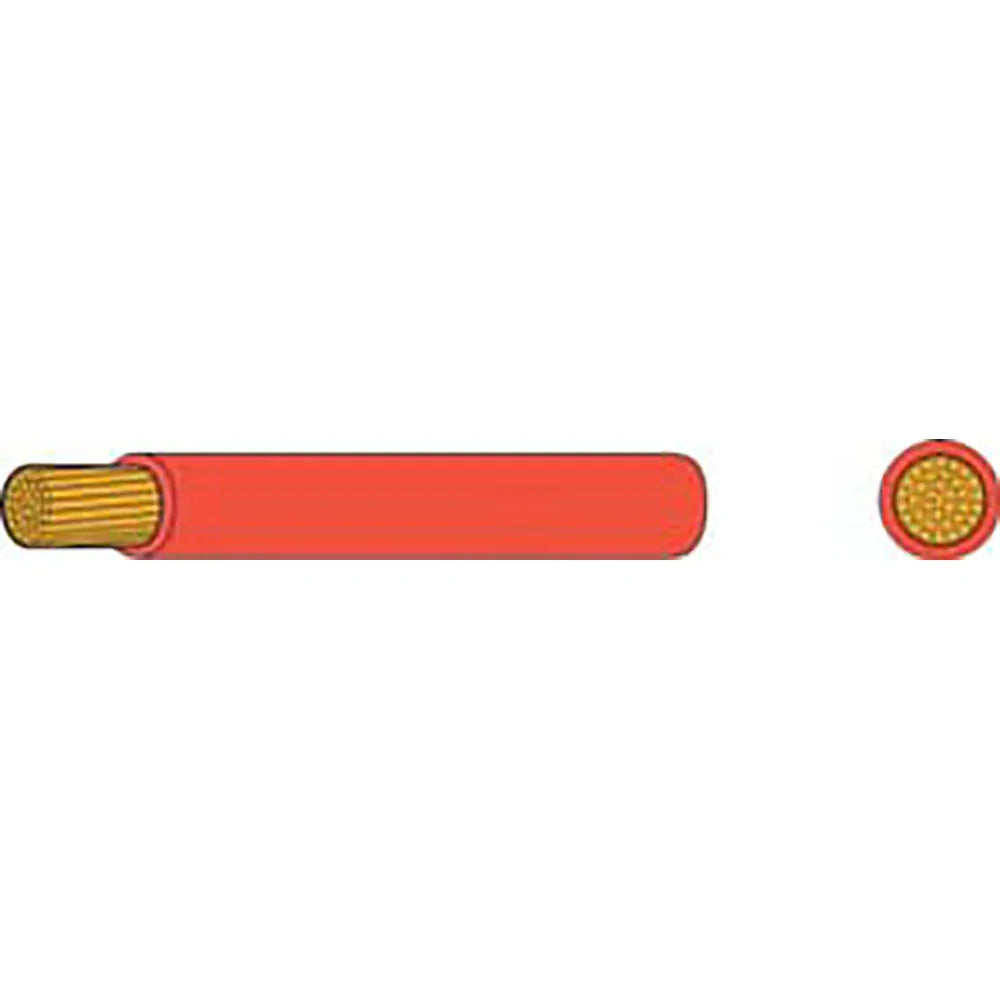

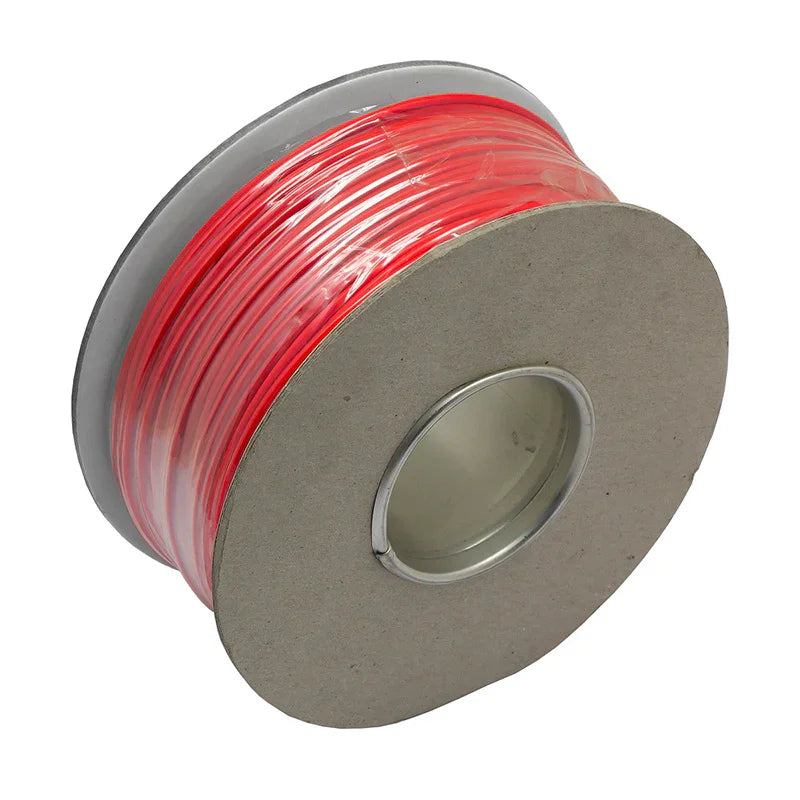

AMC Thin Thin Thin 2.5 mm² Thin-Wall Cable Red — 50 m Reel | 4Boats

AMC Thin red 2.5 mm² thin-wall single-core cable on a 50 m reel, suitable for marine and automotive 12V/24V systems.

• 2.5 mm² conductor, 35/0.30 mm (≈13 AWG)
• Reel length 50 m (164 ft)
• Nominal current rating 29.0 A
• Max loading: 12 V = 348 W; 24 V = 696 W
• Max resistance p/m at 20°C: 0.00760 Ω
• Max overall diameter 2.75 mm (0.11 in)
• Manufactured in accordance with ISO6722-1: 2011 (Class B)
• PVC insulated; good resistance to petrol, diesel, lubricating oils and diluted acids
• Suitable for use at temperatures from -40°C to 105°C; good moisture resistance

Order the 50 m reel for neat installations or contact us for technical data and compatibility with your system.
