AMC Thin Thin Thin Single Core Cable Red 0.5 mm² x 100 m | 4Boats

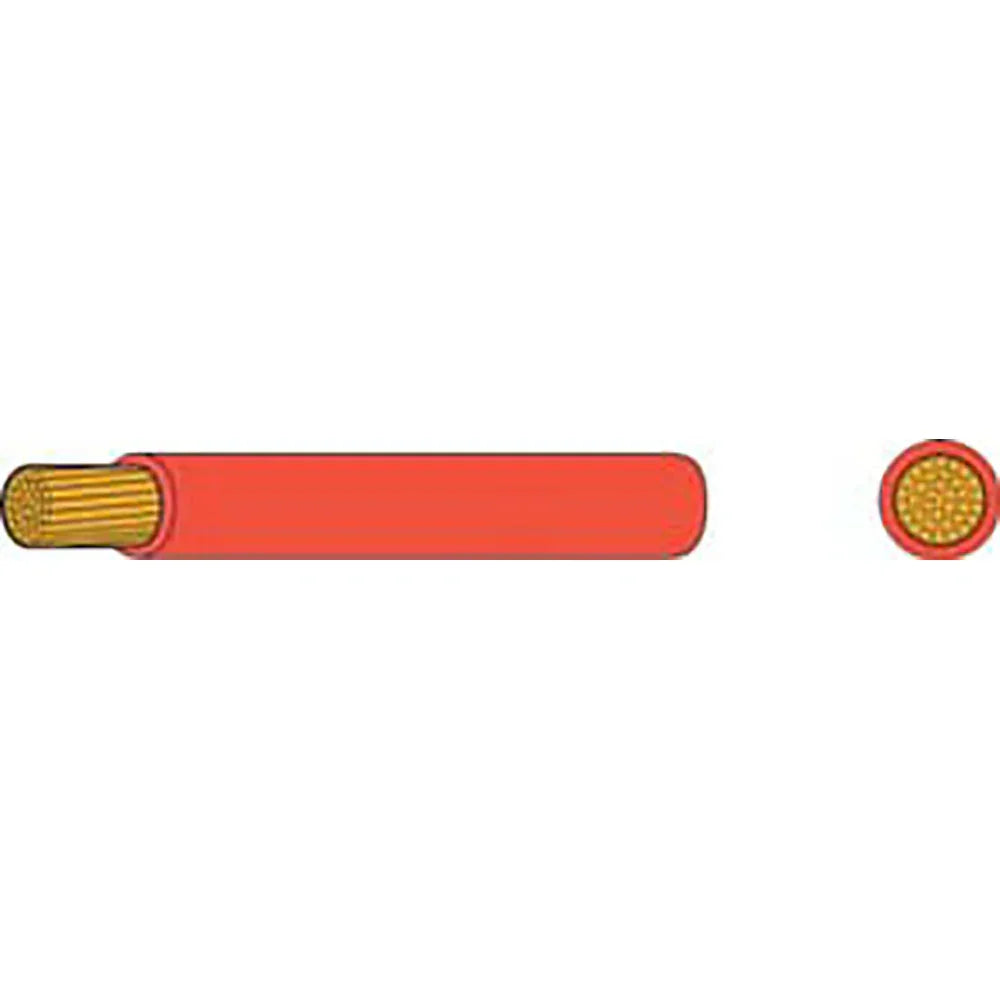

AMC Thin 0.5 mm² red single‑core thin‑wall cable on a 100 m reel, suitable for 12 V and 24 V low‑voltage wiring.

• 0.5 mm² conductor (16 × 0.20 mm strands)

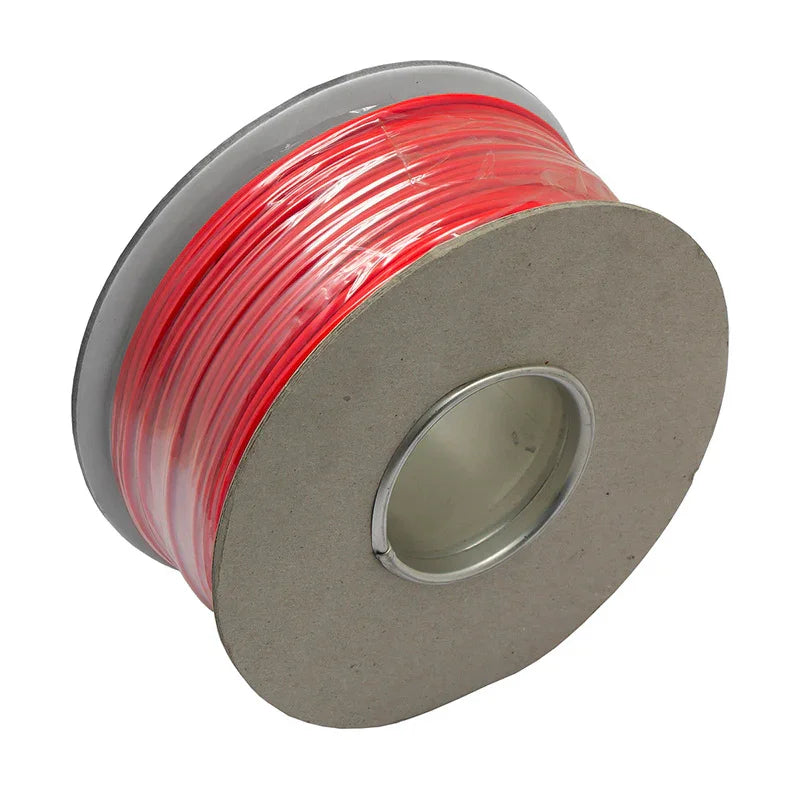

• Reel length 100 m (328 ft)
• Nominal current 11.0 A; max loading 12 V – 132 W, 24 V – 264 W
• Max resistance 0.0371 Ω per m at 20°C
• Max overall diameter 1.6 mm (0.Ø 6 in)
• Manufactured in accordance with ISO6722-1:2011 (Class B)
• PVC insulated
• Suitable for use at temperatures from −40°C to 105°C

Ideal for marine, automotive and general-purpose low‑voltage installations where a flexible, thin‑wall red single‑core cable is required.
