AMC Thin Thin Thin Thin-Wall Single Core Cable Black 0.75 mm² x 100 m

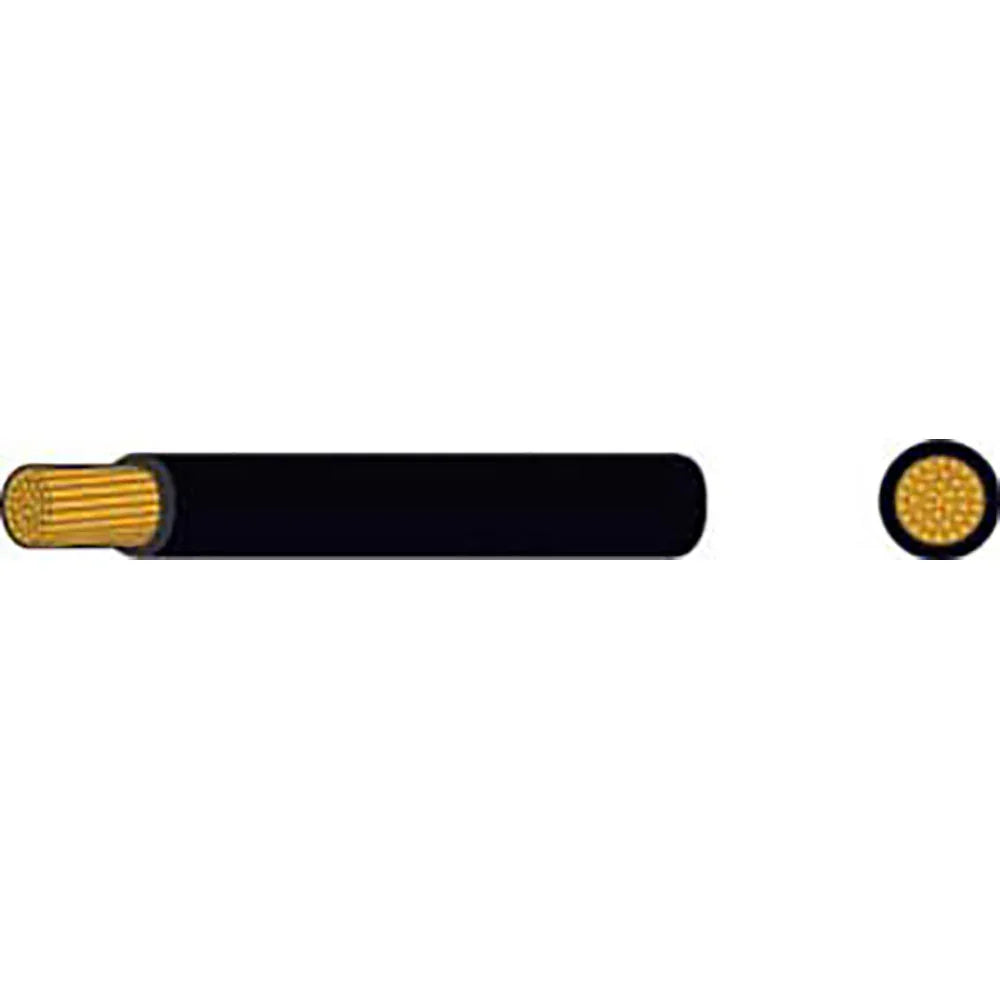

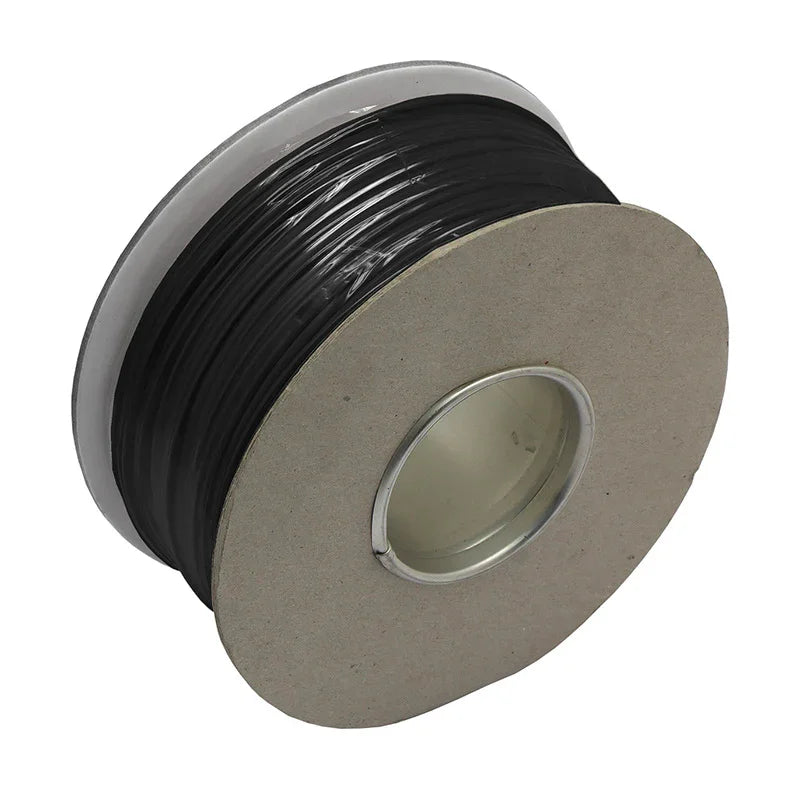

0.75 mm² thin‑wall single core cable in black on a 100 m (328 ft) reel — 24 × 0.20 mm strands for flexible marine and automotive wiring.

• Conductor: 24 × 0.20 mm strands, 0.75 mm²
• Colour/reel length: Black, 100 m (328 ft)
• Nominal current rating: 14.0 A
• Max loading (Watts): 12 V — 168 W; 24 V — 336 W
• Max resistance per metre at 20°C: 0.0247 Ω/m
• Max overall diameter: 1.75 mm (0.Ø 69 in)
• Manufactured in accordance with ISO6722-1: 2011 (Class B); PVC insulated; Suitable for use at temperatures from -40°C to 105°C
• Good resistance to petrol, diesel, lubricating oils, diluted acids and moisture
