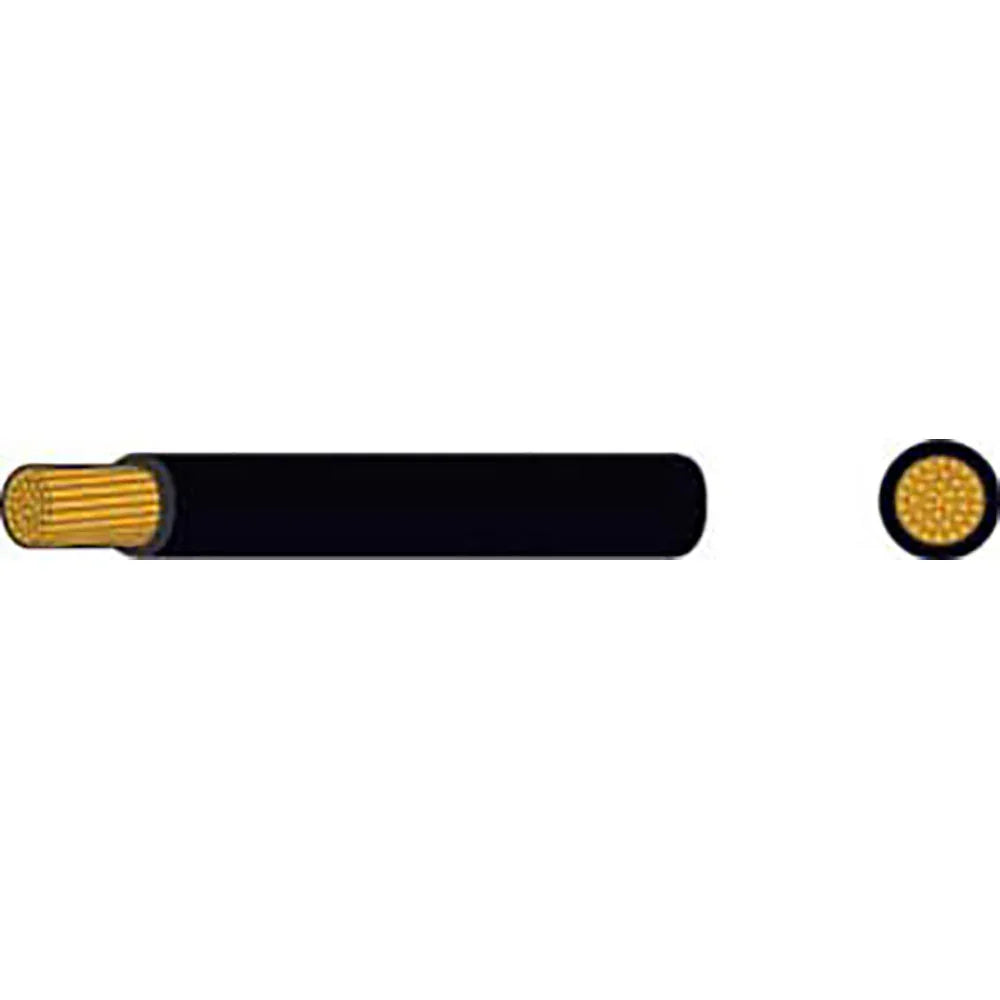

AMC Thin Thin Thin Thin-Wall Single Core Cable Black 2.5 mm² x 50 m

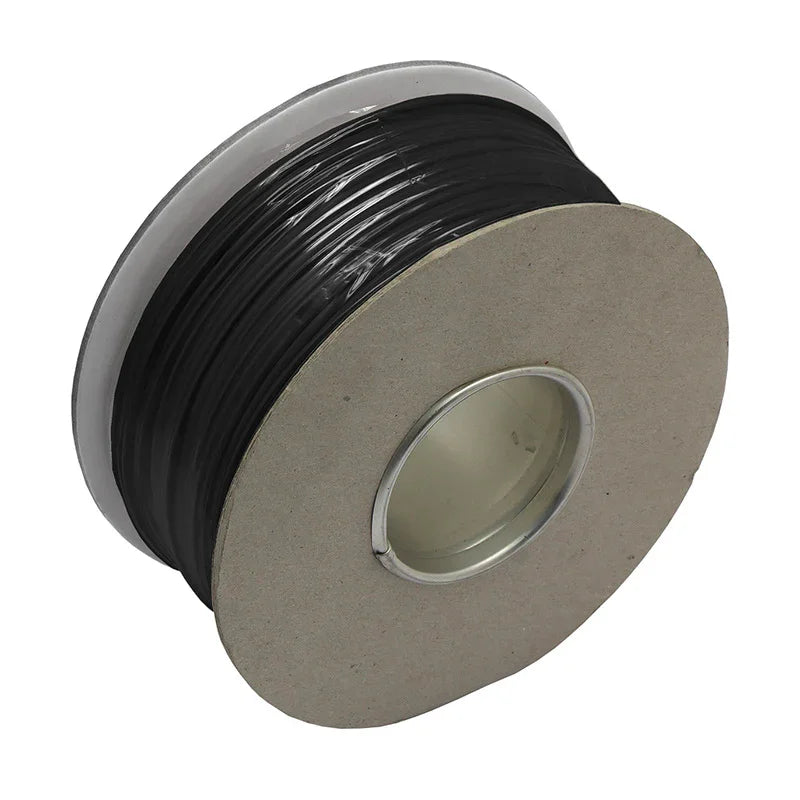

2.5 mm² thin-wall single core cable, black, supplied on a 50 m reel — suitable for marine and automotive wiring.

• Manufactured in accordance with ISO6722-1: 2011 (Class B)
• PVC insulated
• Suitable for use at temperatures from -40°C to 105°C
• Conductor: 2.5 mm², 35/0.30 mm (≈13 AWG)
• Nominal current rating: 29.0 A
• Max loading: 12 V – 348 W; 24 V – 696 W
• Resistance: 0.00760 Ω per m at 20°C
• Reel length: 50 m (164 ft); max overall dia: 2.75 mm (0.108 in)
