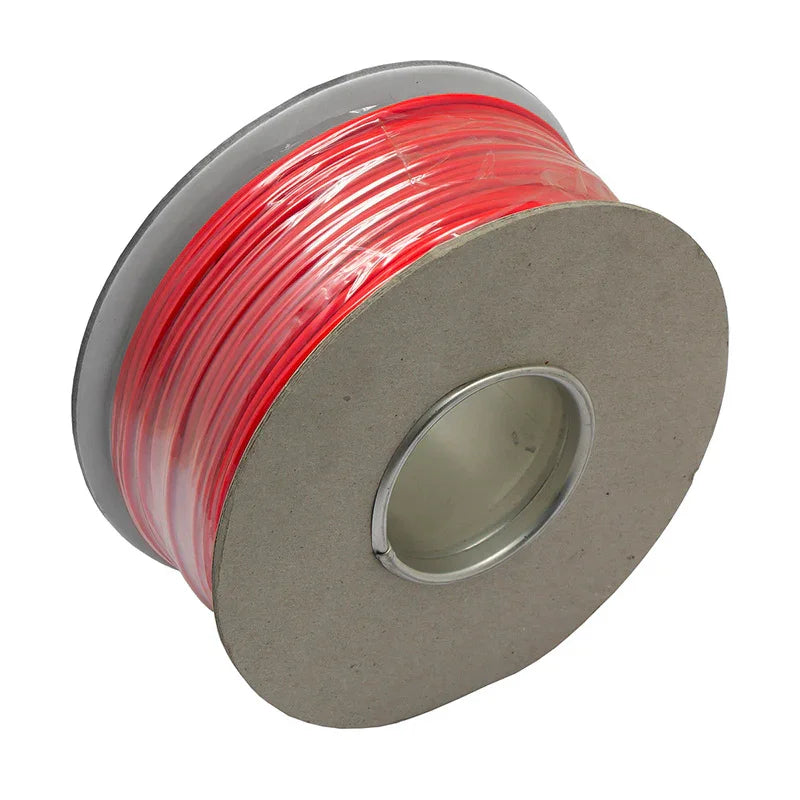

AMC Thin Thin Thin Thin-Wall Single Core Cable Red 0.75 mm² x 100 m

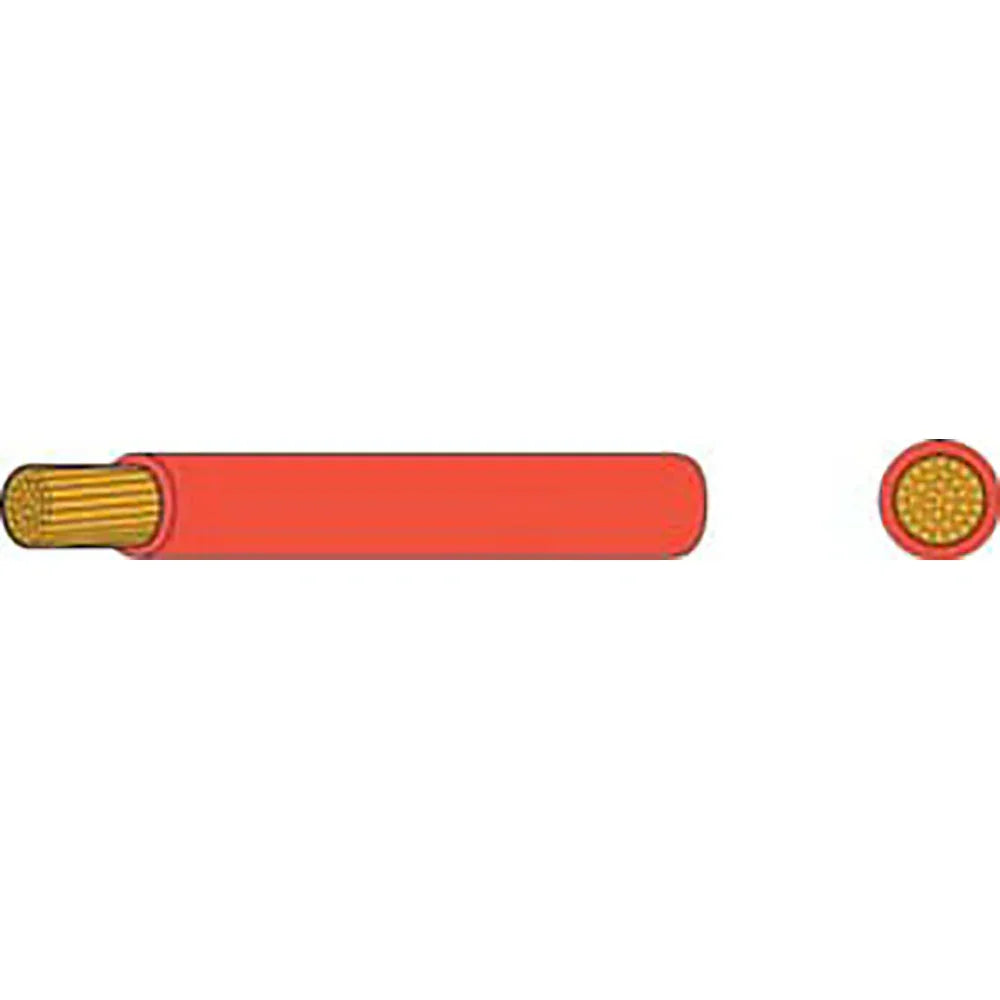

0.75 mm² thin‑wall single core cable in red on a 100 m reel — 24/0.20 mm conductor strands, ideal for marine and automotive wiring.

• Conductor: 0.75 mm² (24/0.20 mm) — red
• Length: 100 m (328 ft) reel
• Nominal current rating: 14.0 A
• Max load: 12 V — 168 W; 24 V — 336 W
• Max resistance: 0.0247 Ω/m at 20°C
• Max overall diameter: 1.75 mm (0.Ø 69 in)
• Manufactured in accordance with ISO6722-1:2011 (Class B)
• PVC insulated; suitable for use at temperatures from -40°C to 105°C; good resistance to petrol, diesel, lubricating oils, diluted acids and moisture
