Digital Yacht iKonvert NMEA 2000 to NMEA 0183 Gateway | 4Boats

Digital Yacht iKonvert NMEA 2000 to NMEA 0183 Gateway | 4Boats

4Boats

£181.80
£181.80
Sale Sold out
Shipping calculated at checkout.

Description

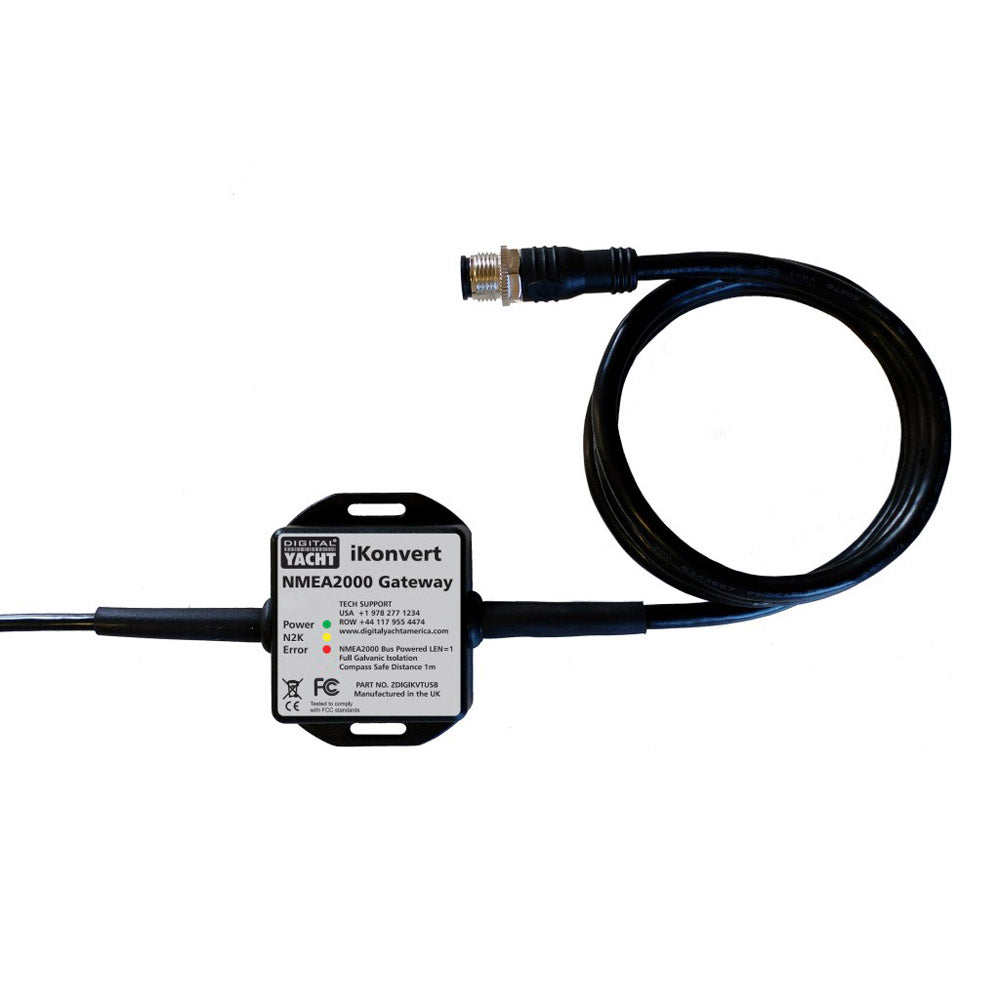

The Digital Yacht iKonvert is a compact, bi-directional gateway that converts NMEA 2000 and NMEA 0183 data, allowing new NMEA 2000 instruments to communicate with legacy NMEA 0183 plotters, displays and autopilots.

  • Bi-directional NMEA 2000 - NMEA 0183 conversion; powered from the NMEA 2000 network
  • Opto-isolated NMEA Ø 183 interface with full galvanic isolation
  • Supports AIS (VDM/VDO), GPS (RMC, GGA) and instrument sentences such as MWV, DPT, DBT and XDR
  • Selectable 'real life' data modes via internal DIP-switch configuration
  • Supported NMEA 0183 baud rates: 4800 and 38400
  • NMEA 2000 connector: Micro-C (male) drop cable; integral NMEA 0183 cable included
  • Typical NMEA 2000 load: approx. 2 LEN (≈100 mA) when powered from the network
  • Compact, easy-to-mount housing; see the manual for exact dimensions and IP rating
  • Ideal for bridging new NMEA 2000 sensors and instruments to legacy plotters, chartplotters and autopilots
  • For full specifications and the user manual see Digital Yacht support
  • justify-content: flex-start
  • display: flex
  • flex-direction: column
  • background-position: left top
  • background-size: cover
  • background-repeat: no-repeat
  • background-attachment: scroll
  • border-style: none
  • border-width: 1px
  • border-radius: 0px
  • margin: 0px 0px 10px
  • padding: 10px
  • margin: 0px
  • padding: 0px

The Digital Yacht iKonvert is a compact, bi-directional gateway that converts NMEA 2000 and NMEA 0183 data, allowing new NMEA 2000 instruments to communicate with legacy NMEA 0183 plotters, displays and autopilots.

  • Bi-directional NMEA 2000 - NMEA 0183 conversion; powered from the NMEA 2000 network
  • Opto-isolated NMEA Ø 183 interface with full galvanic isolation
  • Supports AIS (VDM/VDO), GPS (RMC, GGA) and instrument sentences such as MWV, DPT, DBT and XDR
  • Selectable 'real life' data modes via internal DIP-switch configuration
  • Supported NMEA 0183 baud rates: 4800 and 38400
  • NMEA 2000 connector: Micro-C (male) drop cable; integral NMEA 0183 cable included
  • Typical NMEA 2000 load: approx. 2 LEN (≈100 mA) when powered from the network
  • Compact, easy-to-mount housing; see the manual for exact dimensions and IP rating
  • Ideal for bridging new NMEA 2000 sensors and instruments to legacy plotters, chartplotters and autopilots
  • For full specifications and the user manual see Digital Yacht support
  • justify-content: flex-start
  • display: flex
  • flex-direction: column
  • background-position: left top
  • background-size: cover
  • background-repeat: no-repeat
  • background-attachment: scroll
  • border-style: none
  • border-width: 1px
  • border-radius: 0px
  • margin: 0px 0px 10px
  • padding: 10px
  • margin: 0px
  • padding: 0px
View full details
