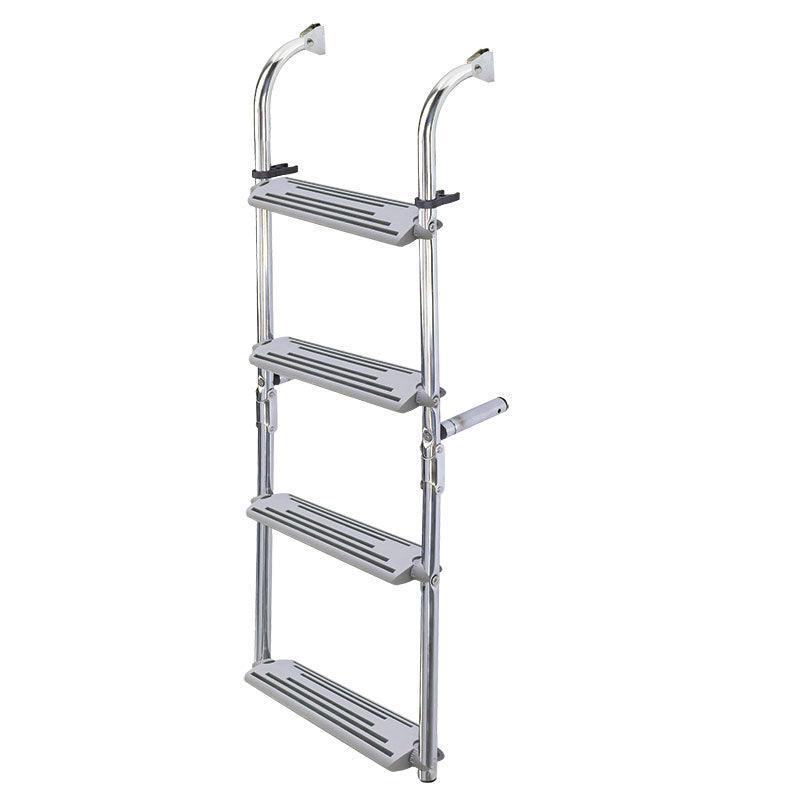

Foldable Ladders 90° 316 Stainless Boarding Ladder | 4Boats

Product details

• 316 (A4) stainless steel, corrosion-resistant for marine use.
• 90° folding mechanism for low-profile stowage.
• Grey anti-slip step treads for secure footing when wet.
• Load rating: 150 kg (subject to correct installation).
• Tube diameter: 25 mm stainless tubing.
• Available in five sizes to suit different transom heights; compact stowage when folded.
• Mounting: bolt-through stainless mounting plate; mounting brackets and stainless hinge pins included; bolts, washers, nuts and backing plates not included.
• Care: rinse with fresh water after saltwater use; wipe dry and periodically inspect fastenings and hinge points; use a mild marine stainless cleaner for stubborn marks.
• Includes: ladder (selected size), stainless mounting brackets, hinge pins, and user instructions.

Fitment & sizing

• Sizes (step count — extended length — folded projection — recommended transom height):
  • 3-step — extended 900 mm — folded projection 120 mm — transoms 600–900 mm
  • 4-step — extended 1,200 mm — folded projection 120 mm — transoms 900–1,200 mm
  • 5-step — extended 1,500 mm — folded projection 120 mm — transoms 1,200–1,500 mm
  • 6-step — extended 1,800 mm — folded projection 120 mm — transoms 1,500–1,800 mm
  • 7-step — extended 2,100 mm — folded projection 120 mm — transoms 1,800–2,100 mm
• Step spacing: nominal 300 mm between treads.
• Mounting hole centres (plate): 160 mm (centre-to-centre horizontal) × 40 mm (vertical); recommended bolt size: M8 marine-grade stainless steel.
