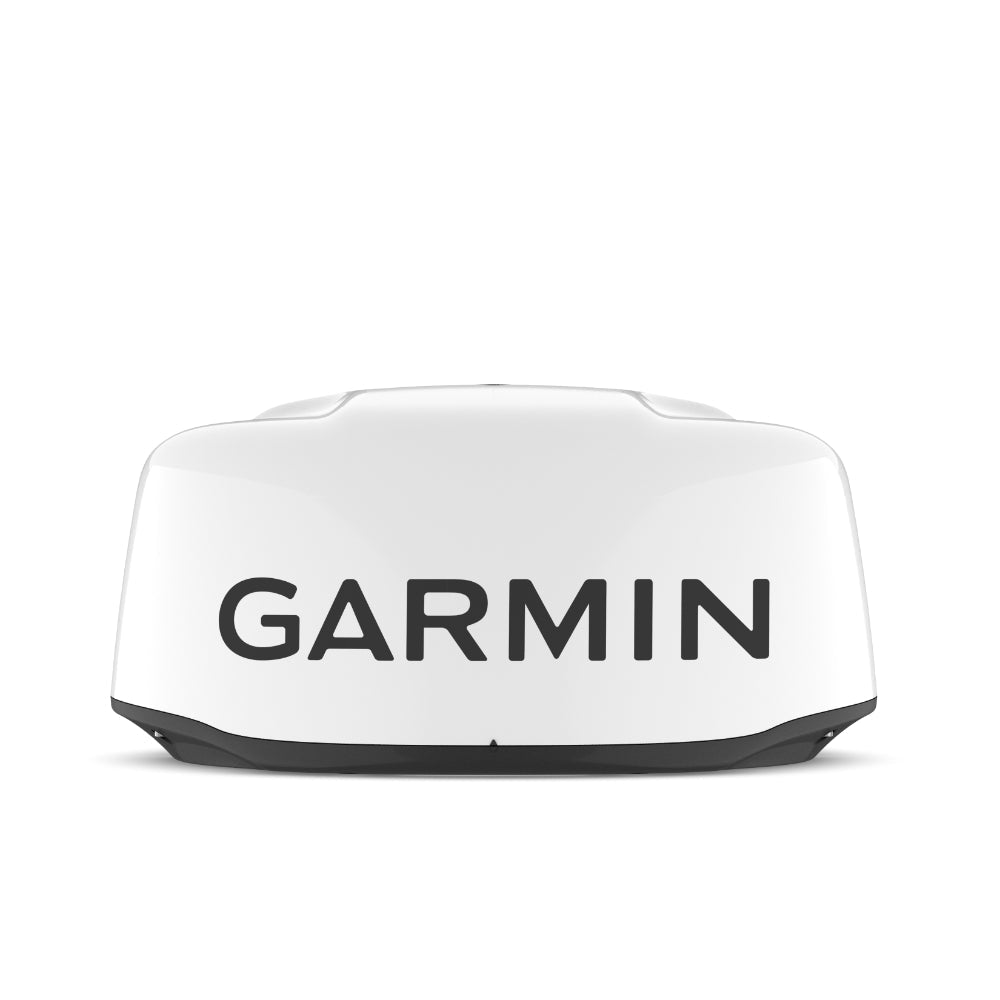

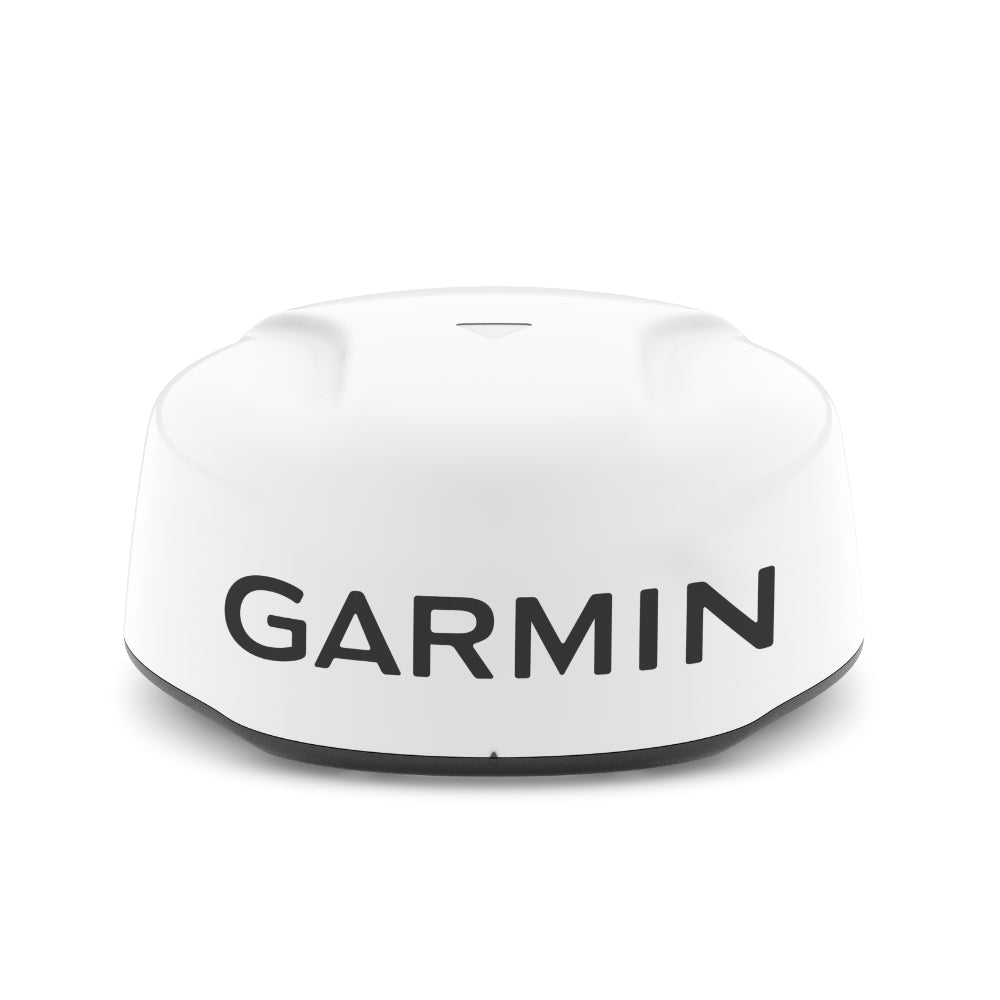

Garmin GMR 18 HD3 Radome with 15m Cables

• 4kW Power output 36 Nautical mile max range
• Space saving 18" dome
• MARPA Target Tracking
• Dynamic auto gain and sea filter
• Dual radar support
• Quiet dome drive motor

This compact 18"³ dome radar combines ease of use with powerful scanning features that work to maximise confidence and situational awareness on the water.

Top Features

Dual Radar Support - Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

Dynamic Auto Gain - Gain automatically adjusts levels to optimum settings.

Dynamic Sea Filter - Radar gain automatically adjusts sea clutter for calm medium and rough sea conditions.

Radar Overlay - Overlay radar images onto the chartplotter's map page. Add an optional autopilot or heading sensor (sold separately) for best results.

MARPA Target Tracking - MARPA tracks selected targets to help keep track of other vessels and avoid collisions (with appropriate sensors sold separately).

Low Noise Scanning - The reliable GMR HD3 dome drive motor spins at a fixed 24 rpm offering reliable low-noise operation and minimal power consumption.

See What to Expect From Whatever's Out There

Compact and Powerful - 4kW of transmit power 36-nautical mile maximum range and clear echo definition at all ranges.

Close-in Target Scanning - Minimum scanning range of 20 metres for excellent short-range detection and target detail.

High-Resolution Radar - 8-bit true colour for outstanding target separation with less screen clutter.

Timed Transmit Mode - Specify transmit times down to the seconds to help reduce power consumption.

Intuitive Operation - No complex user settings so it's easy to install and start using.

In The Box

• GMR 18 HD3 dome radar
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Mounting hardware kit and template
• Installation instructions
