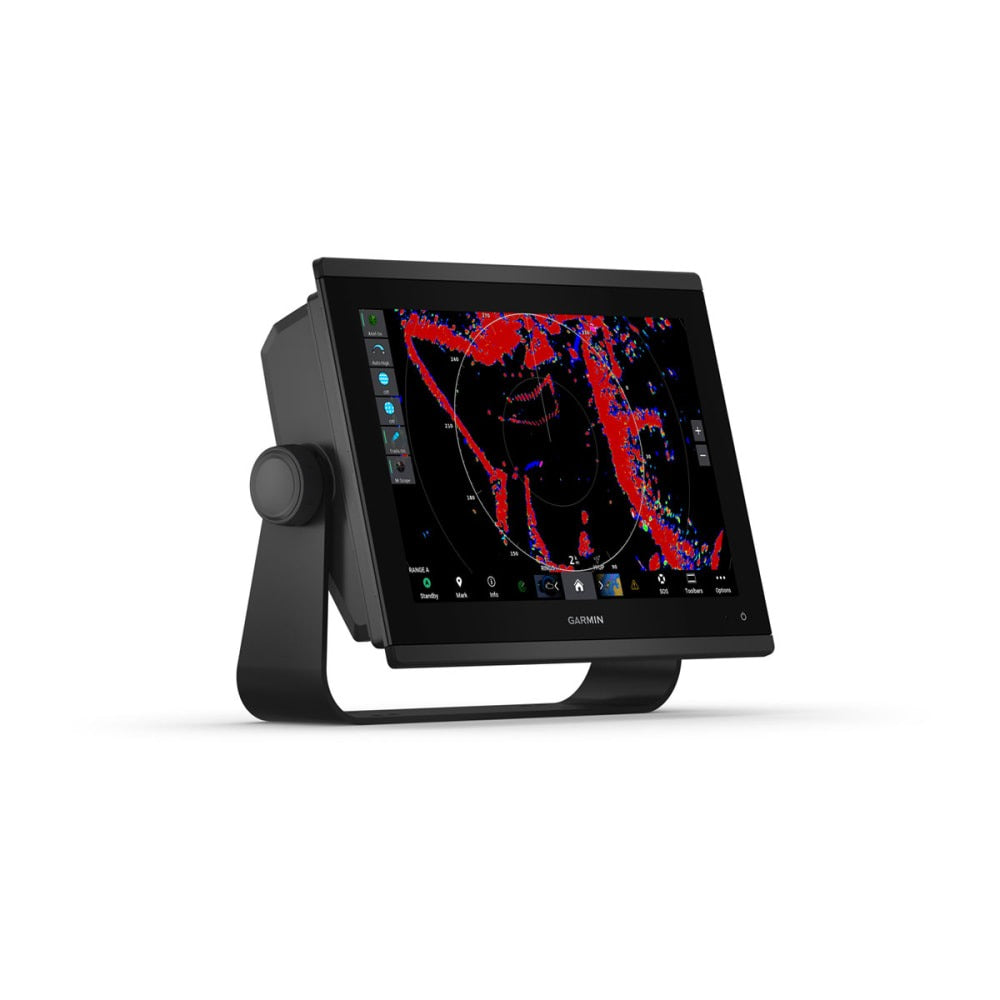

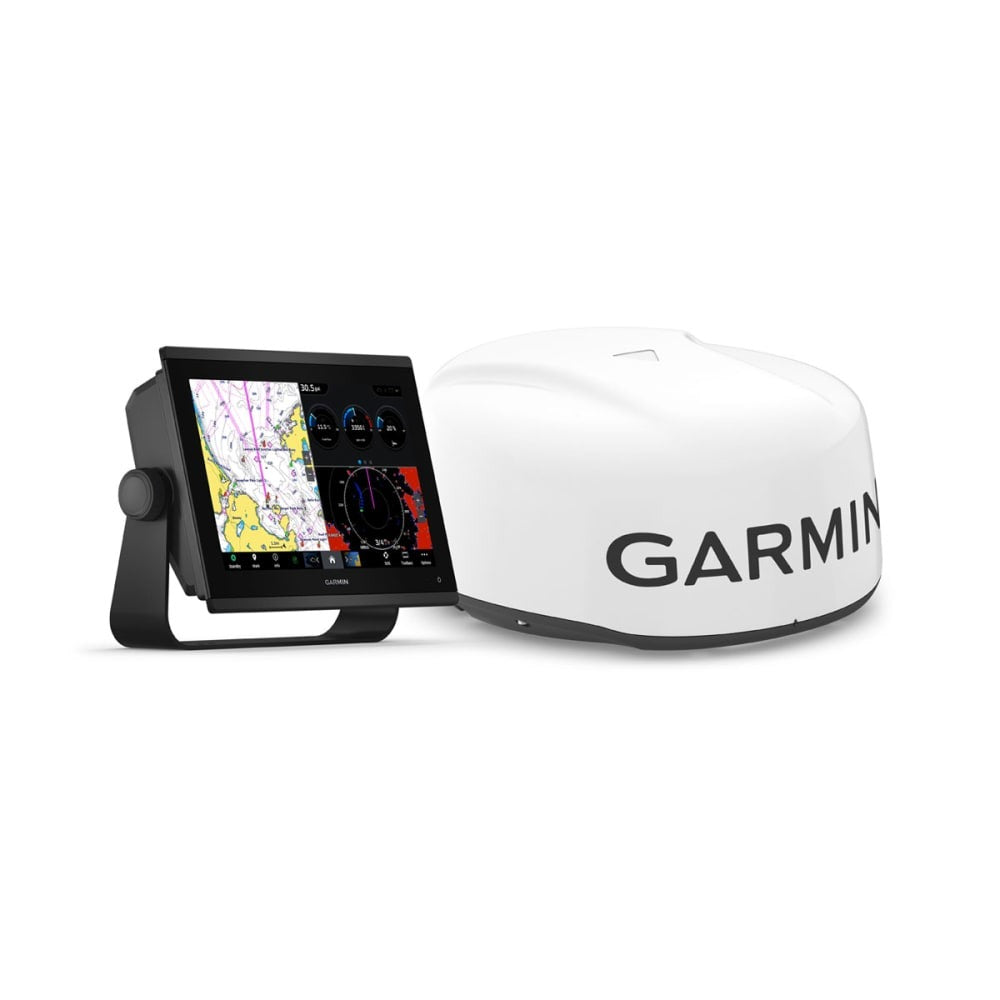

Garmin GPSMAP 1223xsv & GMR 18 HD3 Radome

• Easily integrate with more engines
• Connect to compatible third-party devices with OneHelm digital switching
• Easily build a marine system using the best of network connectivity
• Support for Garmin Navionics+ and premium Garmin Navionics Vision+ cartography.
• See below the boat with built-in sonar capabilities
• Manage the marine experience from nearly anywhere
• Includes GMR 18 HD3 Radome with 15m Cables

Get A Sharper View From A Connected Helm

With its sleek design powerful processing and upgraded IPS display this advanced 12'³ chartplotter integrates seamlessly into a Garmin marine system. The compact 18'³ dome radar combines ease of use with powerful scanning features that work to maximise confidence and situational awareness on the water.

See The World Below

Ultra High-Definition Scanning Sonar - Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid high-contrast colour palettes to help distinguish fish from structure. GPSMAP X3 series also supports 1 kW CHIRP traditional sonar capabilities.

Panoptix & Livescope Sonar Support - Pair with Panoptix or LiveScope easy-to-interpret live sonar (transducer required sold separately) to see all around the boat in real time.

Made for the Helm

Faster Sharper Smarter - With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint it's easy to retrofit this plotter in a wider range of dash configurations.

Improved Display Optics - New higher-resolution IPS displays for 9'³ and 12'³ plotters offer improved sunlight readability and visibility from any angle with 50% more pixels than previous-generation 9'³ GPSMAP devices.

Charts and Maps - Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content access to daily updates Auto Guidance+ technology and more.

Includes GMR 18 HD3 Radome - To help avoid weather and traffic on the water the compact 4 kW GMR 18 HD+ dome radar is bundled with this GPSMAP chartplotter/sonar package.

Power-Pole Shallow Water Anchor - By networking selected Garmin chartplotters with a Force trolling motor and a compatible Power-Pole shallow water anchoring system access advanced boat control features from the plotter including smart anchor auto-deployment smart anchor jog auto stow anchor drag detection and auto guidance end-of-route anchoring.

Sail and Navigate with Ease

Garmin SailAssist Sailing Features - View laylines race start line guidance enhanced wind rose heading and course-over-ground lines true wind data fields and tide/current/time slider wind angle set and drift wind speed and more.

Optional Premium Navigation Features - These optional charts offer the best of Garmin and Navionics data Auto Guidance technology and other premium navigation features.

Sailing Polars - Use the polar table to see key data including how fast the boat should go at a certain wind angle and speed - know whether there is a need to adjust sail trim.

Garmin Marine Network - If there are multiple compatible Garmin devices on the boat share information - such as maps user data radar and IP camera video - among them.

NMEA 2000 and NMEA 0183 Networks - Connect to compatible autopilots digital switching weather Fusion-Link audio system media VHF AIS and more from one screen.

ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature smart notifications software updates Garmin Helm digital switching Garmin Quickdraw Community.

Integrated ANT Technology - Connect with devices such as quatix marine watches gWind Wireless 2 transducers transducers GNX Wind marine instruments and wireless remote controls.

Engine Connectivity - Connect the chartplotter to different kinds of engines including selected Yamaha engines.

OneHelm Feature - This feature brings together all the operations and capabilities of selected third-party devices such as EmpirBus digital switching on one screen.

Send InReach Device Messages - Pair an inReach satellite communicator to the chartplotter and type custom messages using the MFD's on-screen keyboard. Access the contact list or enter an email inReach address or phone number. Group messages by conversation for a texting-like experience.

In The Box

• GPSMAP 1223xsv chartplotter
• GMR 18 HD3 radome
• Radar Mounting hardware kit
• Radar Power cable (15 metres)
• Radar Network cable (15 metres)
• Installation instructions
• microSD card preinstalled
• GPSMAP Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 metres)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
• Mounting templates
