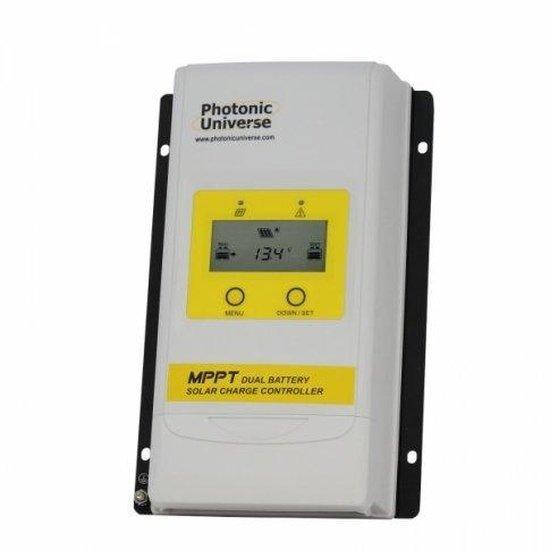

High 10A Dual Battery MPPT Controller 130/260W | 4Boats

High-efficiency 10 A MPPT solar charge controller with LCD display for two independent batteries; ideal for boats, campervans and motorhomes.

• Controller specifications: Advanced MPPT technology to ensure high efficiency (>95%) and a wide solar input voltage range (up to 60 V).
• Power rating: 130W for 12 V battery systems or 260W for 24 V systems; charge current 10 A with current limiting function (10 A).
• Dual Battery Charging: Main battery receives the bulk charge while the secondary battery is trickle charged up to 1 A; the two battery banks must have the same rated voltage (both 12 V or both 24 V).
• Compatibility: 100% compatible with Gel, AGM, Lead-Acid Flooded and Lithium (LiFePO4 or Li-NiCoMn) batteries.
• Advanced System Functionality: The controller automatically recognises 12/24 V battery systems.
• Full Range of Protection Functions: Electronic protections to prevent reverse current at night, over-charging, short circuit, reverse polarity and more; IP33 water-resistant when installed.
• Communication & grounding: RS485 interface for monitoring; negative common ground.
• Physical & electrical specs: Self-consumption <12 mA; working temperature -30°C to +80°C (-22°F to +176°F); size 227.2 x 143 x 58.1 mm (8.94 x 5.63 x 2.29 in); mounting dimensions 160 x 134 mm (6.30 x 5.28 in); weight 0.8 kg (1.76 lb); multiple mounting holes (5 mm / 0.20 in diameter).

Please read the supplied manual which explains wiring and operations.
