High TR1215BN 10 A MPPT Solar Charge Controller + LCD | 4Boats

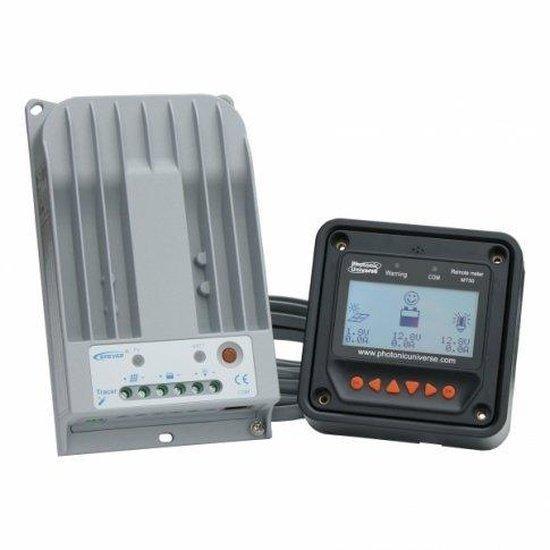

Compact 10 A MPPT solar charge controller with a remote LCD meter and 5 m cable, suitable for 12 V / 24 V battery systems and high-voltage solar arrays up to 150 V.

• MPPT Technology: Maximum Power Point Tracking (MPPT) to maximise harvest from panels and increase system efficiency.
• Solar input & limits: Accepts PV array voltages up to 150 V and handles a maximum combined input power of 130 W for 12 V systems or 260 W for 24 V systems.
• Full system protection: Comprehensive electronic protection including reverse current cut-off at night, over-charge and deep-discharge prevention, solar panel over-voltage, overload, short circuit and reverse polarity protection with self-diagnostic fault targeting.
• Remote meter / display: The controller comes with a remote LCD meter with 5 m cable. This meter displays panel and load voltage/current, battery state of charge, accumulated charge/discharge energy and min/max voltages.
• Factory default or personalised charging: Use standard factory settings or configure custom parameters. You will be able to:
  • Amend the battery type and capacity
  • Select charging volts for different charging stages
  • Specify the duration of each charging stage
  • Create a user-defined battery type with custom charging parameters
• Additional features: Works with sealed, gel, flooded or user-defined lead-acid batteries; current limiting function; negative common ground.
• Controller specifications: Model: TR1215BN. The most advanced MPPT technology to ensure high efficiency of your solar system. Communication port: RS485 / RJ45 (8‑pin). Maximum output current: 10 A.
• Electrical & physical: Controller self-consumption <60 mA (12 V), <30 mA (24 V). Working temperature -35°C to +55°C. Enclosure: IP30. Weight: 800 g (1.76 lb). Multiple mounting holes for ease of installation.
• Remote meter specifications: Self-consumption 15–65 mA (depending on backlight settings). RJ45 (8‑pin) communication cable 5 m included. Wall-mounting frame with mounting holes included. Operating temperature: -20°C to +60°C. Size (without frame): 10 x 10 x 3 cm (3.94 x 3.94 x 1.18 in). Size (with frame): 12 x 12 x 5 cm (4.72 x 4.72 x 1.97 in). Weight: 230 g (0.51 lb).

Suitable for marine and off-grid 12 V / 24 V systems; consult the downloadable user manual for TR1215BN for installation, wiring diagrams and detailed specifications.
