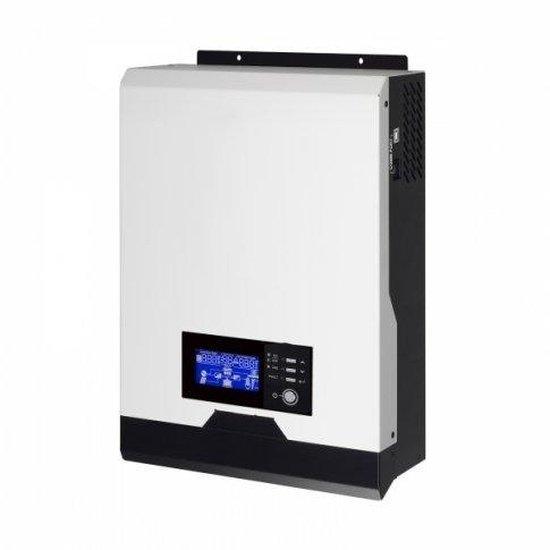

The Iconica 2000W 24 V hybrid inverter combines a 2000W pure sine inverter, 40 A MPPT solar charge controller and a 25 A smart mains charger in one portable UPS-capable unit for off-grid, mobile and backup power.

• 2000W 24 V Pure sine wave inverter: Converts DC current into 230 V AC mains; 2000W continuous (2000 VA) with 4000 VA peak for motor starts; 50/60 Hz, pure sine output for sensitive appliances.
• MPPT solar charge controller: The high efficiency MPPT controller regulates the input from the solar panels; up to 98% MPPT efficiency, maximum solar input power 1,000W and maximum open-circuit voltage 102 V.
• Enhanced 25 A Smart battery charger: Designed to enable safe and efficient unattended charging of a battery from mains power or a generator, with multi-stage and temperature-compensated charging and full overcharge protection.
• Charging limits and currents: Maximum solar charging current 40 A; MPPT operating voltage range 30 V–80 V; maximum mains AC charging current 25 A; maximum combined charging current 60 A.
• Advanced intelligent features: Output source priority and battery charging priority options; a range of highly customisable settings to tailor behaviour and protection stages to your system.
• User interface and communications: Illuminated LCD screen displays status and mode, input/output voltage, frequency, battery voltage, load power and other parameters; supplied with a 1.5 m PC connection cable and PC software CD for detailed monitoring (solar/battery/AC voltage, charging current, battery capacity etc.).
• Protection and reliability: Auto-restart after overload/overheat, predictive fan logic (intelligent cooling) and comprehensive protections for overcharge, reverse current, short circuit and temperature.
• Compatibility and physicals: Suitable for 24 V flooded and sealed GEL/AGM lead-acid batteries. Nominal battery voltage 24 V; peak efficiency 93%; operating temperature -10°C to 50°C (14°F to 122°F). Size 32 x 22.5 x 8.8 cm (12.6 x 8.9 x 3.5 in); weight 5.5 kg (12.1 lb); supplied with connection cable and PC software CD; 1 year manufacturer warranty.

For safe installation use correctly sized fusing and cable runs; follow the user manual and battery-maker guidance for charging profiles and maintenance. Ideal for remote properties, holiday boats, cabins and reliable backup systems.
