Iconica 3000W 24V Hybrid Pure Sine Inverter (80A MPPT) | 4Boats

The Iconica 3000W 24 V hybrid inverter combines a pure sine wave inverter, MPPT solar controller and smart mains charger in one compact unit, with inbuilt Bluetooth and UPS capability — battery optional.

• 3000W 24 V pure sine wave inverter: converts DC to 230 V AC mains to run household appliances; 3,000W continuous with 6,000 VA peak for motor-start loads; can operate directly from solar without a battery.
• Inbuilt 80 A MPPT solar charge controller (max VOC up to 500 V DC): high-efficiency MPPT regulation for up to 4,000W solar input, safely managing panel input to battery or load.
• Enhanced 60 A smart mains battery charger: multi-stage charging up to 60 A for safe, efficient unattended battery recovery and fast recharge.
• Inbuilt Bluetooth connectivity: monitor and configure the inverter remotely via the app to view solar/AC/battery voltages, charging current, battery capacity and system status.
• Power-without-battery and priority controls: unique ability to power AC loads directly from solar; selectable output source priority (solar/AC/battery) and battery charging priority options for bespoke system behaviour.
• Simplified installation: very high PV input voltage (up to 500 V DC) reduces string counts and heavy DC cabling, aiding easier installs in remote or mobile setups.

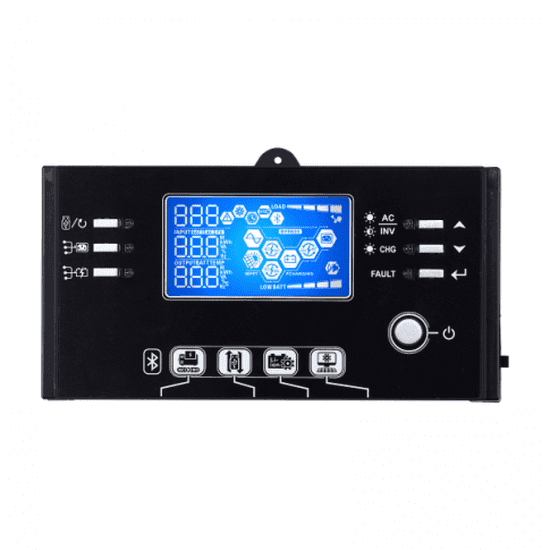

• Customisable display and controls: illuminated removable LCD screen with up/down keys to show status, mode, input/output voltage, frequency, battery voltage, load power and detailed parameters.
• Advanced protection & communications: supplied USB "On‑the‑Go" for data/firmware, generator auto‑start via dry contacts, auto‑restart after faults, BMS port for optional battery management connectivity and intelligent predictive fan cooling for longevity.

Compatibility: suitable for 24 V flooded and sealed GEL/AGM lead‑acid batteries; ensure correct battery type and charging profile are selected and use appropriately sized DC cabling and fusing for safe operation.
