Iconica 3000W 48V Hybrid Pure Sine Wave Inverter | 4Boats

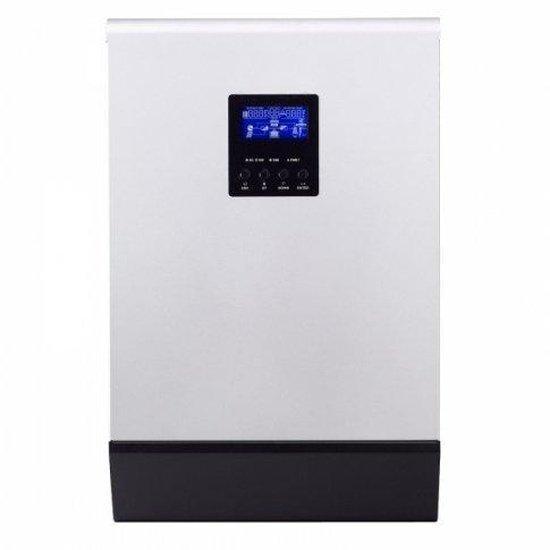

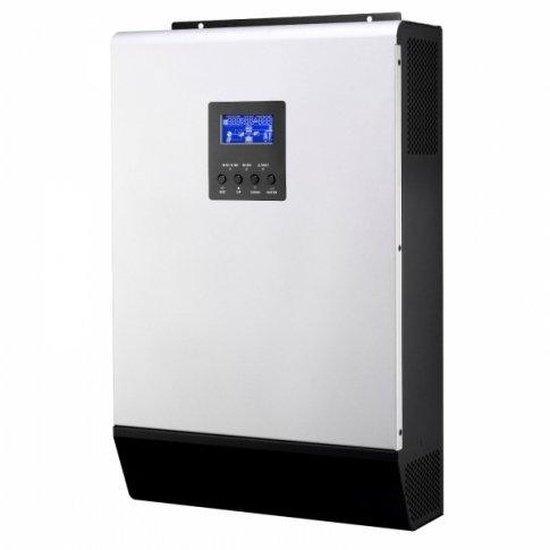

The Iconica 3000W 48 V hybrid inverter combines a pure sine wave inverter, a 60 A MPPT solar charge controller and a 15 A smart mains battery charger in one portable unit designed for off‑grid, mobile and backup applications.

• 3000W 48 V pure sine wave inverter: converts DC to 230 V AC (220–240 V AC), continuous 3000W / 3000 VA, surge 6000 VA (6 kVA); output frequency 50Hz / 60Hz; wide appliance compatibility.
• Inbuilt 60 A MPPT solar charge controller: regulates solar input to batteries with full protection against overcharge, overheating and reverse current; MPPT efficiency up to 98%; maximum solar input power 3000W; maximum open‑circuit solar voltage 145 V DC; maximum solar charging current 60 A.
• Inbuilt 15 A smart battery charger: safe unattended mains charging with multi‑stage algorithms; maximum mains AC charging current 15 A; maximum combined charging current 75 A.
• Hybrid inputs & UPS operation: accepts solar, mains or generator and battery inputs singly or in combination; Uninterrupted Power Supply ideal for unreliable or intermittent mains.
• Advanced intelligent features: output source priority, selectable battery charging priority modes, auto restart after overload/overheating, generator auto‑start via dry contacts and predictive fan logic for intelligent cooling.
• Illuminated LCD & communication: clear LCD shows status, mode, input/output voltage, frequency, battery voltage, load power, charging current and battery capacity; supplied with PC connection cable and PC software CD for detailed data and configuration.
• Compatibility: suitable for 48 V flooded and sealed GEL / AGM lead‑acid batteries; extensive customisable settings for battery types and charging stages.
• Performance & environment: nominal battery voltage 48 V; peak inverter efficiency 93%; solar/AC charger max efficiency 98%; operating temperature 0°C to 55°C (32°F to 131°F).

Install in a well‑ventilated, dry location and follow battery manufacturer guidance. Ideal for remote properties, boats, holiday homes or as a reliable mains‑saving backup system.
