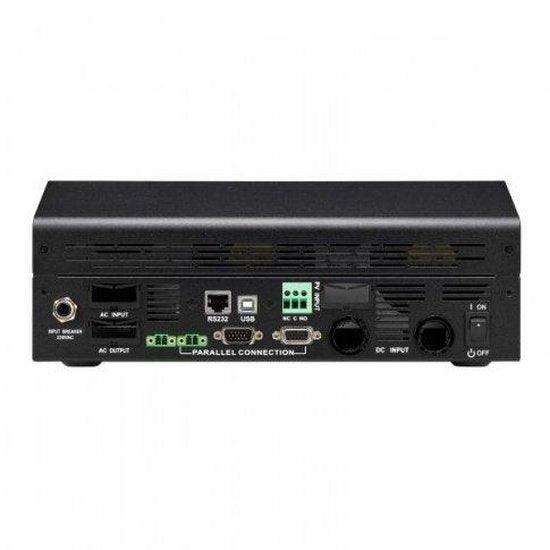

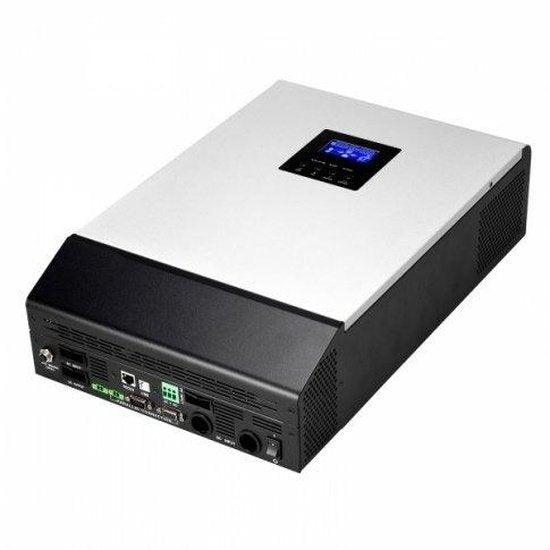

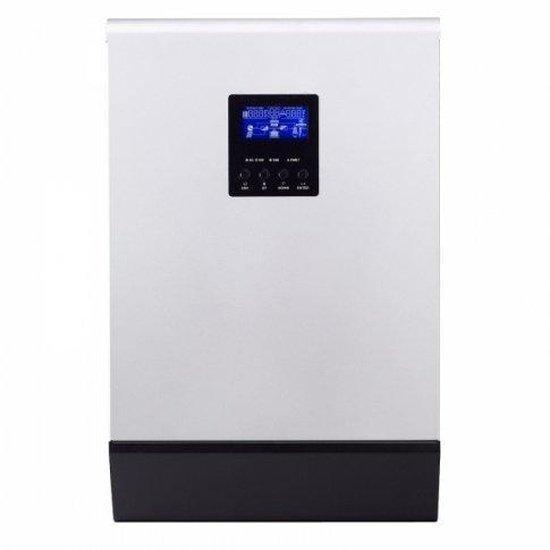

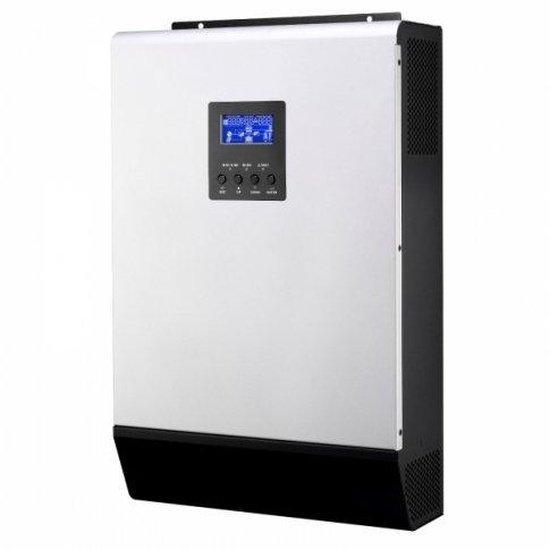

Iconica 5000VA 24V Hybrid Pure Sine Inverter with 80A MPPT | 4Boats

The Iconica 5000 VA 24 V hybrid pure sine inverter combines inverter, MPPT solar controller and smart charger in one portable UPS‑capable unit for off‑grid and backup use.

• Ideal for locations suffering from frequent power cuts. 5000 VA 24 V pure sine inverter: converts DC current into 230 V AC (220–240 V AC) mains. Continuous 4,000W / 5,000 VA, surge 10,000 VA, output waveform: pure sine, 50/60Hz.
• Inbuilt 80 A MPPT solar charge controller: regulates input from solar panels with full protection against overcharge, reverse current and overheating; MPPT efficiency up to 98%. Maximum solar input power 2,000W; maximum open‑circuit solar voltage 145 V.
• Enhanced 60 A smart battery charger: designed for safe, efficient and fast unattended charging (up to 60 A) with multi‑stage algorithms and selectable battery types for flooded, GEL/AGM and sealed lead‑acid batteries.
• System expansion potential: parallel capability to connect multiple identical units for greater continuous and surge power (units connected separately as required).
• Advanced intelligent features: output source priority selection, battery charging priority options and a wide range of highly customisable settings for charge currents, transfer thresholds and supply priorities.
• User interface and monitoring: illuminated LCD showing status and mode, input/output voltage, frequency, battery voltage, load power and capacity; supplied with PC connection cable and PC software for detailed monitoring and parameter changes.
• Auto and safety functions: auto restart after fault, generator auto‑start via dry contacts, comprehensive protections (overload, short circuit, overheat, reverse polarity) and intelligent cooling with predictive fan logic.
• Compatibility and applications: suitable for 24 V flooded and sealed/GEL/AGM lead‑acid batteries. Ideal for remote properties, boats, holiday homes, cabins and as an UPS or mains‑saving hybrid system.

Please refer to the product datasheet for a table of typical appliance power consumption and full technical specifications before installation.
