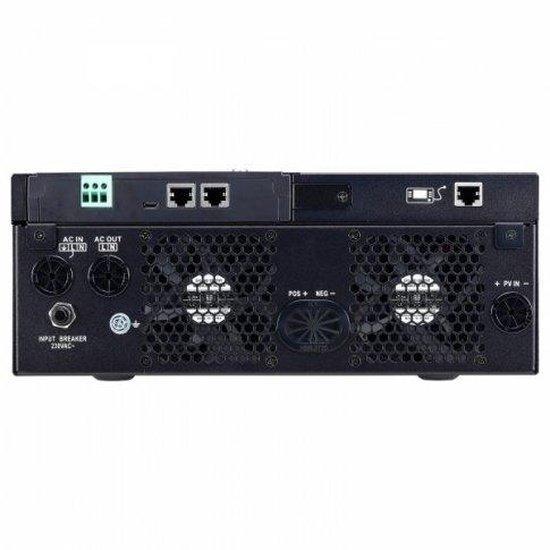

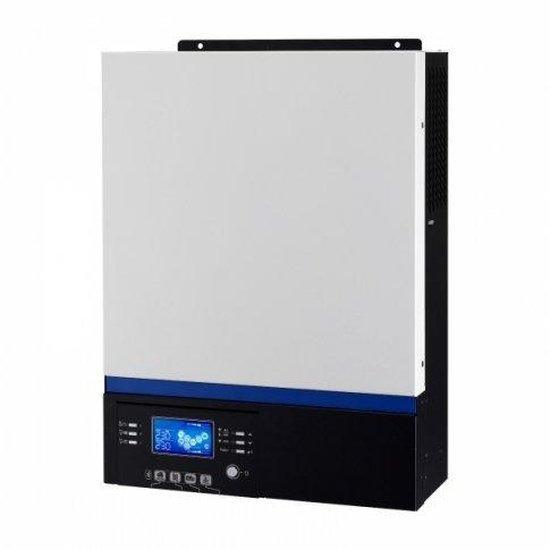

Iconica 5000W 48V Hybrid Pure Sine Inverter - 80A MPPT | 4Boats

The Iconica 5000W 48 V hybrid inverter combines a 5.0 kW pure sine inverter, an 80 A MPPT solar controller and a 60 A smart battery charger in one compact unit, with inbuilt Bluetooth and UPS capability.

• 5000W 48 V pure sine wave inverter: converts DC into 230 V AC mains to run TVs, laptops, fridges, microwaves and more — 5000W (5.0 kW / 6.7 hp) continuous with up to 10,000 VA (10.0 kVA) peak; can take power directly from solar without a battery.
• Inbuilt 80 A MPPT solar charge controller with high input voltage of up to 500 V DC: high‑efficiency MPPT regulates input from solar panels to batteries or load; supports up to 4000W solar input.
• Enhanced 60 A smart battery charger: designed for safe, efficient unattended charging up to 60 A with multi‑stage charging profiles to preserve battery life.
• Inbuilt Bluetooth connectivity: monitor and configure the inverter remotely via Bluetooth; menu offers a wide range of customisable settings.
• Load power without a battery & UPS function: able to power AC loads directly from solar and provide uninterrupted power when mains are unreliable or during switchover.
• Simplified installation: exceptionally high PV input voltage (up to 500 V DC) allows longer PV strings and reduced requirement for thick cables, lowering install cost and complexity.
• Output source priority & battery charging priority: set output source preferences (solar/AC/generator) and choose battery charging priority options to match system requirements.

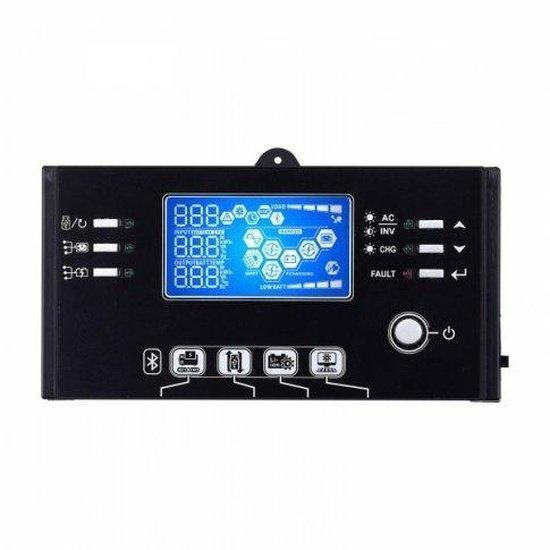

• Illuminated removable LCD screen & customisation: display shows status and mode, input/output voltage, frequency, battery voltage, load power and more; settings are easily changeable with up/down keys.
• Advanced communications and intelligent features: supplied with USB On‑The‑Go for firmware updates and data export; generator auto‑start via dry contacts; auto‑restart after overload/overheat; BMS port for optional battery management; predictive fan logic for intelligent cooling and extended component life.

Compatibility: suitable for 48 V flooded and sealed (GEL / AGM) lead‑acid and Li‑ion battery systems. Keep firmware updated via USB and follow battery manufacturer charging specifications for best performance.
