Iconica 5000W 48V Hybrid Pure Sine Inverter with 80A MPPT | 4Boats

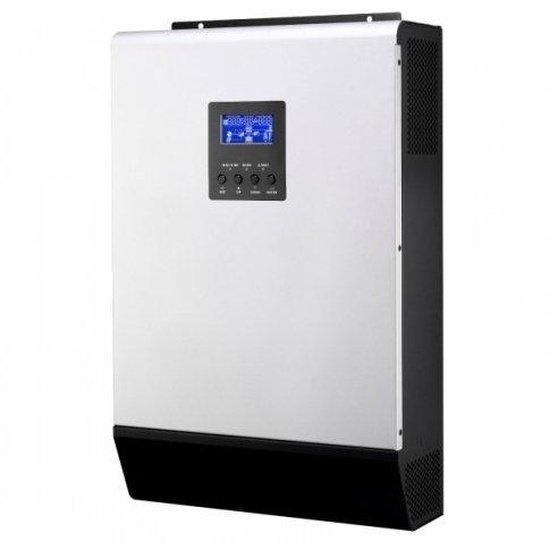

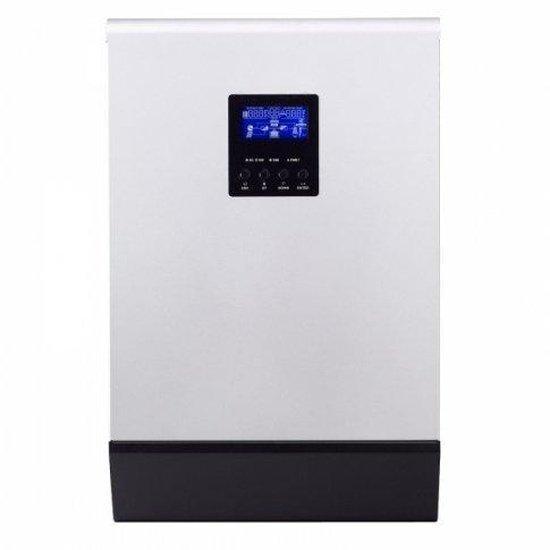

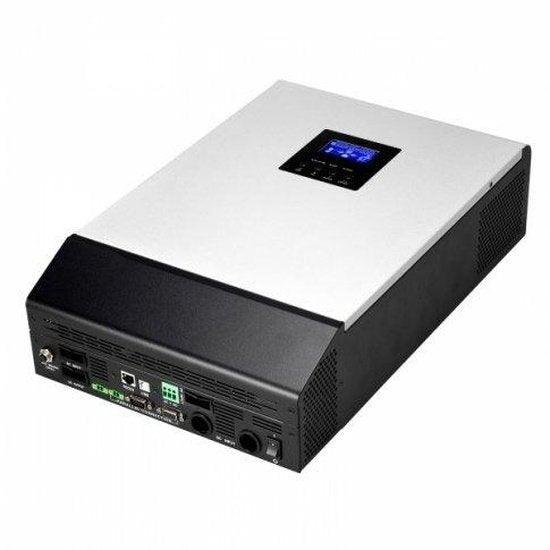

The Iconica 5000W 48 V hybrid pure sine wave inverter combines a 5,000 W inverter, an 80 A MPPT solar controller and a 60 A smart mains charger in one UPS-capable portable unit for off-grid, backup and mobile applications, providing reliable power during frequent outages.

• 5,000 W 48 V pure sine wave inverter: Converts DC to 230 V AC (220-240 V) mains — 5,000 W continuous; surge up to 10,000 VA for motor starts.
• Inbuilt 80 A MPPT solar charge controller: Regulates solar input to the batteries with full safety protections and up to 98% MPPT efficiency; maximum solar input power 4,000 W, maximum open-circuit solar input voltage 145 V, MPPT operating voltage range suited to large arrays.
• Enhanced 60 A smart battery charger: Enables safe, efficient unattended charging of a 48 V battery bank with multi-stage charging and selectable charging priority options (up to 60 A).
• Parallel and expansion: Can be connected in parallel with identical units for increased capacity and redundancy; settings may be synchronised or set separately.
• Intelligent control options: Output source priority, battery charging priority and a wide range of highly customisable settings for precise system control.
• Illuminated LCD and controls: Displays status and mode, input/output voltage, frequency, battery voltage, load power and charging current; adjustable via up/down keys.

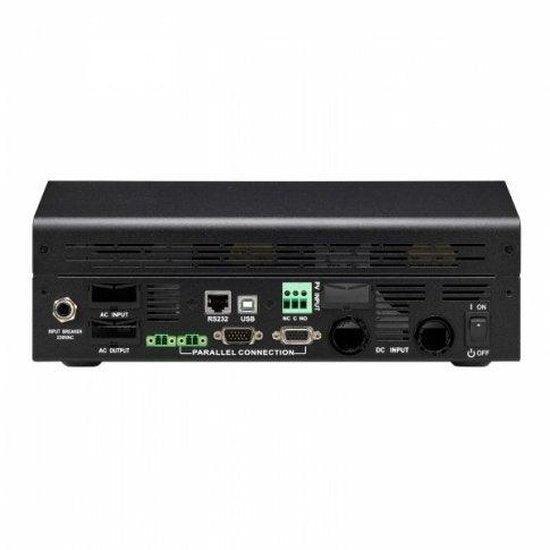

• Advanced communication and protection: Supplied with a PC connection cable and PC software CD for monitoring (solar/battery/AC voltage, charging current, battery capacity, etc.); features auto restart after overload/overheat, generator auto-start via dry contacts and predictive fan logic for intelligent cooling.
• Compatibility & specifications: Suitable for 48 V flooded and sealed GEL/AGM lead-acid batteries. Nominal battery voltage: 48 V. Continuous power output: 5,000 W / 5,000 VA (220-240 V AC). Surge power: 10,000 VA. Output frequency: 50/60 Hz. Output waveform: Pure sine wave. Maximum solar input power: 4,000 W. Maximum open-circuit solar input voltage: 145 V.

Please refer to the product datasheet and the table of typical appliance consumption for installation guidance and detailed performance figures; consult a qualified installer for battery type selection and wiring to meet marine or off-grid regulations.
