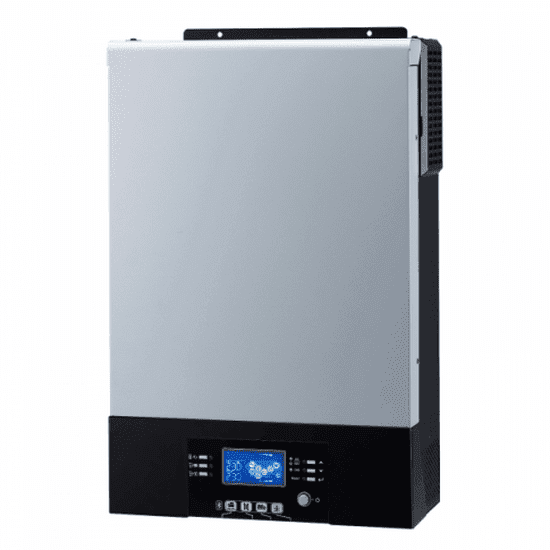

ICONICA 5000W 48V Hybrid Pure Sine Inverter with 80A MPPT | 4Boats

The ICONICA 5000 W 48 V hybrid pure sine inverter combines a 5000 W inverter, an 80 A MPPT solar controller and a 100 A mains battery charger in one compact unit with Bluetooth and parallel capability. No battery required to run AC loads directly from solar.

• Inverter: 5000 W continuous (5000 VA) nominal output; surge capacity up to 10,000 VA. Nominal AC output: 220–240 V (230 V default). Output frequency: 50/60 Hz (selectable). Output waveform: pure sine wave. Nominal battery voltage: 48 V.
• MPPT solar charge controller: maximum solar charge current 80 A (MPPT) to regulate panel input and charge the battery bank efficiently.
• Enhanced smart battery charger: up to 100 A mains battery charging with multi-stage charging algorithms for safe, fast and unattended charging.

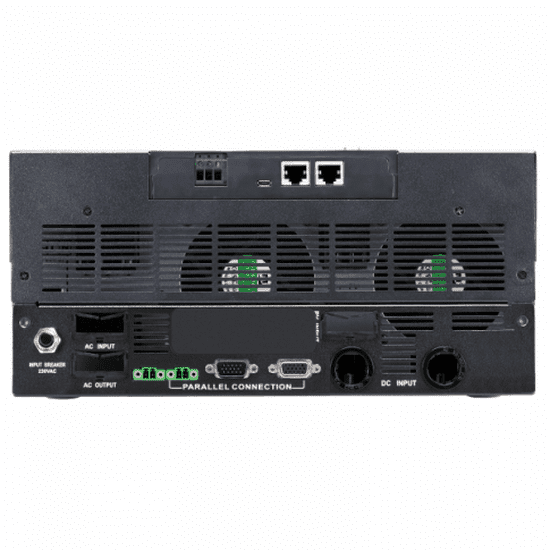

• Parallel capability: can be connected in parallel with additional units to increase output and provide redundancy; consult the manual for maximum recommended units and parallel configuration details.
• Bluetooth connectivity: integrated Bluetooth for remote monitoring and configuration from a phone or tablet.
• Direct solar operation: can power AC loads directly from solar panels without a battery when conditions allow; selectable output source priority and multiple battery charging priority options.
• Customisable settings & illuminated removable LCD screen: change parameters and view status, mode, input/output voltage, frequency, battery voltage, charging current, battery capacity and load power using the screen and navigation keys.
• Advanced communications & protection: supplied with PC connection cable and software for detailed data logging; auto-restart on fault recovery, generator auto-start via dry contacts, intelligent cooling with predictive fan logic, overload and overtemperature protection.
• Battery compatibility: suitable for 48 V flooded, GEL and AGM lead‑acid battery types. Battery not included; follow manufacturer guidance for battery sizing and installation by a qualified technician.

Suitable for remote properties, off‑grid boats and mobile installations. Always follow the user manual and local regulations when installing and operating this equipment.
