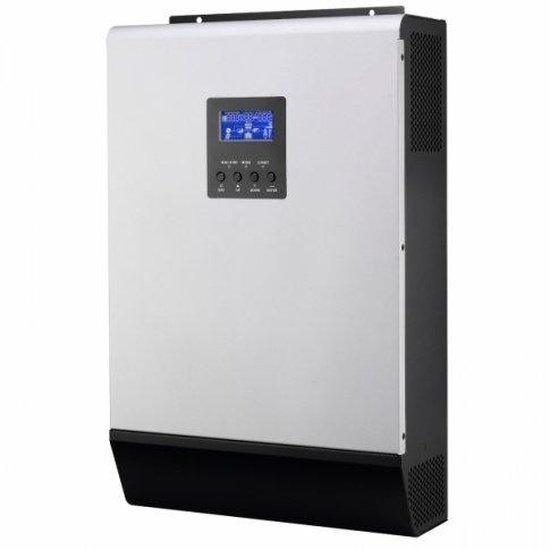

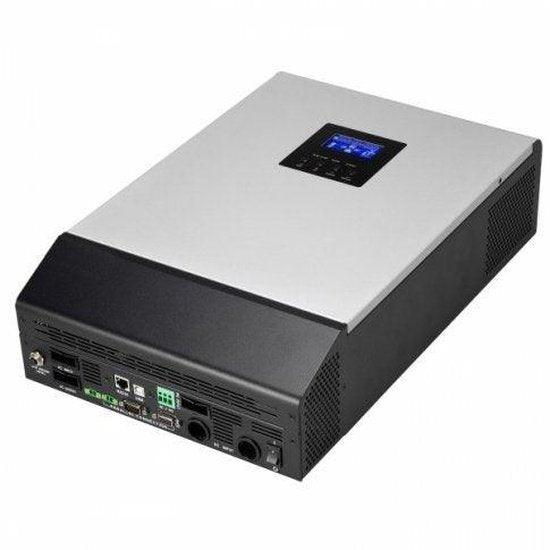

Iconica 5000W 48V Hybrid Pure Sine Wave Inverter | 4Boats

Compact hybrid inverter combining a 5.0 kW (5,000 W) pure sine inverter, 6.0 kW solar MPPT and a 100 A smart charger in one 48 V unit with parallel capability.

• 5000W 48 V pure sine wave inverter: Converts DC into 230 V AC mains; continuous 5.0 kW (5,000 W / 5,000 VA) with 10.0 kVA (10,000 VA) surge; output frequency 50/60 Hz; pure sine waveform.
• Inbuilt 6,000 W high solar‑input MPPT solar charge controller: Regulates solar panel input and charges batteries at up to 80 A for efficient solar harvesting.
• Enhanced 100 A smart battery charger: Designed for safe, efficient and fast unattended charging (multi‑stage), with selectable battery charging priority options.
• System expansion potential: Parallel capability allows connection with additional identical inverters for greater capacity and redundancy.
• Load power without a battery: Ability to power AC loads directly from solar (no battery required) plus Uninterrupted Power Supply (UPS) functionality for backup during outages.
• Output source priority and battery charging priority: User‑configurable source preferences (solar/AC/battery) and multiple charging priority modes to suit installation needs.
• Highly customisable settings & illuminated LCD: Parameters adjustable via up/down keys; display shows status/mode, input/output voltages, frequency, battery voltage, load power, charging current, battery capacity and related data.
• Advanced communications & intelligent features: Supplied with PC connection cable and software; auto‑restart after overload/overheat; generator auto‑start via dry contacts; predictive intelligent cooling fan logic for thermal management.
• Compatibility & specifications: Nominal battery voltage 48 V; suitable for 48 V flooded and sealed GEL/AGM lead‑acid batteries; ideal for off‑grid, marine and backup power applications (see product details for appliance consumption table).

For safe operation and warranty compliance have installation and battery selection carried out by a qualified electrician; refer to the full technical data sheet for wiring diagrams and detailed specifications.
